Coil Bolts have self-cleaning threads designed to match Coil Threaded Inserts, Coil Nuts, and to be used in associative applications. Coil Bolts can be reused but will wear and should be maintained and inspected in-between and before uses to ensure safety.
Kyle Herman
Amifast Electrical and Construction Sales Manager
+1-512-817-6795 (mobile)
+1-512-778-6577 (office)
email
| Part Number | Safe Working Load | Safety Factor | Head Diameter (in.) | Overall Length | Diameter (in.) | Threads (in.) | Finish | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_safe-working-load | hf:att:pa_overall-length | hf:att:pa_ult-mech-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

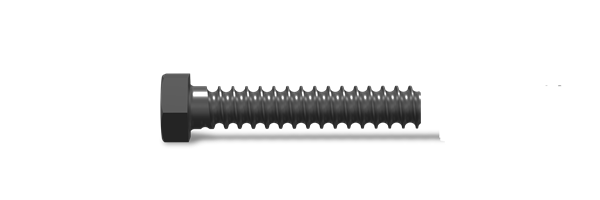

| CB12112P | 1650 | 5:1 | 3/4 | 1-1/2 | 1/2 | 6 | Plain | 8250 | .11 lbs | 500 | $0.49 | 1650 | 1-1-2 | 8250 | |

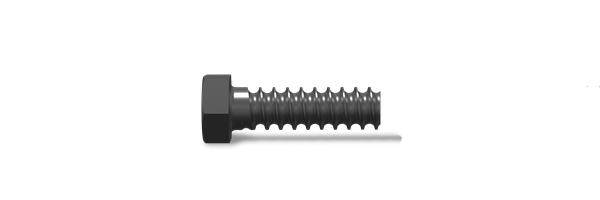

| CB122P | 1650 | 5:1 | 3/4 | 2 | 1/2 | 6 | Plain | 8250 | .13 lbs | 500 | $0.55 | 1650 | 2 | 8250 | |
| CB12212P | 1650 | 5:1 | 3/4 | 2-1/2 | 1/2 | 6 | Plain | 8250 | .15 lbs | 400 | $0.00 | 1650 | 2-1-2 | 8250 | |
| CB123P | 1650 | 5:1 | 3/4 | 3 | 1/2 | 6 | Plain | 8250 | .18 lbs. | 400 | $0.73 | 1650 | 3 | 8250 | |
| CB12312P | 1650 | 5:1 | 3/4 | 3-1/2 | 1/2 | 6 | Plain | 8250 | .20 lbs | 250 | $0.91 | 1650 | 3-1-2 | 8250 | |
| CB124P | 1650 | 5:1 | 3/4 | 4 | 1/2 | 6 | Plain | 8250 | .22 lbs | 250 | $0.98 | 1650 | 4 | 8250 | |
| CB12412P | 1650 | 5:1 | 3/4 | 4-1/2 | 1/2 | 6 | Plain | 8250 | .24 lbs | 200 | $1.00 | 1650 | 4-1-2 | 8250 | |
| CB125P | 1650 | 5:1 | 3/4 | 5 | 1/2 | 6 | Plain | 8250 | .36 lbs | 200 | $1.18 | 1650 | 5 | 8250 | |
| CB126P | 1650 | 5:1 | 3/4 | 6 | 1/2 | 6 | Plain | 8250 | .31 lbs | 150 | $1.59 | 1650 | 6 | 8250 | |
| CB342P | 3600 | 5:1 | 1-1/8 | 2 | 3/4 | 4.5 | Plain | 18000 | .34 lbs | 150 | $1.57 | 3600 | 2 | 18000 | |
| CB34212P | 3600 | 5:1 | 1-1/8 | 2-1/2 | 3/4 | 4.5 | Plain | 18000 | .40 lbs | 150 | $1.69 | 3600 | 2-1-2 | 18000 | |
| CB343P | 3600 | 5:1 | 1-1/8 | 3 | 3/4 | 4.5 | Plain | 18000 | .44 lbs | 100 | $1.95 | 3600 | 3 | 18000 | |

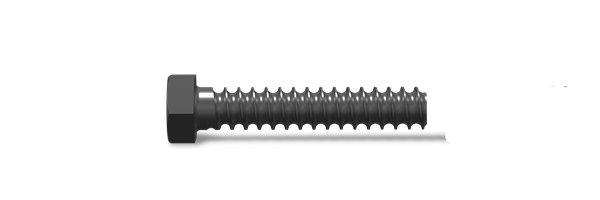

| CB344P | 3600 | 5:1 | 1-1/8 | 4 | 3/4 | 4.5 | Plain | 18000 | .55 lbs | 100 | $2.35 | 3600 | 4 | 18000 | |

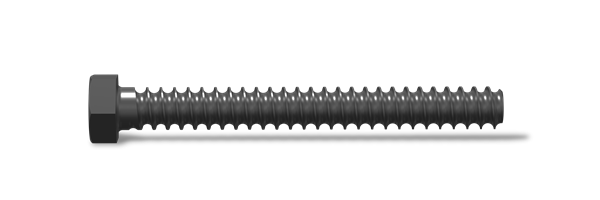

| CB346P | 3600 | 5:1 | 1-1/8 | 6 | 3/4 | 4.5 | Plain | 36000 | .75 lbs | 100 | $2.99 | 3600 | 6 | 36000 | |
| CB14P | 7200 | 5:1 | 1-1/2 | 4 | 1 | 3.5 | Plain | 36000 | 1.03 lbs | 40 | $5.98 | 7200 | 4 | 36000 | |
| CB16P | 7200 | 5:1 | 1-1/2 | 6 | 1 | 3.5 | Plain | 36000 | 1.40 lbs | 40 | $6.98 | 7200 | 6 | 36000 |
