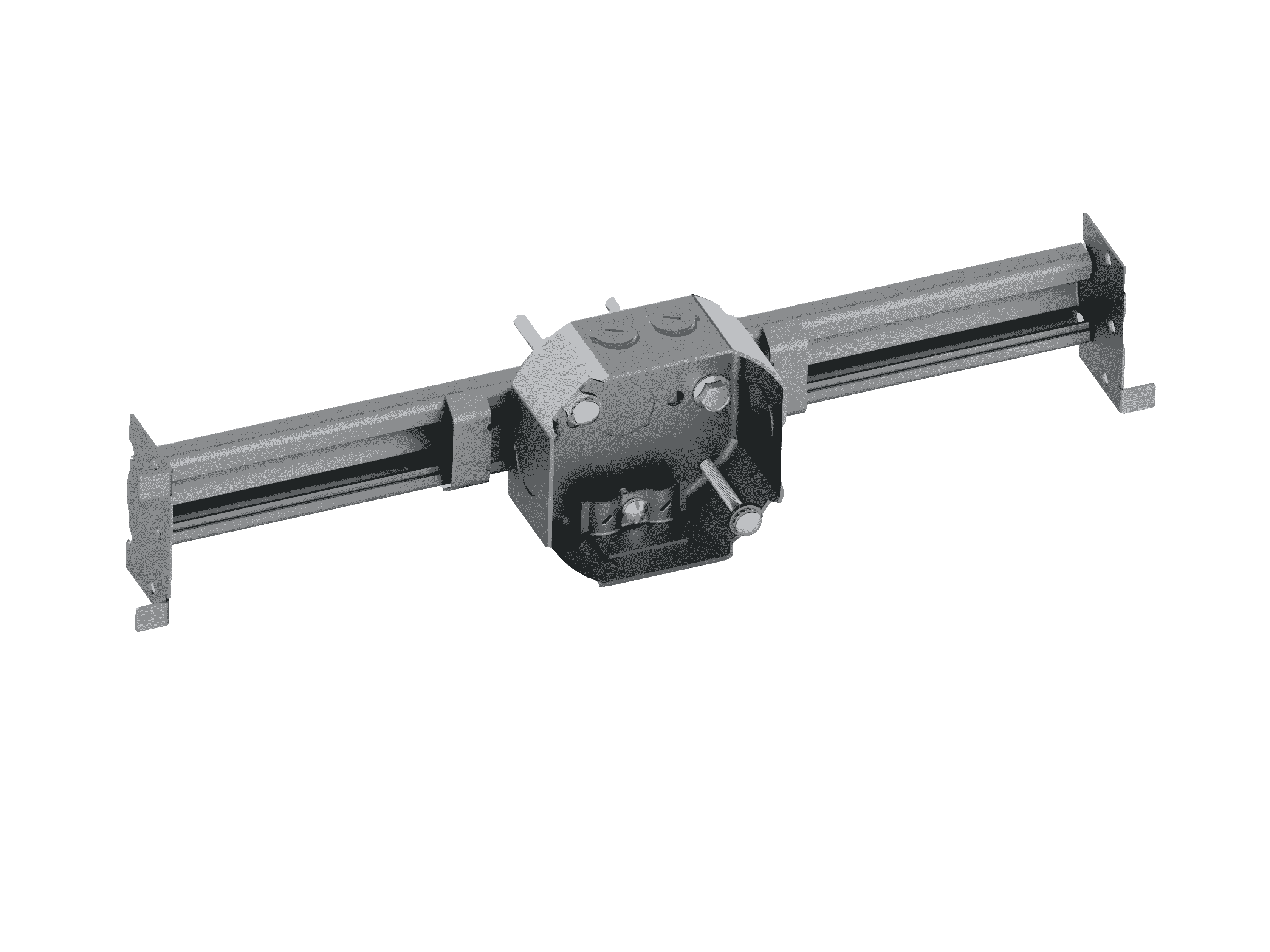

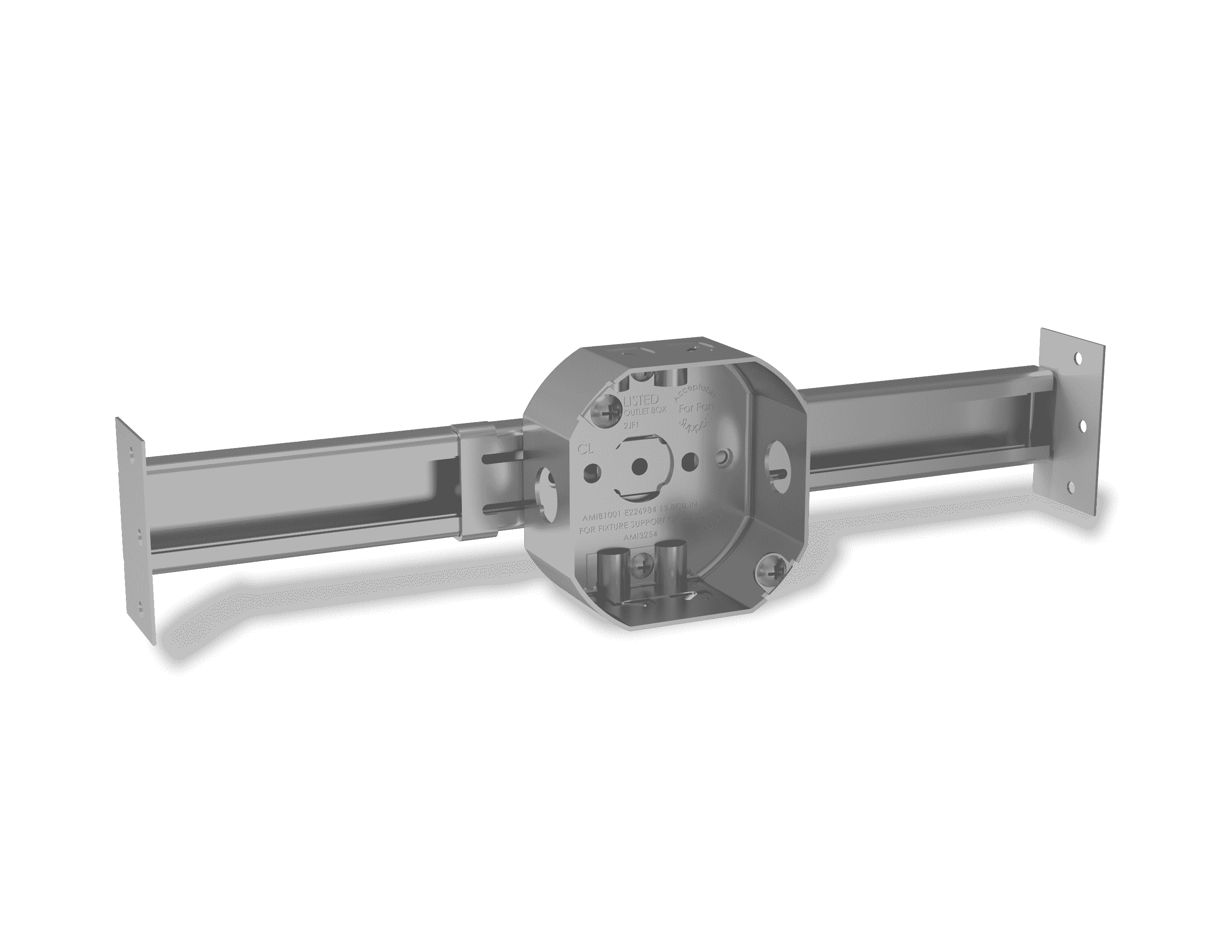

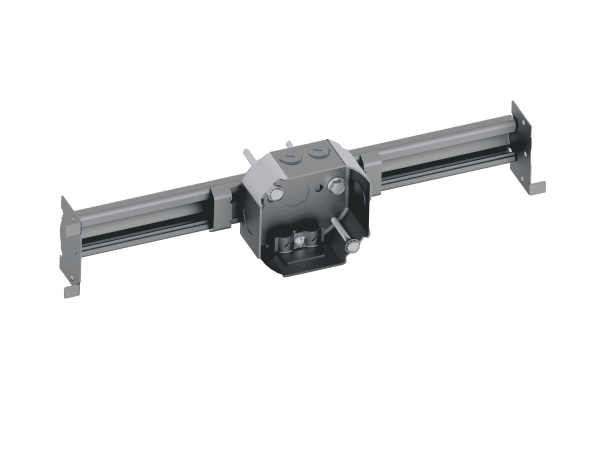

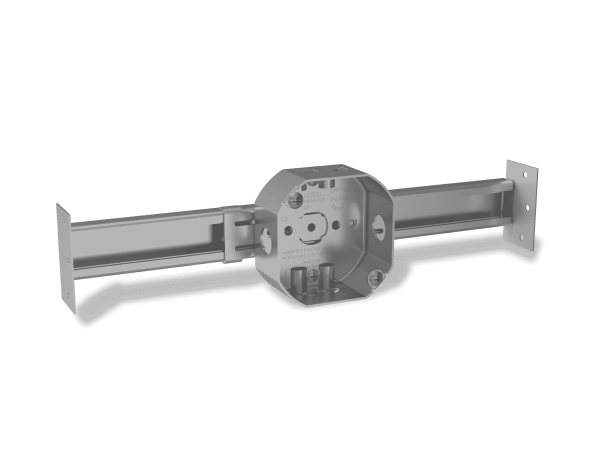

This new construction ceiling fan brace with a 1-1/2 in. box allows you to safely install your ceiling fan or lighting fixture. Ideal for installation during new construction or in locations with attic access, this bar is compatible with all ceiling fans. The ceiling fan brace is designed for engineered truss application. The bar’s end bracket has adhesive strips for easy positioning and its square tube adds strength to the design. For added ease, the electrical box can be positioned anywhere on the bar to fit your project needs. It works with existing ceiling joists between 16 in. and 24 in. wide. The bar is UL listed to support light fixtures up to 110 lbs. on 16 in. centers and 50 lbs. on 24 in. centers. It supports fans up to 70 lbs on 16 in. centers and 30 lbs on 24 in. centers. The ceiling fan brace comes with everything you need for installation, including easy following instructions.
- 1/2″ Knockouts (2)
- Certifications/Listings: UL Listed
- Finish: Zinc-Plated
- Loom Knockouts (2)
- Material: Steel
- Weight Capacity (Light Fixture/Ceiling Fan) – 16″ Centers – 70lbs/110 lbs
- Weight Capacity (Light Fixture/Ceiling Fan) – 24″ Centers – 30 lbs/50lbs
- Item Weight: 1.68 lbs per ea.
