Our Cage Expanders produce the roundest cage bells in the industry. The secret lies in the design of our shoes. The fingers remain interlocked during the entire expansion process, which means they stay engaged with the mesh. Additional features include friction reducing synthetic slide bearings on the back of the shoe plates, and machining of moving components.

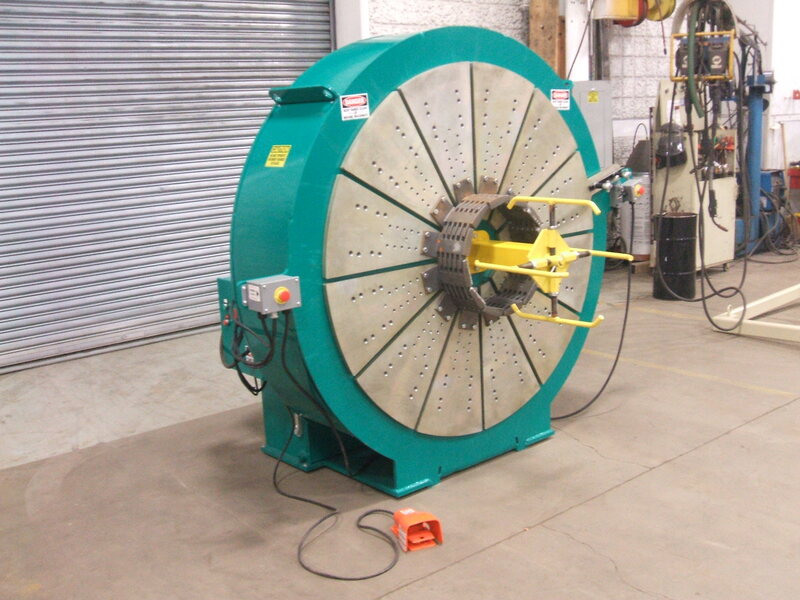

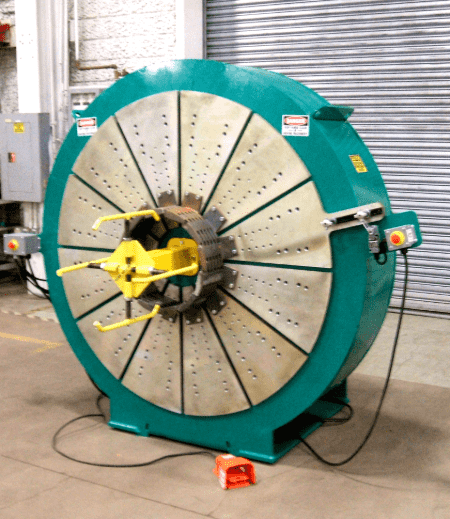

Cage Expander
Standard Features
- 48″ with Pipe Sizes 12″ to 48″ and maximum stroke length 7″
- Simple operation with precision results for wire mesh cage rolling. Ideal for arch, elliptical round and standard round cages.
- Interlocking fingers on shoes to eliminate flat spots
- Quiet operation
- Foot controls
- Maintenance-free bearing surfaces
- Horizontal operation
- Adjustable stroke limiters
- Dual emergency stops
- Compact
Facility Power Requirements
7.5 hp
30 Amps @ 230 VAC 3 Phase
20 Amps @ 460 VAC 3 Phase
15 Amps @ 575 VAC 3 Phase
(Voltage to be specified at time of order)
Operational Features and Benefits

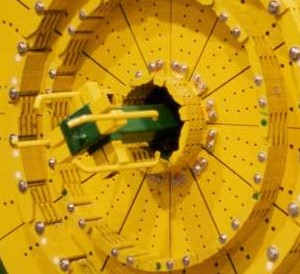

Interlocking Shoes
Flat spots are eliminated through the use of curved shoe segments with interlocking fingers.

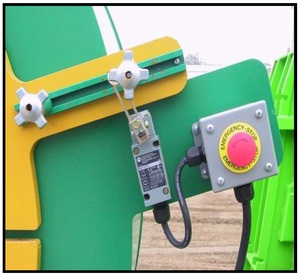

Easy Set-Up
Changeover from one size to another is accomplished easily with adjustable thumbwheel stops.

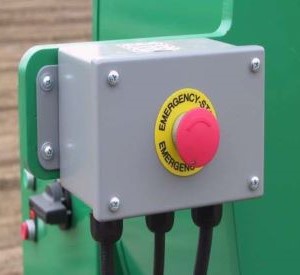

Emergency Stops
Placed in key areas of operation.
