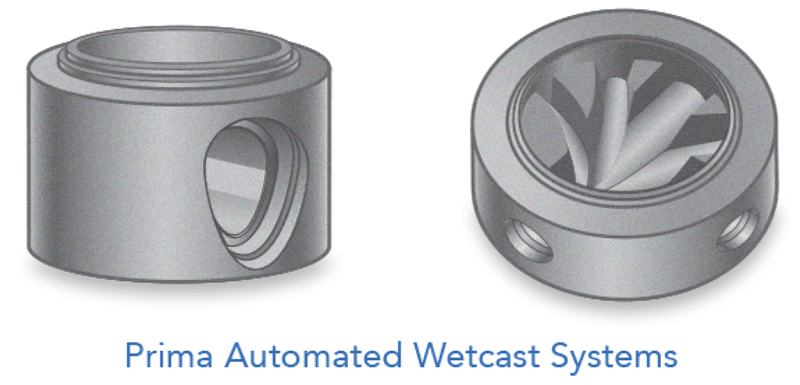

Prima Monolithic Manhole base system

More than just machines, Afinitas’ Prima monolithic manhole base solutions integrate technology from the HawkeyePedershaab Smartcast and the BFS Capitan manhole base systems to provide one-of-a kind production systems for the creation of wetcast manhole base sections and other specialty concrete products. Unique to Prima is that you choose the milling device that best fits your needs.Whether it is our HawkeyePedershaab Smartcast Kuka robotic milling, or the BFS Capitan CNC multi-axis milling device, or both, combined into one unit, you can produce limitless channel flow designs.

The challenge with traditional manhole base production is that it is slow, labor-intensive and error-prone. Prima removes those barriers with the world’s simplest and most flexible systems for the production of monolithic manhole bases.

            • Trusted technology from HawkeyePedershaab Smartcast and BFS Capitan
            • Choose the milling system you require, robotic, CNC multi-axis milling, or both
            • Purchase EPS blanks from your preferred supplier
            • Readily available worldwide technical assistance
            • Transform your wetcast production with the integration of our Prima Wetcast Automation System


A system using CNC multi-axis milling can output  30+ pieces in one shift and up to 15 pieces using the robotic milling device (depending on the product parameters).

  • Nominal diameter 600 – 2000mm 24-80″)
  • Vertical drop up to 90M (3′)


  • Prima Hybrid  (robotic milling arm and CNC multi-axis milling capabilities)
  • Prima Robotic arm milling
  • Prima CNC multi-axis milling

Prima Base Key Advantages

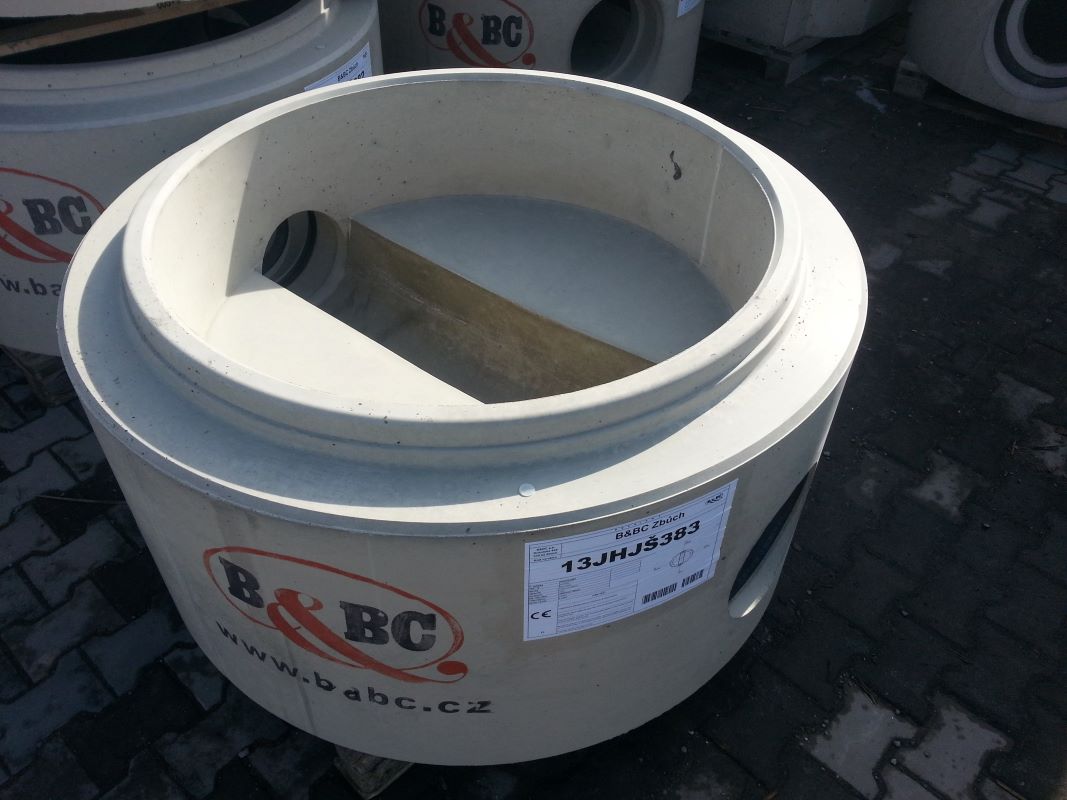

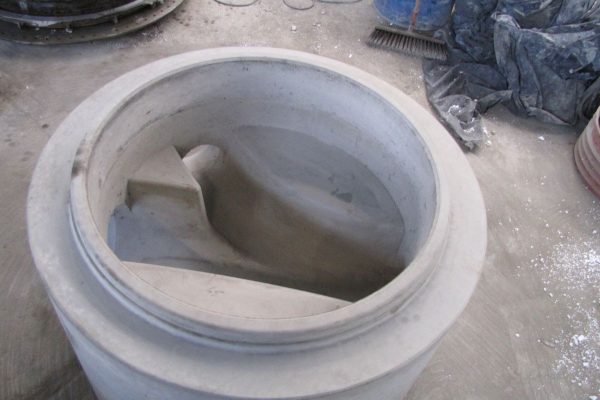

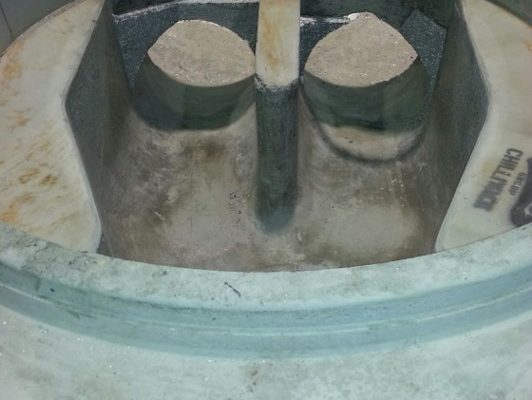

Smartcast manhole base

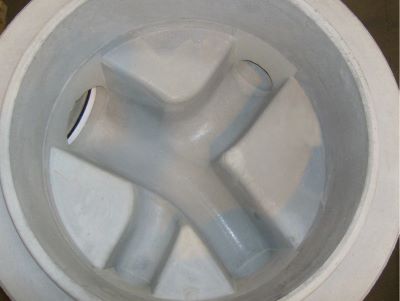

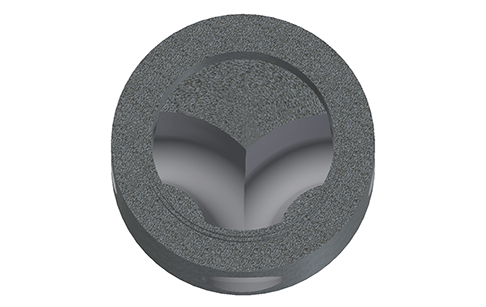

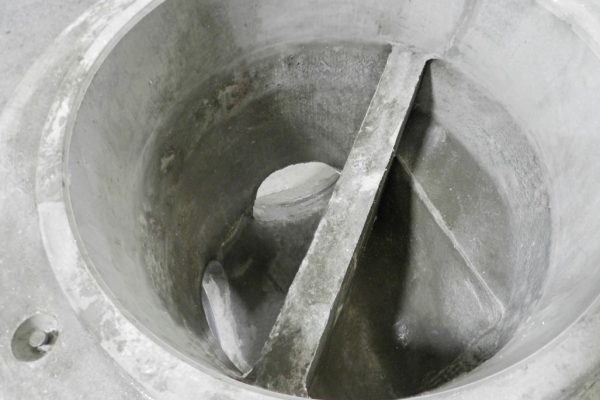

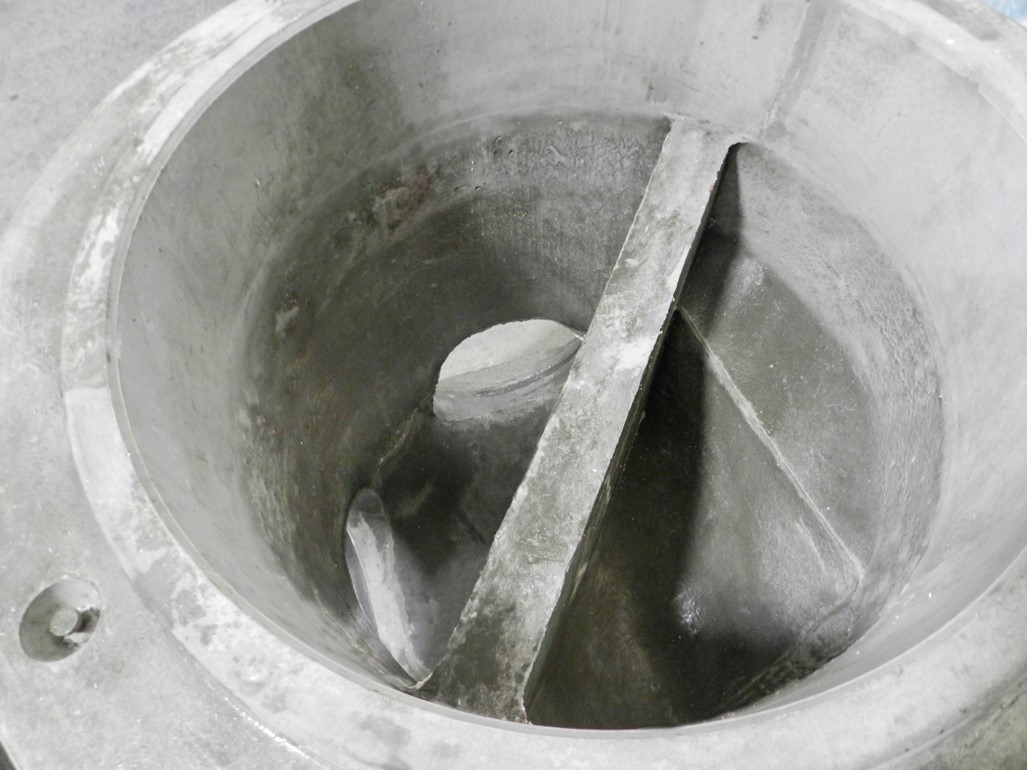

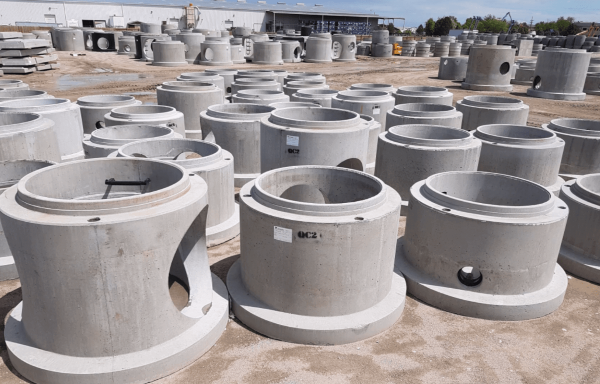

The Manhole Channel Configuration Challenge

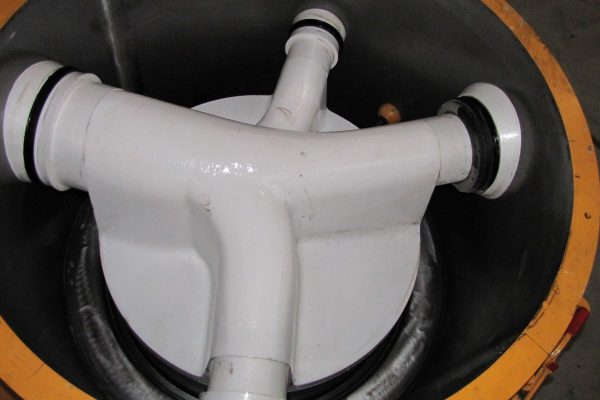

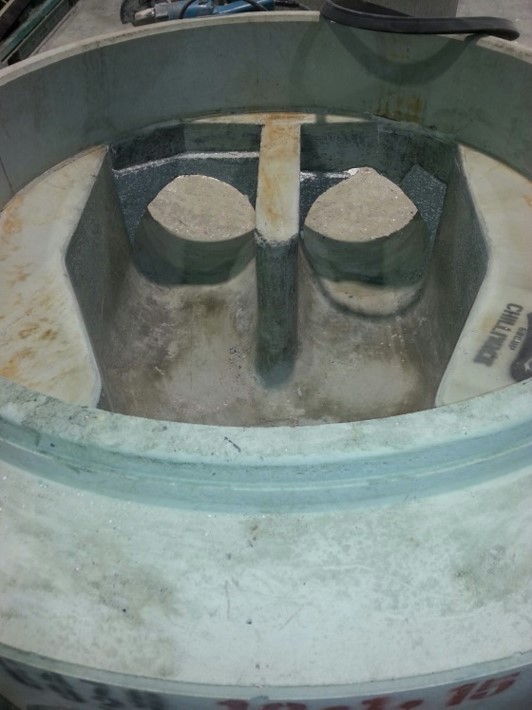

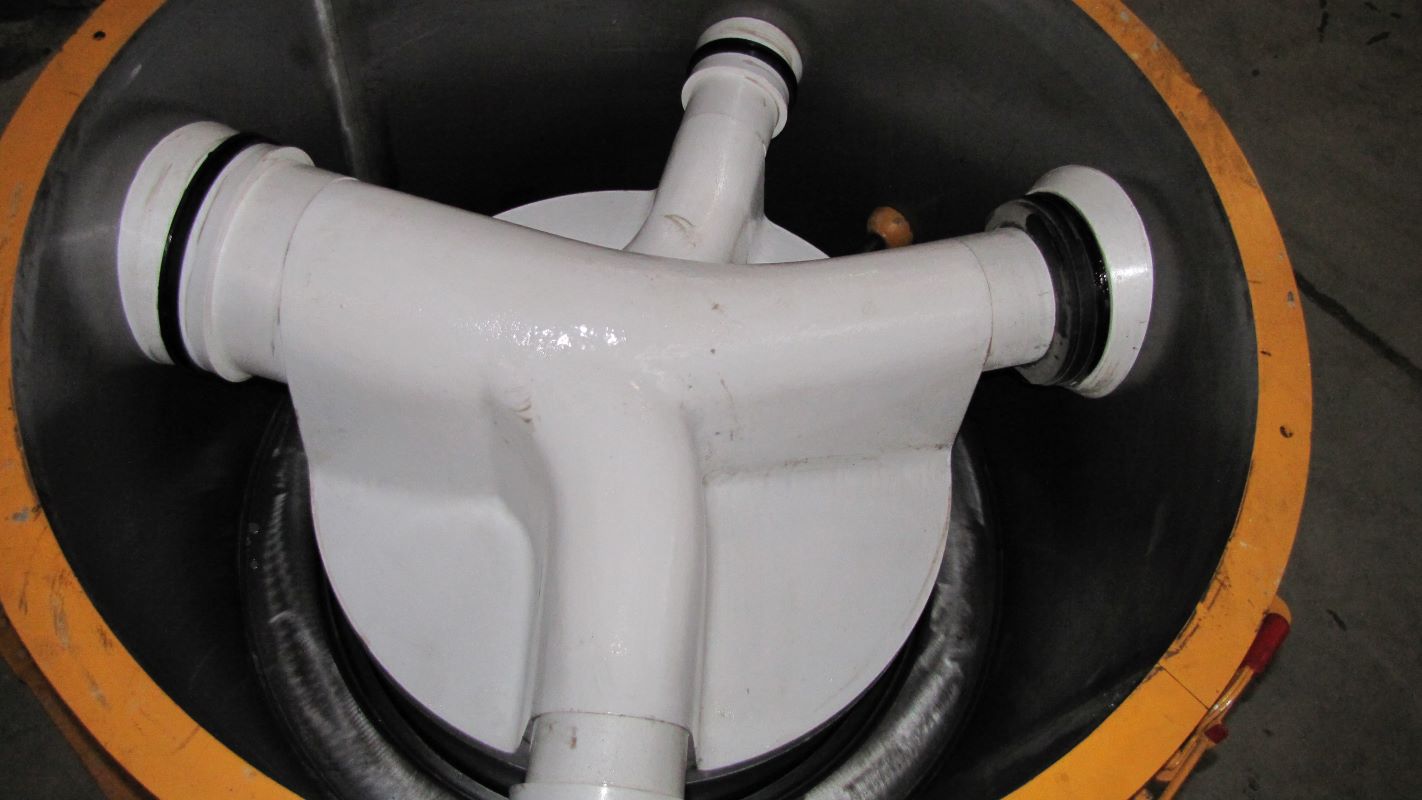

A base section – or a manhole base – is the bottom part of an inspection chamber. It has the purpose of allowing inspection and maintenance of a pipe line – in particular at points where more pipe lines are jointed. The consequence of this is that manhole bases are needed in many different configurations as the different connecting pipe lines often are of different sizes, different materials, varying gradients and invert levels. The challenge with many inspection chambers is therefore to form all the individual channels in the manhole bases, so that each pipe line has an unobstructed flow through the manhole minimizing the risk for build-up of solids. Traditionally, the forming of the manhole flow channels has been done manually by making a concrete benching on site, a very time-consuming, labor intensive and difficult job.

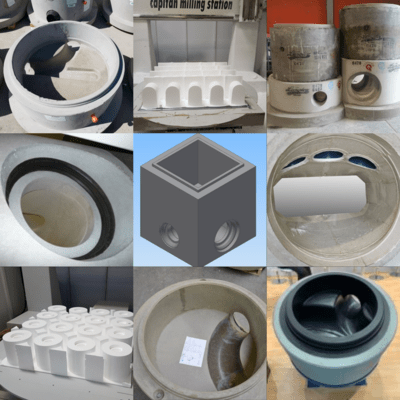

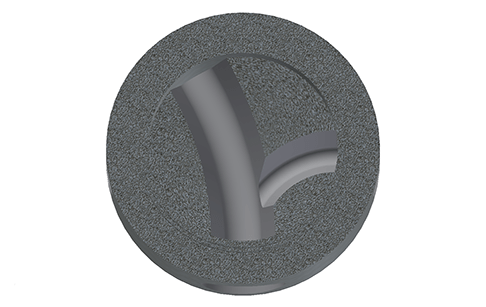

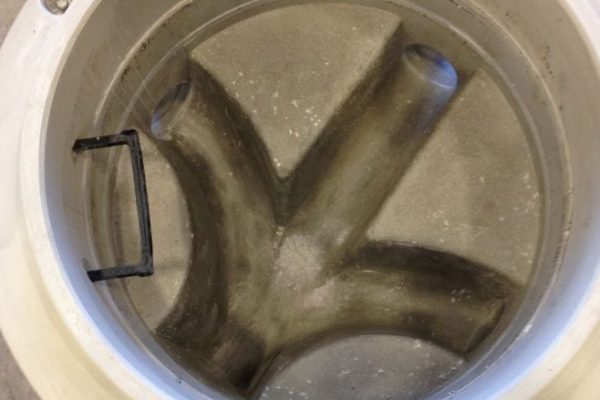

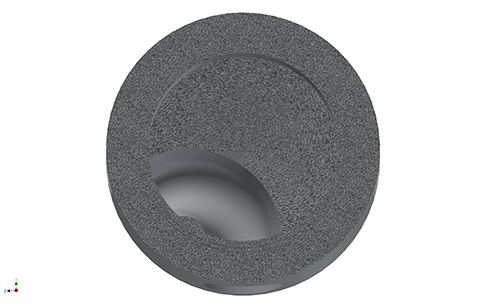

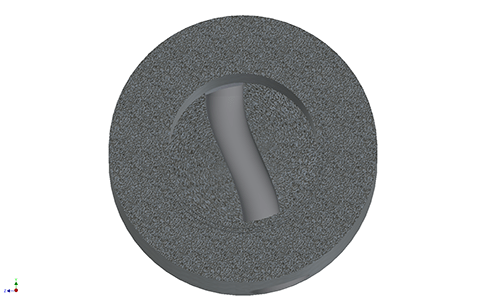

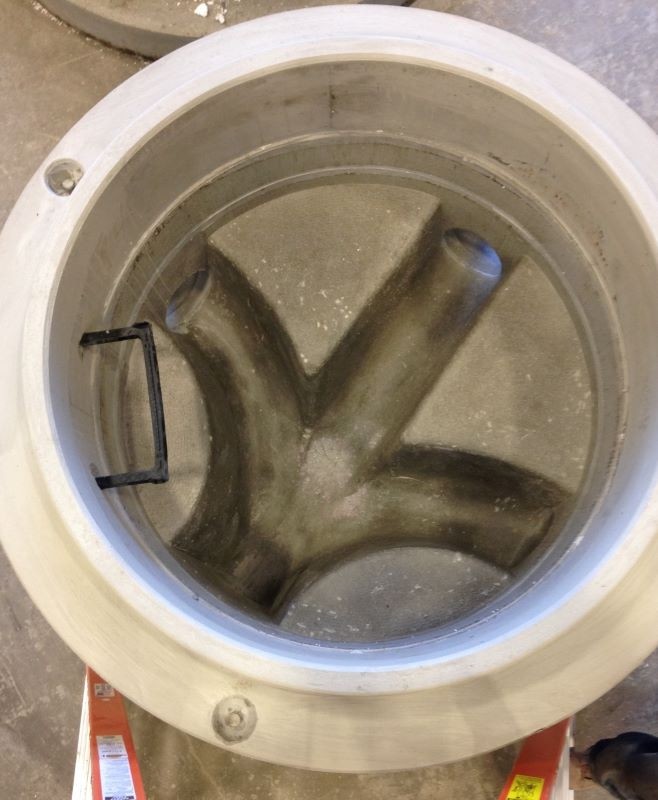

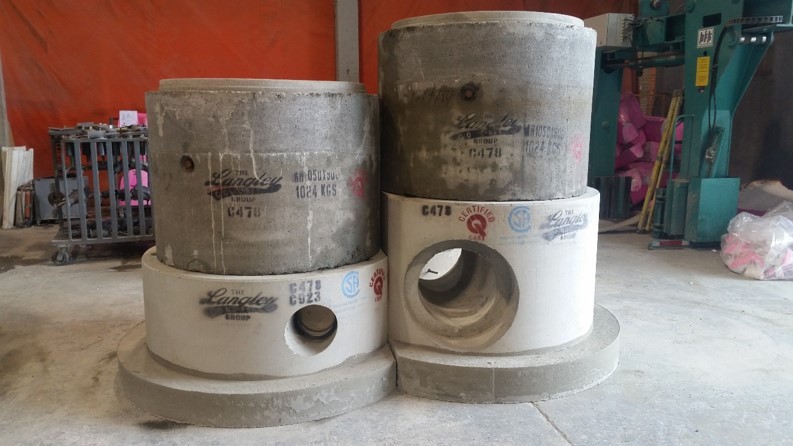

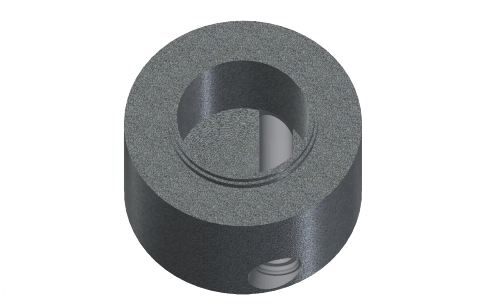

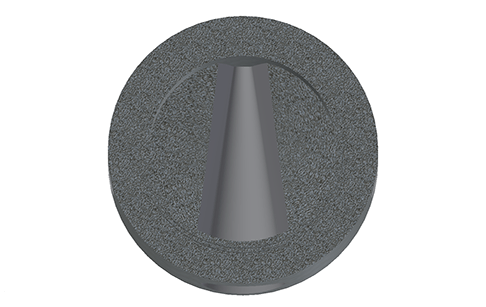

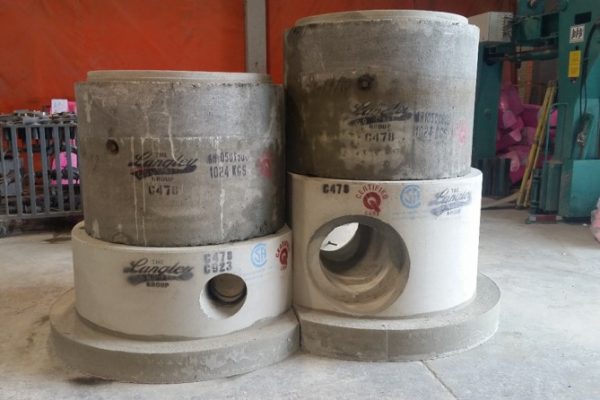

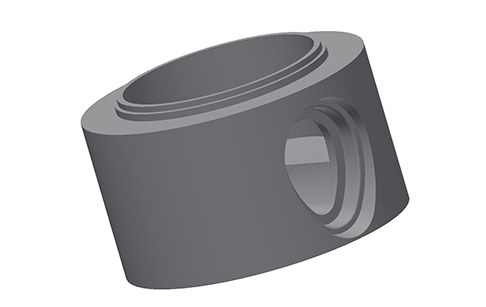

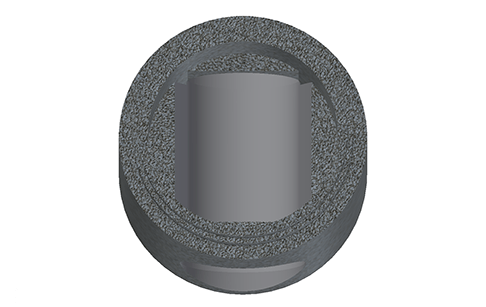

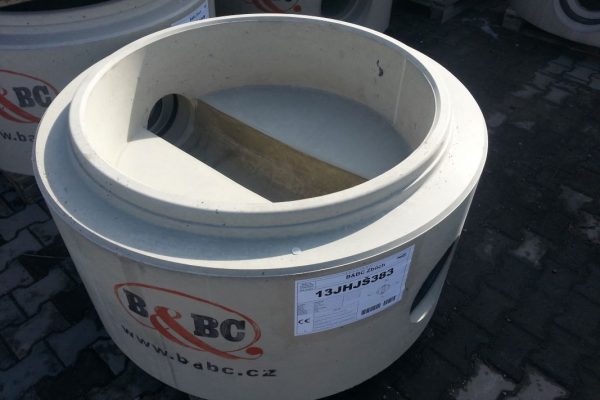

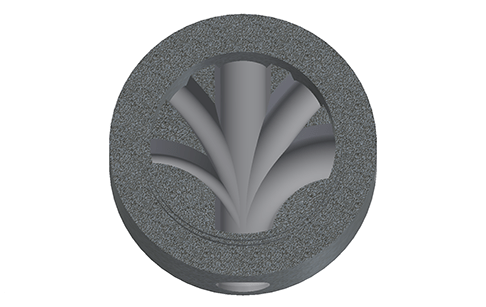

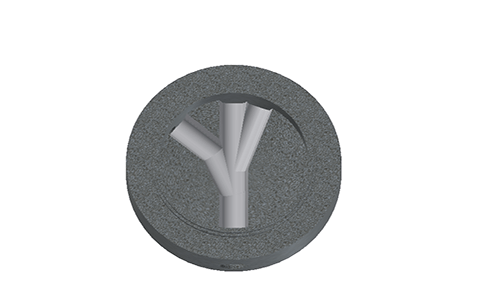

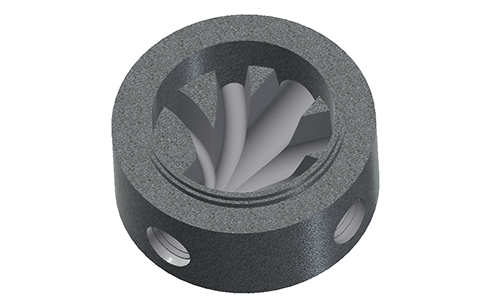

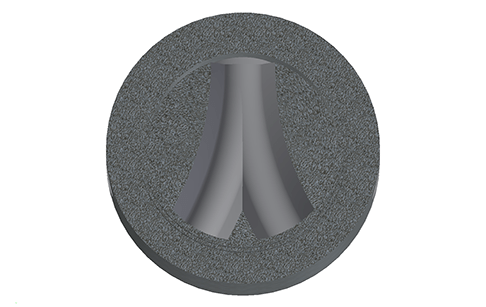

Flow Channel options

The Prima Base Solution

The Prima monolithic manhole base system replaces manual operations with an intelligent, digital configurator that is simple to use and provides unlimited flexibility to meet specific product needs with the highest quality.

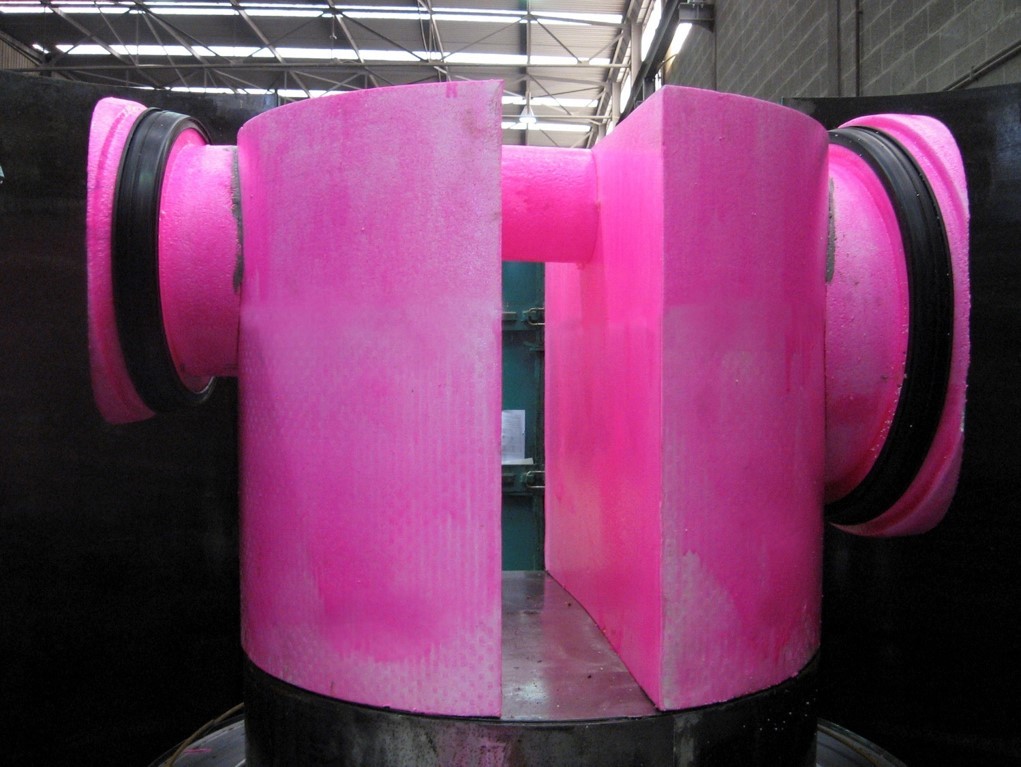

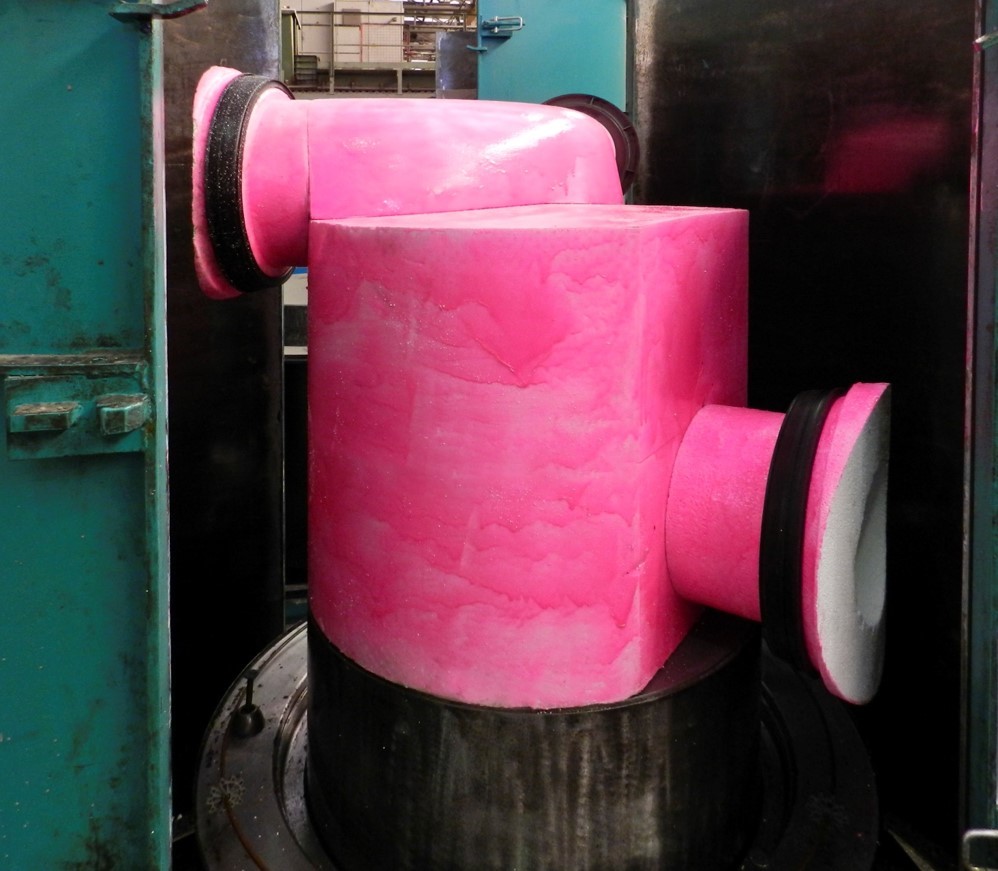

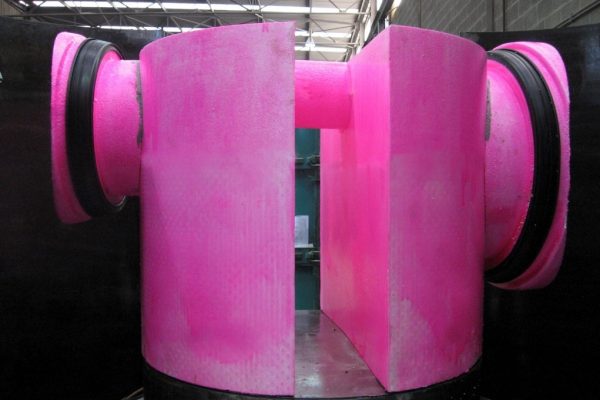

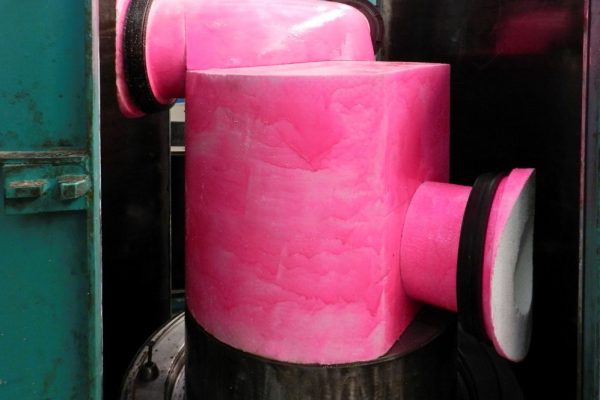

Once the key variables are entered into the Prima product configurator, the system mills channel-forming molds out of a single piece of industry-standard EPS (Expanded Polystyrene) using either a programmable industrial robot (for highly specialized projects) or a CNC multi-axis milling unit for higher output projects. There is no need to tape, glue and screw or use proprietary-shaped foam sections. The user-friendly computer interface creates the world’s easiest system for manufacturing monolithic manhole bases of the highest quality.

The Prima system can be used as a simple, stand-alone EPS milling station or integrated into our Prima automated production system featuring specialized, assembly-line style workstations for filling, de-molding and handling.

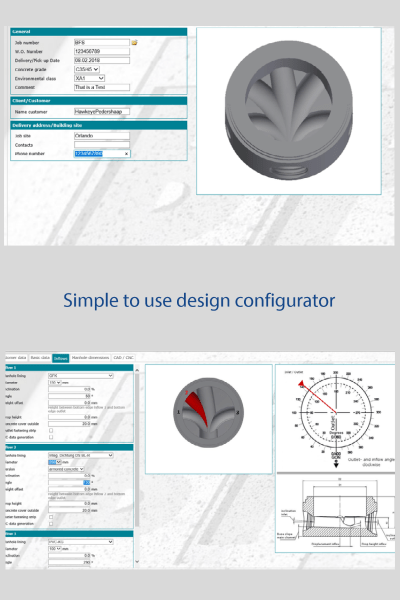

Capitan design configurator

Intuitive Design Software

The manhole base design is created automatically after entering parameters including, the number of inlets, the diameter and orientation of inlets, the height (invert level) of the inlets, the amount of fall in the flow channels, the type of connection, the angle of the banquette, etc. It is all done through a user-friendly, interface that is available on your local server or a web server (your choice). Prima can be run as a stand-alone system or integrated into your company’s existing ERP system. The web-based option allows manhole bases to be designed from any computer station ( PC, laptop, tablet or  Smartphone), at work or remotely. After the manhole base has been designed, a full manufacturing drawing can be downloaded immediately. Once approved the manhole base design is released for production with a single click.

    • International language capabilities
    • Connects to almost any ERP and can create a project workflow and associated paperwork (purchase orders, change orders, datasheets, etc.) within the system
    • Calendar feature for scheduling and/or rescheduling work
    • Barcoding can be added to datasheets
    • Can also configure square manholes
    • All channel settings can be saved as favorites for reuse
    • Special configurators can be created to do very complex or unusual pieces
    • Stacking software also available

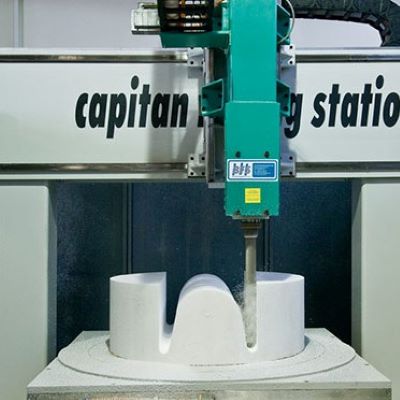

BFS Capitan CNC Milling device

Precise and Productive Milling – BFS Capitan Technology

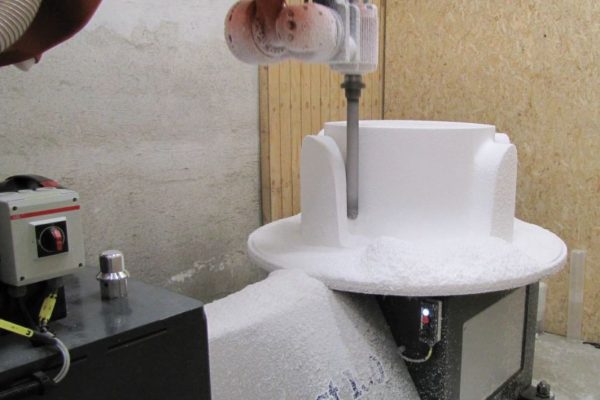

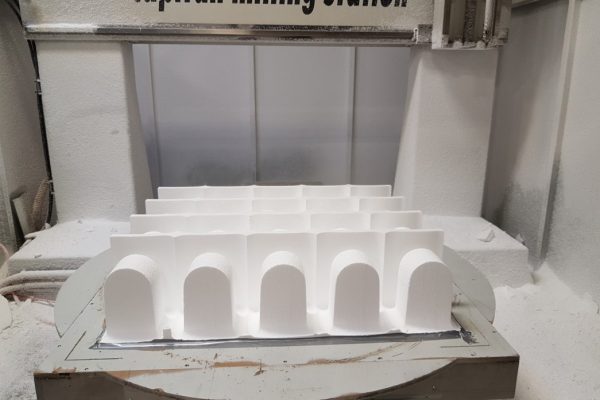

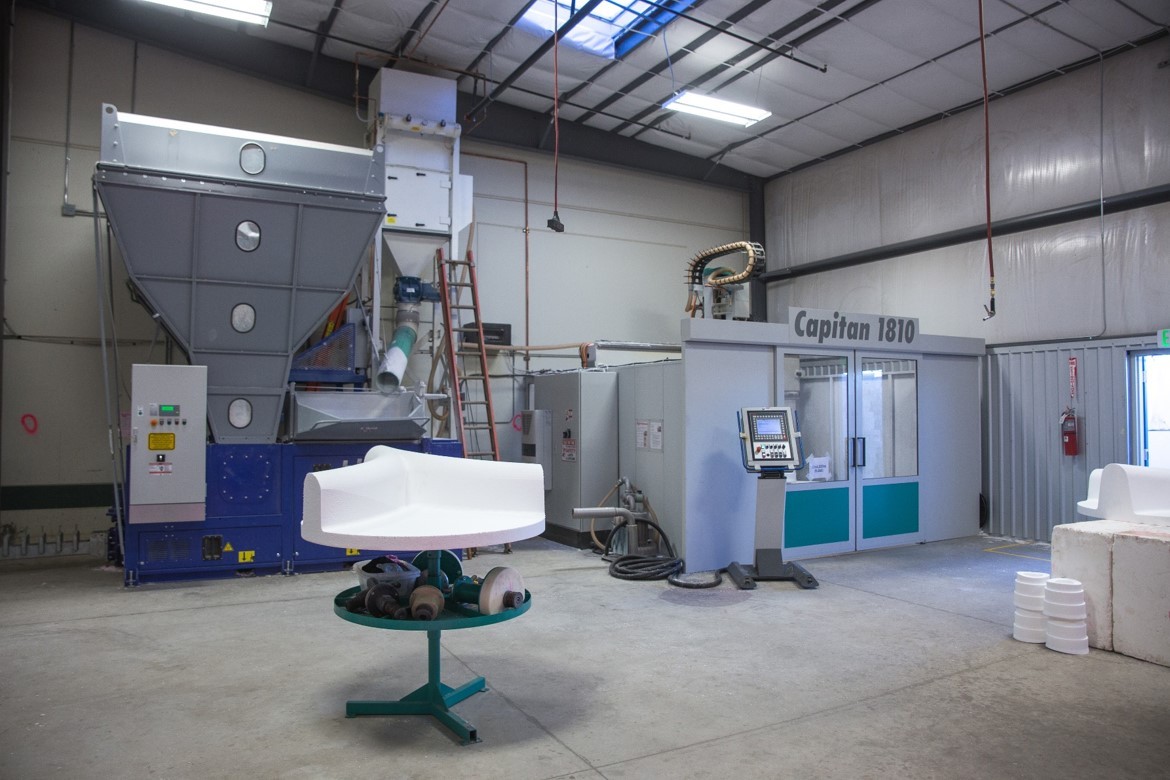

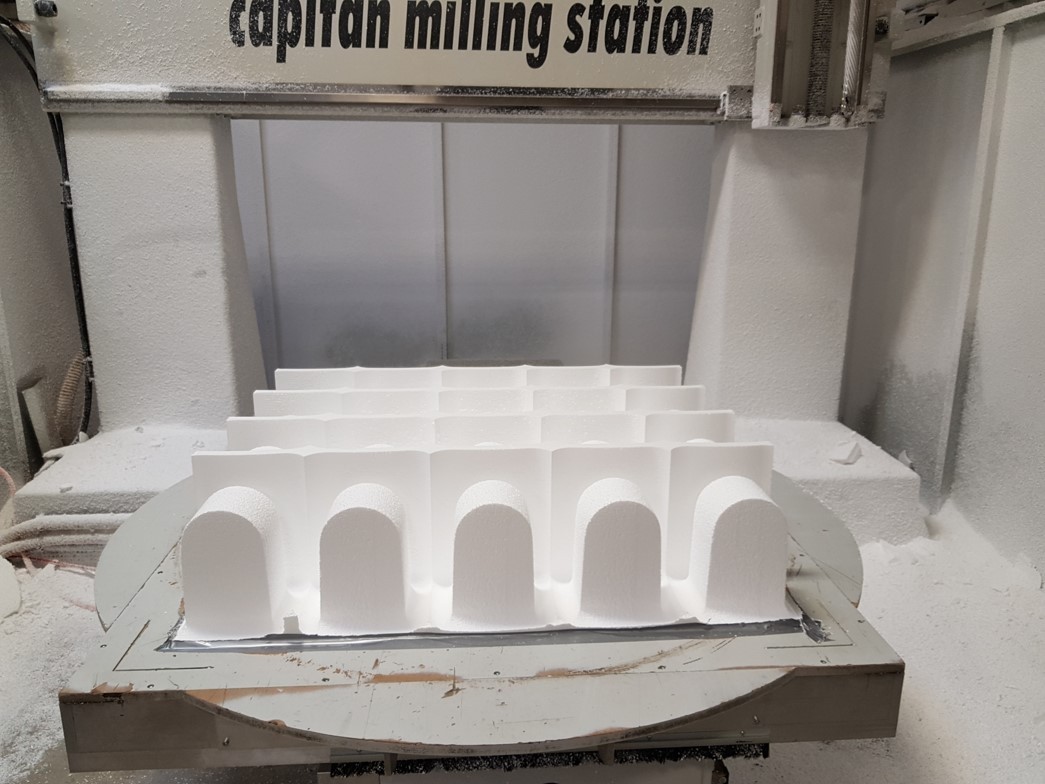

The BFS Capitan CNC multi-axis milling center option creates precise channel negatives as well as related recess cores. Approximately 30 complete channels can be produced by one operator in one shift. In addition one polystyrene core can be used for up to five casts. The complete automation of the milling process frees up the operator to work on the assembly of channels, also a simple process that is done without the need for tools.

  • Vacuum table fixes the polystyrene blocks

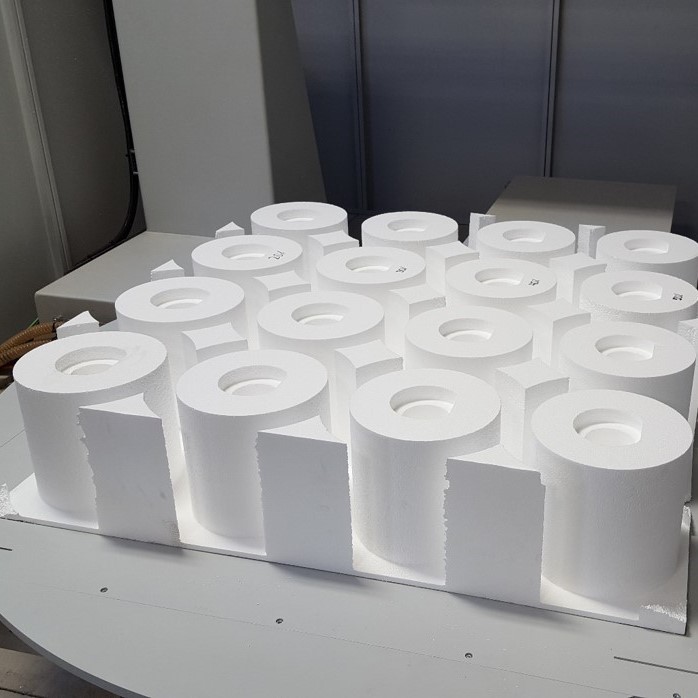

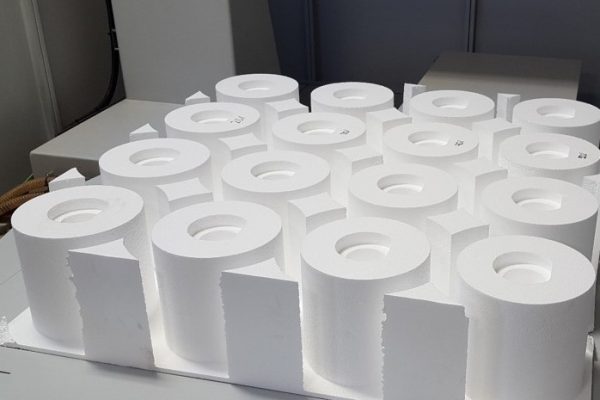

  • A pin clamps the hole former
  • Any bench angle can be milled independent of inner core angle
  • Polystyrene residuals are automatically suctioned away
  • Up to 30 products in 1 shift, 1 operator
Kuka Robotic arm

Advanced HawkeyePedershaab Smartcast Robotic Milling

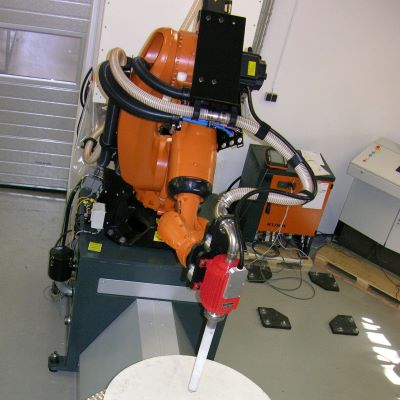

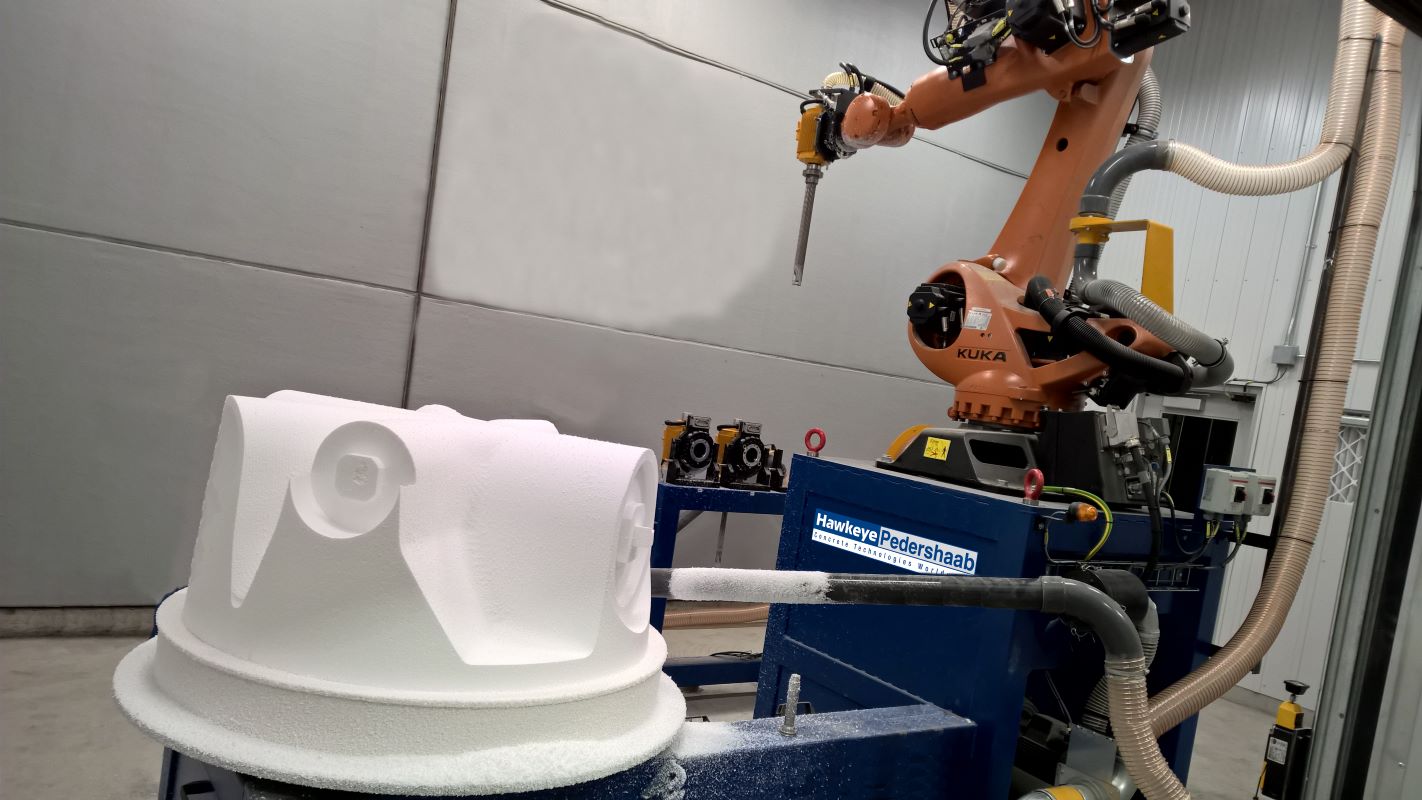

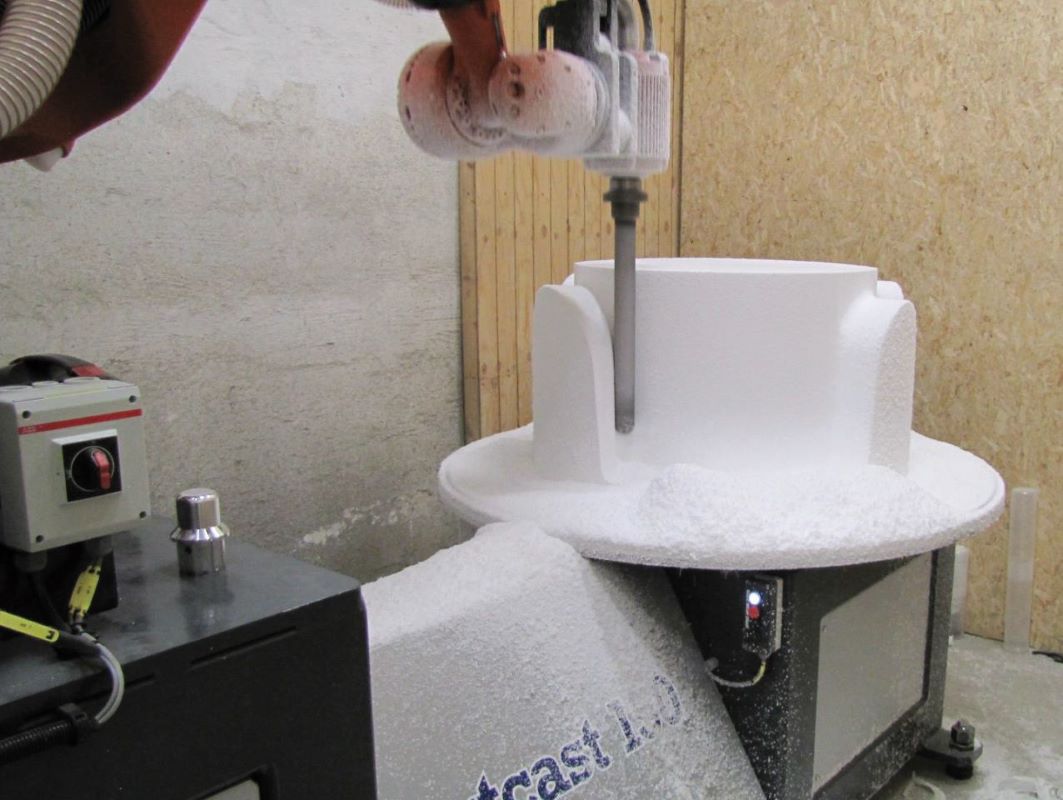

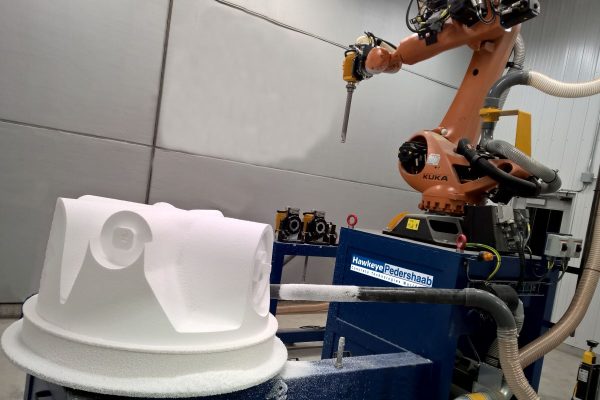

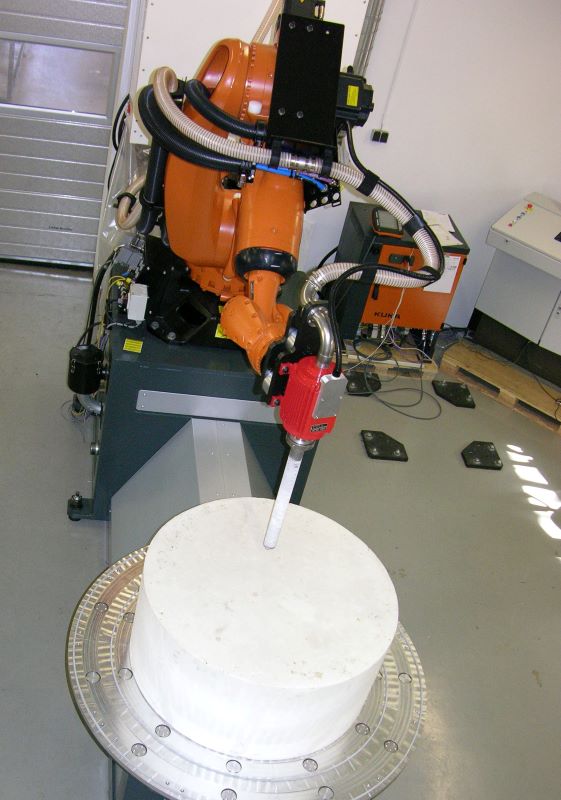

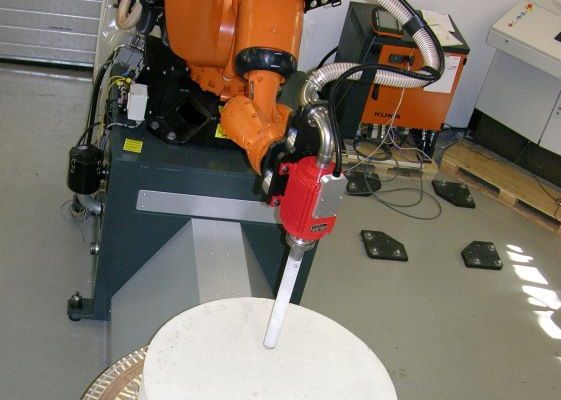

For those who prefer an even more advanced milling technique, the system can be equipped with Kuka robotic arm technology. This six-axis milling robot is outfitted with precision grinding head mills. Depending on the size of the manhole base and configuration of its flow channels, the robot is able to produce up to 15 EPS channel formers in one shift using one operator. The system is easy to set up and operates without supervision needed. Also included is a suction and bagging system to pick up polystyrene residue that can be recycled. In addition the robot can be supplied with standard robot programming software that allows the user to use the robot for other purposes when needed.

    • Six-axis robotic arm
    • High speed spindle motor and specialized tooling
    • Limitless design configurations
    • Up to 15 EPS Channels 1 shift/1 operator
strato inliner for sewage applications

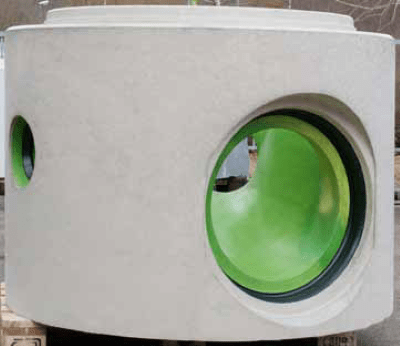

strator inliner in manhole base

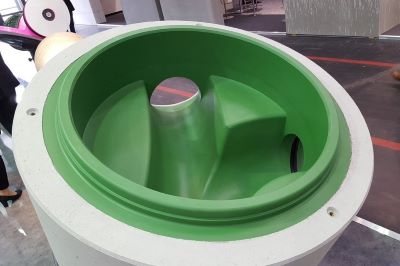

Strato – First of its Kind Inliner Pipe

Take your production in a new direction with our BFS brand’s innovative Strato inliner pipe system. Strato is a new option that complements our Prima manhole base system. This unique inliner is specifically made for use under the extreme conditions in sewage applications. Strato withstands the highest demands for durability under increased chemical exposure and and can be quickly and economically inserted into your Prima production system.

The entire chamber base lining and the pipe connections are produced outside of the mold without any joints. The production of individual chamber linings as well as the intelligent stock production offers extremely economical production conditions which includes the simple recycling of Styrofoam models as well.

Strato creates an extremely smooth surface with excellent hydraulic properties. It can be used with all standard sealants, and the Strato coating ensures high acid resistance up to pH levels of 1. Strato also has a high chemical resistance to gases and salts and is extremely abrasion-resistant.

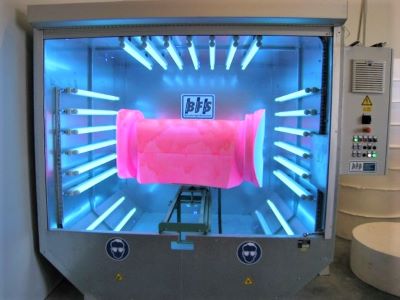

Casacap coating UV curing

BFS Casacap Coating  for Quick UV Curing

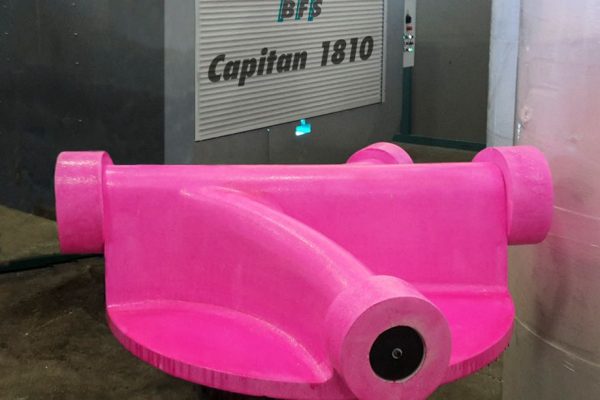

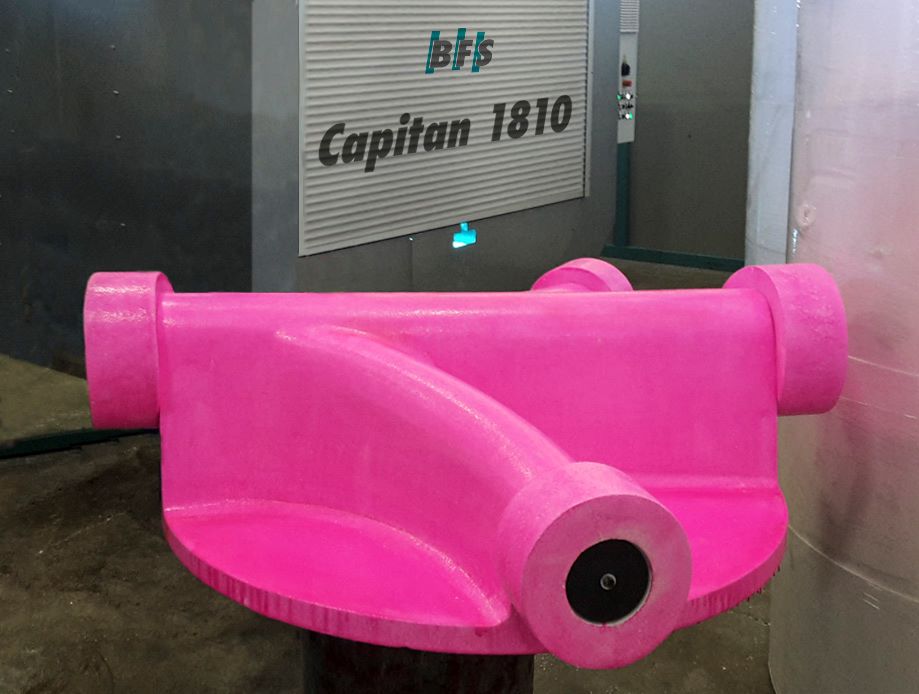

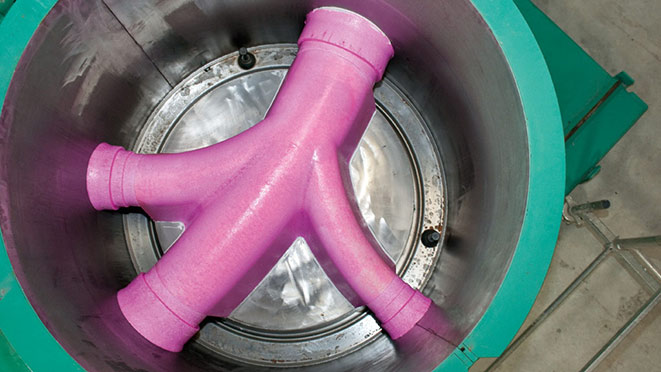

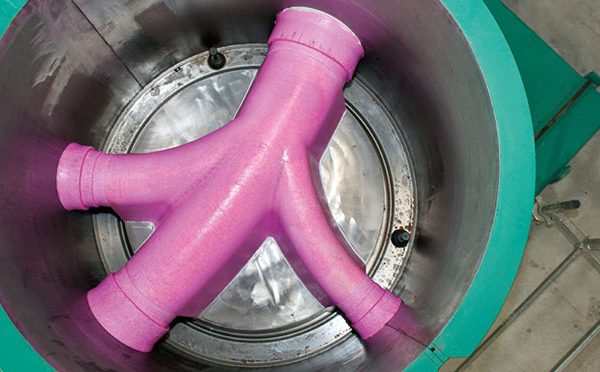

After milling the manhole base channels, the BFS Casacap coating is applied to the surface of the milled EPS parts. This results in both a very smooth concrete surface on the finished product and the release agent makes it possible to remove the EPS former easily in one single piece when demolding. Our BFS Casacap UV Curing station allows the channels to be processed in less than 5 minutes.

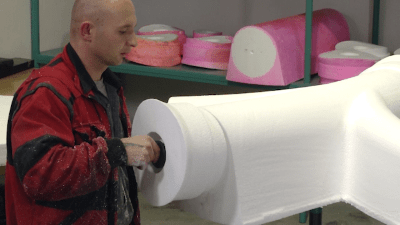

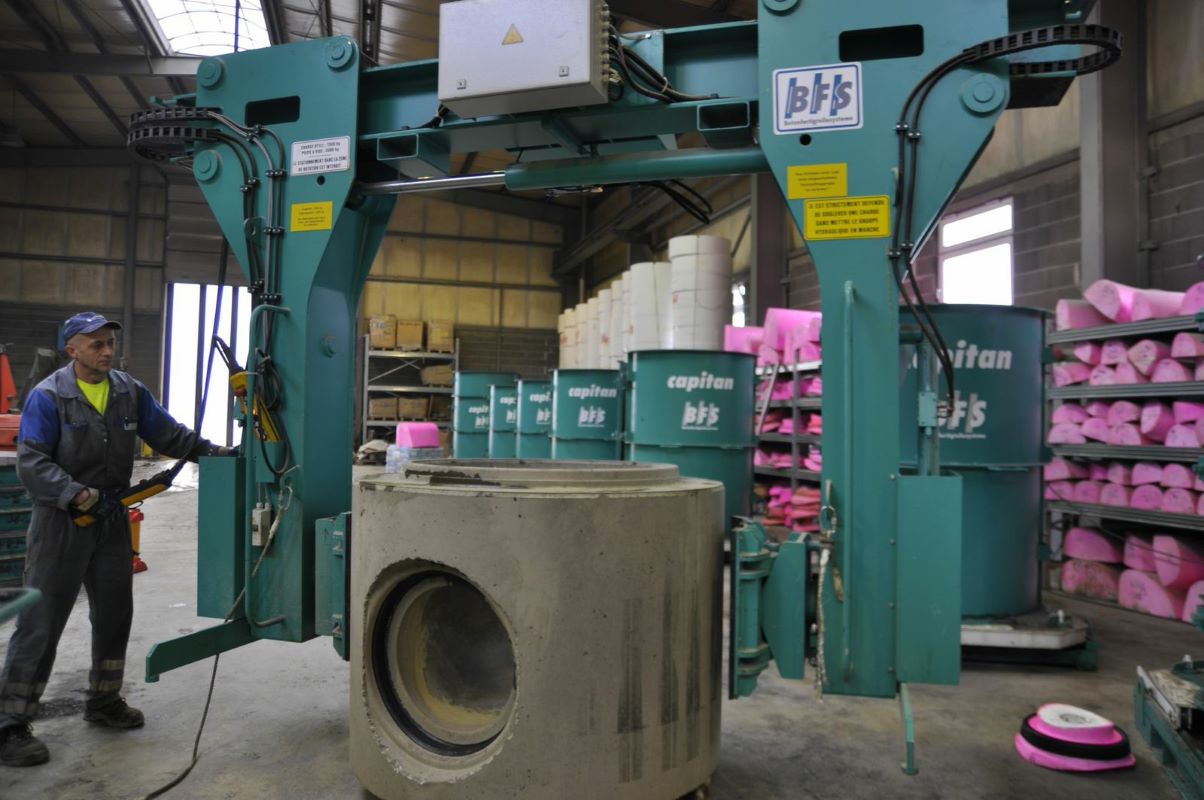

BFS Capitan Channel Assembly

Quick and Easy Mold Set-Up with Prima

One of the greatest assets of the Prima monolithic manhole base system is the ease with which the EPS parts are produced, fit together and ultimately fix to the permanent steel mold. Competitive flexible base systems require multiple, complicated production steps in order to produce the EPS core top, and involve numerous hot-wire cutting machines and careful gluing processes. Our system creates the entire flow-channel portion of the EPS core top in one continuous piece and the connection pieces, or side cores, are simply fixed to the main core top using self-locking principles. In essence, the production and assembly of the EPS core top and the process of fixing it to the permanent mold is literally so simple a child could do it.

previous arrow
next arrow


Afinitas’ Prima Base System offers many additional features to help you work smarter.

Technical Support

Afinitas brings together the engineering strengths and technical expertise of the trusted HawkeyePedershaab and BFS teams. Our global reach and depth of knowledge assures disruption-free operations and helpful advice on how to achieve optimal, efficient results.

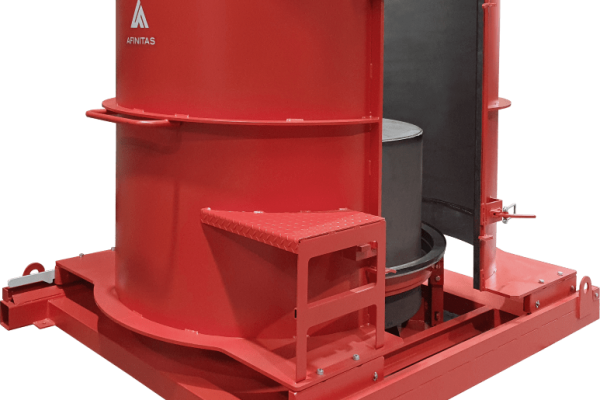

Wetcast Molds

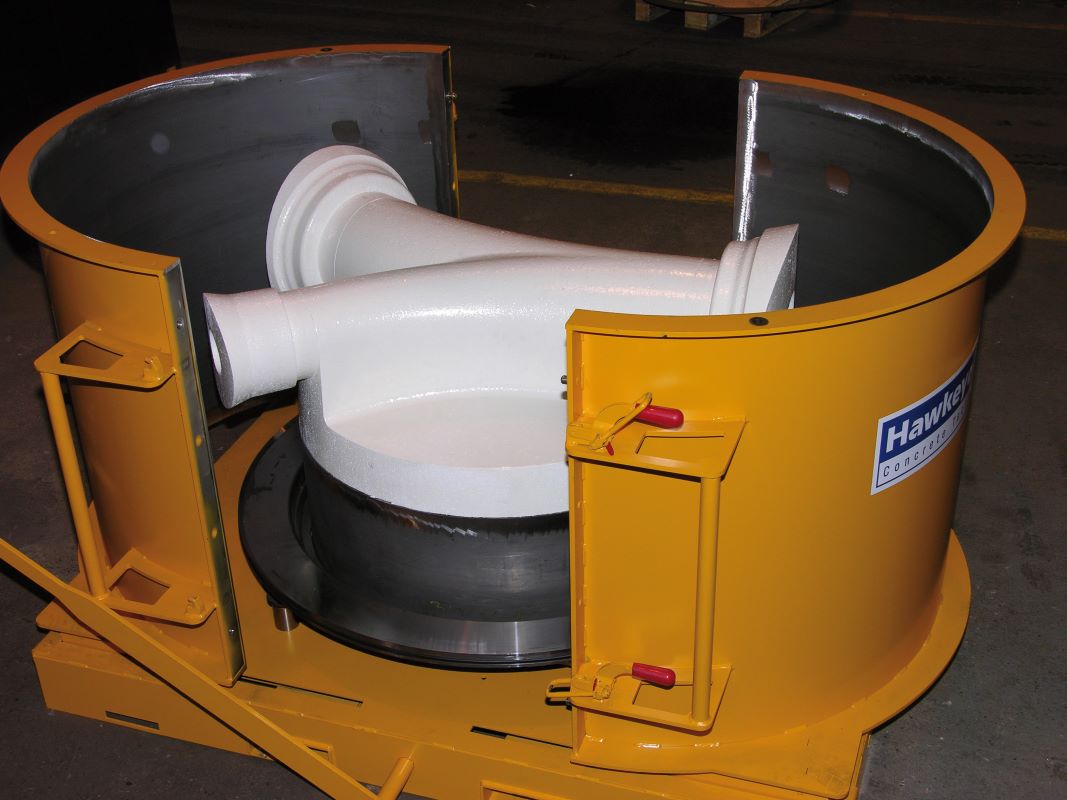

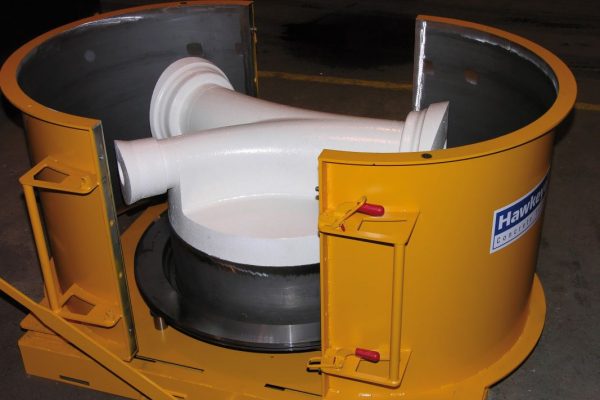

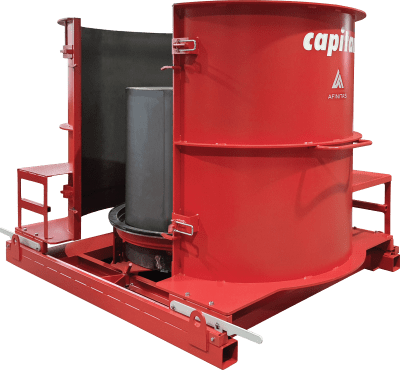

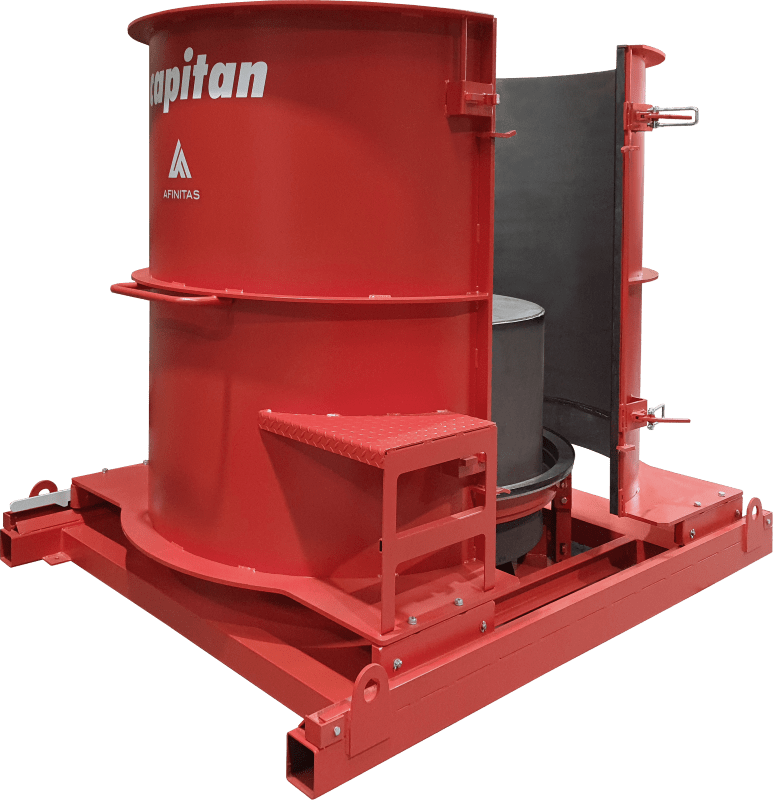

As part of your Prima system we can provide top quality standard molds available with a collapsible inner core, height adjustable spigot former and integrated sealings. In addition, we offer an extended base mold with hydraulically adjustable inner core.

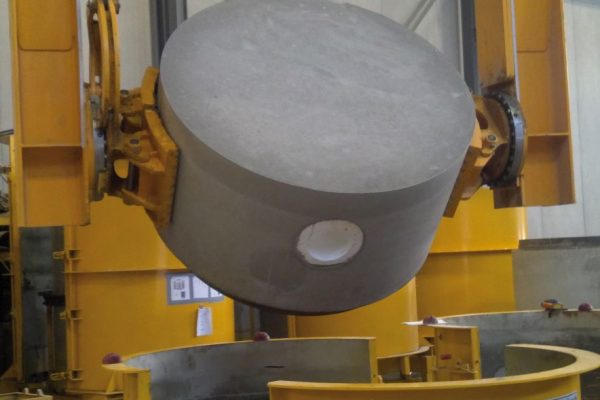

Turning Device

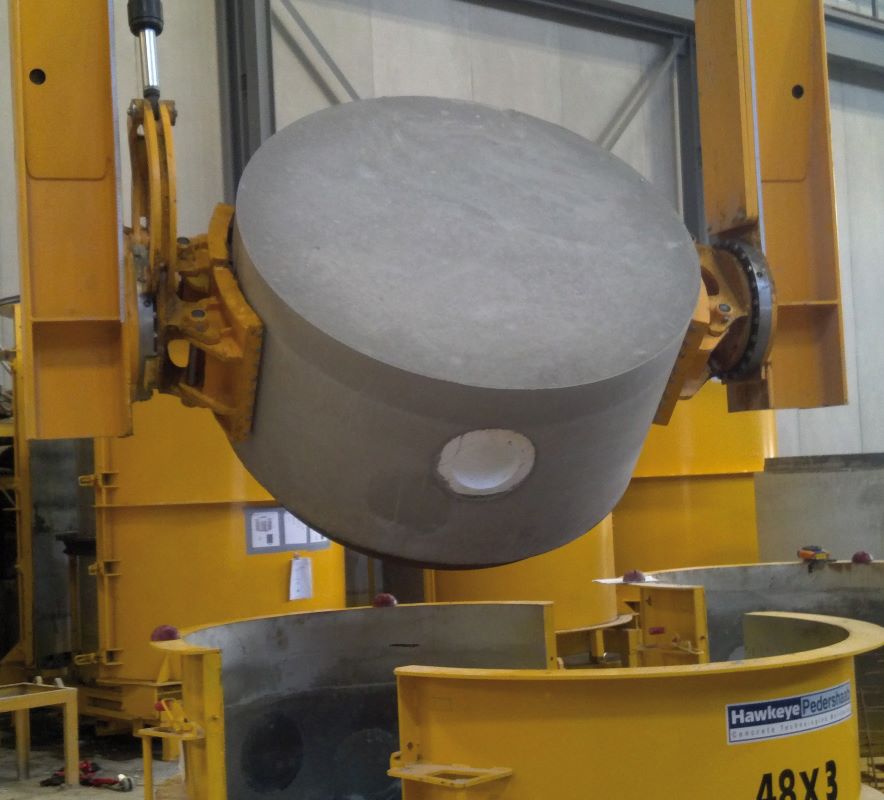

Introduce more automation and safety into your wetcast production process with our innovative concrete product turning device that handles up to DN  1800mm (70″) products.

Special Products

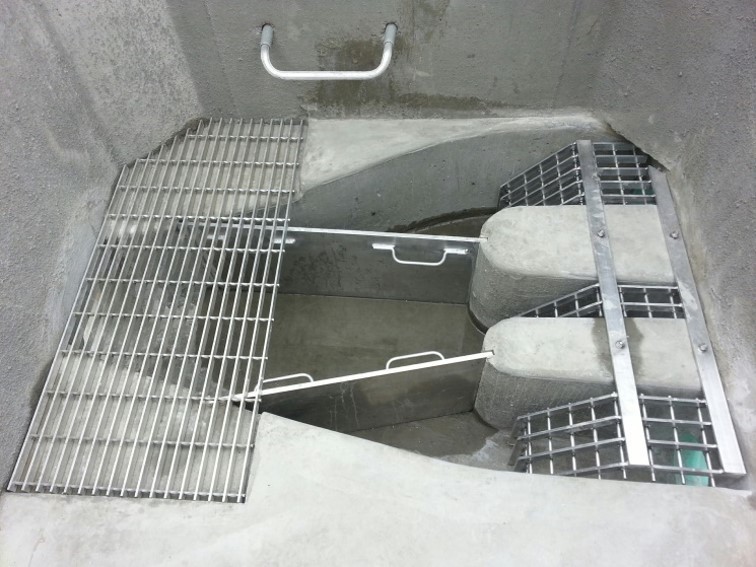

Our Prima systems work for many different applications, including inspection box culverts.


You Choose the EPS

Our Prima manhole systems utilize EPS blocks available from many competitive sources. There is no requirement to purchase your preformed EPS components from us. This allows you to source materials more economically and on your schedule.


BFS Styrofoam compactor

EPS Compactor

Achieves compaction up to 25:1.


Prima Base Resources

Prima Base ensures economic production of monolithic manhole bases.

Download Brochure

See our CNC Milling Technology in action.

Watch Video

See the precision of the Smartcast Kuka robotic arm.

Watch Video

"The products are very well received by our customers."

Read Case Study

The Prima system makes individual channel geometries possible.

Read Case Study

"They offered us the best technical solution for the manufacture of manhole bases."

Read Case Study

Prima is a smarter way to wetcast.

Download Brochure

Hear from Tindall Utility Division leaders about why they chose Prima for their new facility.

Watch Video

See Prima in Action.

Watch Video
