Coil Nuts are made of steel and are designed to be used with Amifast Coil Bolts. To achieve the listed safe working load, two (2) Coil Nuts should be locked tightly together. If using the High Coil Nut, only one (1) Coil Nut will be needed to achieve the listed safe working load.

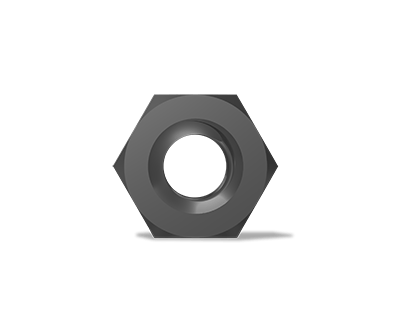

Coil Nut

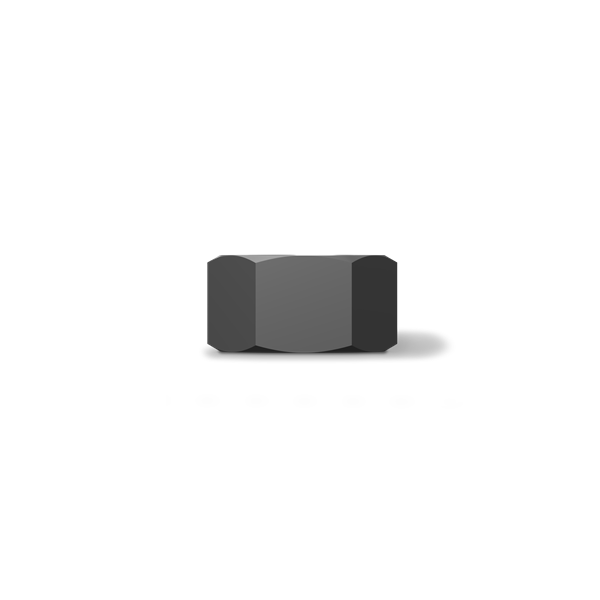

3/4" coil nut

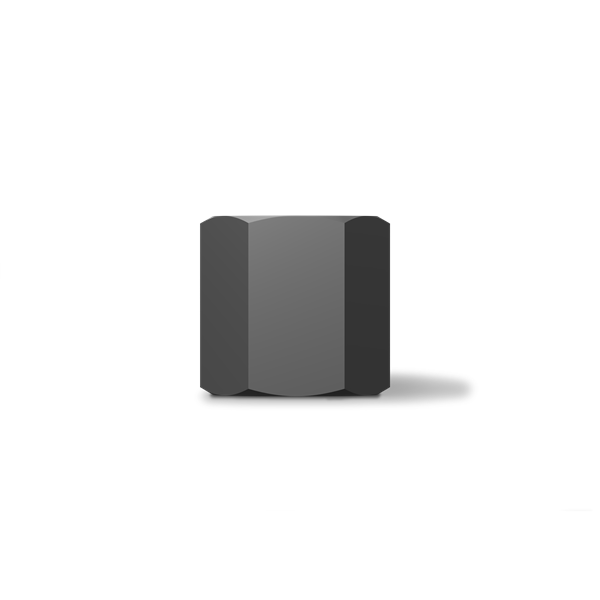

1" coil nut
Coil Nuts
Coil Nuts
| Part Number | Safe Working Load | Safety Factor | Height (in.) | Threads (in.) | Diameter (in.) | Across the Flats (in) | Finish | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_safe-working-load | hf:att:pa_height | hf:att:pa_finish | hf:att:pa_ult-mech-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CN12P | 1800 | 5:1 | 4/9 | 6 | 1/2 | 7/8 | Plain | 9000 | .06 lbs | 100 | $0.28 | 1800 | 4-9 | plain | 9000 | |
| CN1P | 7200 | 5:1 | 1 | 3.5 | 1 | 1-5/8 | Plain | 18000 | .43 lbs | 100 | $1.59 | 7200 | 1 | plain | 18000 | |
| CN1H | 15000 | 5:1 | 2 | 3.5 | 1 | 1-5/8 | Plain | 18000 | .70 lbs | 60 | $3.47 | 15000 | 2 | plain | 18000 | |
| CN34P | 3600 | 5:1 | 5/8 | 4.5 | 3/4 | 1-1/4 | Plain | 36000 | .18 lbs | 250 | $0.61 | 3600 | 5-8 | plain | 36000 | |
| CN34H | 7200 | 5:1 | 1-13/16 | 4.5 | 3/4 | 1-1/4 | Plain | 54000 | .33 lbs | 100 | $2.02 | 7200 | 1-13-16 | plain | 54000 | |
| CN34FIN | 3600 | 5:1 | 5/8 | 4.5 | 3/4 | 1-1/8 | Zinc-Plated | 81000 | .18 lbs | 500 | $0.55 | 3600 | 5-8 | zinc-plated | 81000 | |
| CN34HFIN | 7200 | 5:1 | 1-13/16 | 4.5 | 3/4 | 1-1/8 | Zinc-Plated | 18000 | .23 lbs | 100 | $2.18 | 7200 | 1-13-16 | zinc-plated | 18000 | |
| CN114P | 10800 | 5:1 | 1-1/4 | 3.5 | 1 1/4 | 2 | Plain | 36000 | .78 lbs | 50 | $2.97 | 10800 | 1-1-4 | plain | 36000 | |
| CN112P | 16200 | 5:1 | 1-1/2 | 3.5 | 1 1/2 | 2-3/8 | Plain | 36000 | 1.29 lbs | 45 | $2.99 | 16200 | 1-1-2 | plain | 36000 | |
| CN12H | 3600 | 5:1 | 1-13/16 | 6 | 1/2 | 7/8 | Plain | 75000 | .31 lbs | 100 | Call for Quote | 3600 | 1-13-16 | plain | 75000 |
