Made in USA Lifting Devices and Pocket Formers
- Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

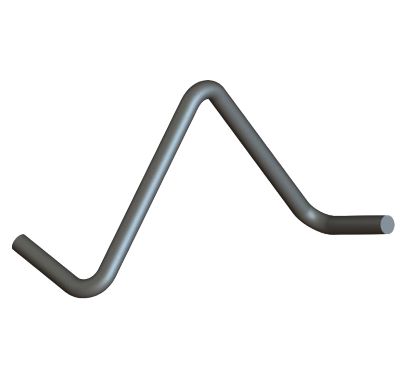

Lift Bars
Part No. LB2536P
- Lift bars are designed to be cast into concrete for lifting slabs or structures.
- Can be made to your specifications upon request and design approval.
- Haala Industries can fabricate lift bars in diameters from 1/4″ to 1-1/2″.
Download and complete the quote request form. Request a quote
| Additional Lift Bar Options | Part No. | Size | SWL | Qty/Box |
|---|---|---|---|---|
 | LB3835P Plain | 3/8”x3-1/2” | 2,800 lbs. | 1,500 |
 | LB3835NLG Galvanized | 3/8”x3-1/2” | 2,800 lbs. | 2,000 |
 | LB3855G Galvanized | 3/8”x5-1/2” | 2,800 lbs. | 1,500 |
 | LB3865P LB3865G | 3/8”x6-1/2” | 2,800 lbs. | 1,500 |
 | LB3819P LB3819G | 3/8”x7-1/4” | 3,000 lbs. | 2,000 |
 | LB1235P | 1/2”x3-1/2” | 5,000 lbs. | 1,500 |
 | LB125P Plain | 1/2”x5-1/2” | 5,000 lbs. | 2,000 |
 | LB585P Plain | 5/8”x5” | 8,500 lbs. | 2,000 |
 | LB587P | 5/8”x7-1/2” | 8,500 lbs. | 2,000 |
 | LB3470P Plain | 3/4”x7” | 12,000 lbs. | |
 | CP118P Plain | 3/4”x9” | 12,000 lbs. | |
 | LB3411P Plain | 3/4”x11” | 12,000 lbs. | |
 | LB3412P | 3/4”x12” | 12,000 lbs. |
- Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

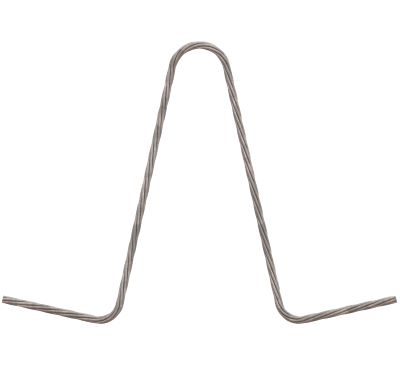

Lift Cables
Part No. 3825
- Lift cables are made from extra high strength A475 galvanized material certified to have a minimum breaking strength of 15,400 lbs. Material certifications are included. To maintain a 4:1 safety factor, DO NOT lift over 3,850 lbs per cable.**Test reports do not depict actual lift capacity and are for reference only. Lift angle and placement of devices are critical to the performance of each device.**
Download and complete the quote request form. Request a quote
- Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

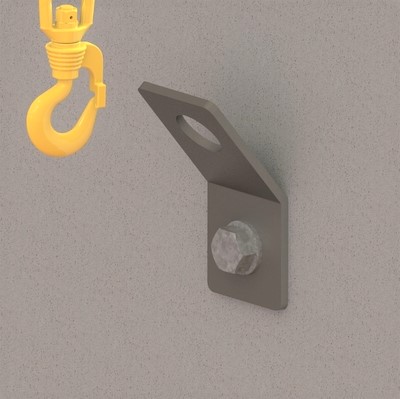

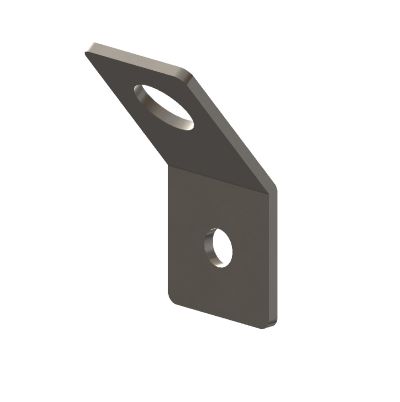

Lift Plate
Part No. 3803
- Lift plates are made to bolt onto the concrete structure so they can be removed if desired. Standard plates are made from mild steel but are available in stainless steel.***Please consider the breaking strength of the bolt and concrete when using this plate. During testing the bolt broke before the plate.***
Download and complete the quote request form Request a quote
- Made in the USA in our Sleepy Eye, MN factory. USA-made steel.
Reusable Pocket Former for Lifting Devices
Part No. 3019S
- This Pocket Former is made from a flexible material and is a reusable cost effective method to form pockets for lift devises at the perimeter of a concrete slab.
