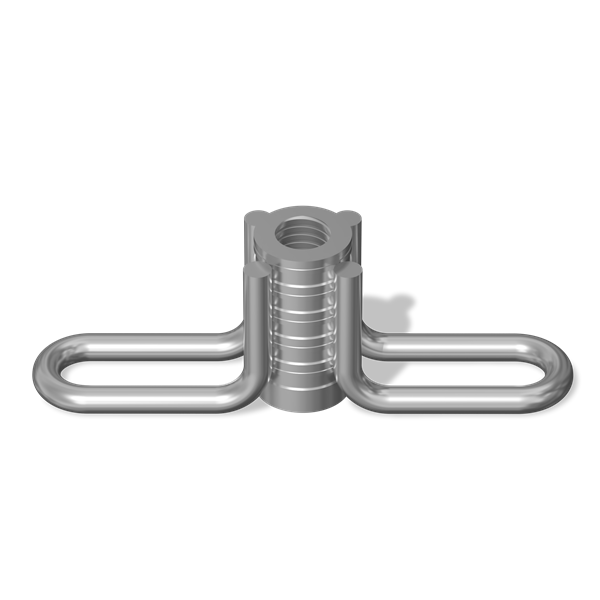

Our Ferrule Wing Inserts are designed for precast concrete applications where embedment depth prevents use of other ferrule inserts. Wire wings are welded to the closed-end ferrule body.
Flared Ferrule Winged Insert
Flared Ferrule Wing Inserts
Flared Ferrule Wing Inserts
| Part Number | Bolt Diameter | Wire Diameter | Width | Height (in.) | Safe Working Load | Safety Factor | Finish | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_width | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FI12FWSS | 1/2 | .225 | 1-3/8 | N/A | N/A | Stainless Steel | N/A | .29 lbs | 170/crate | $5.15 | |||
| FI12FWZ | 1/2 | .225 | 1-3/8 | 1200 | 4:1 | Zinc-Plated | 3600 | .29 lbs | 170/crate | $1.89 |
