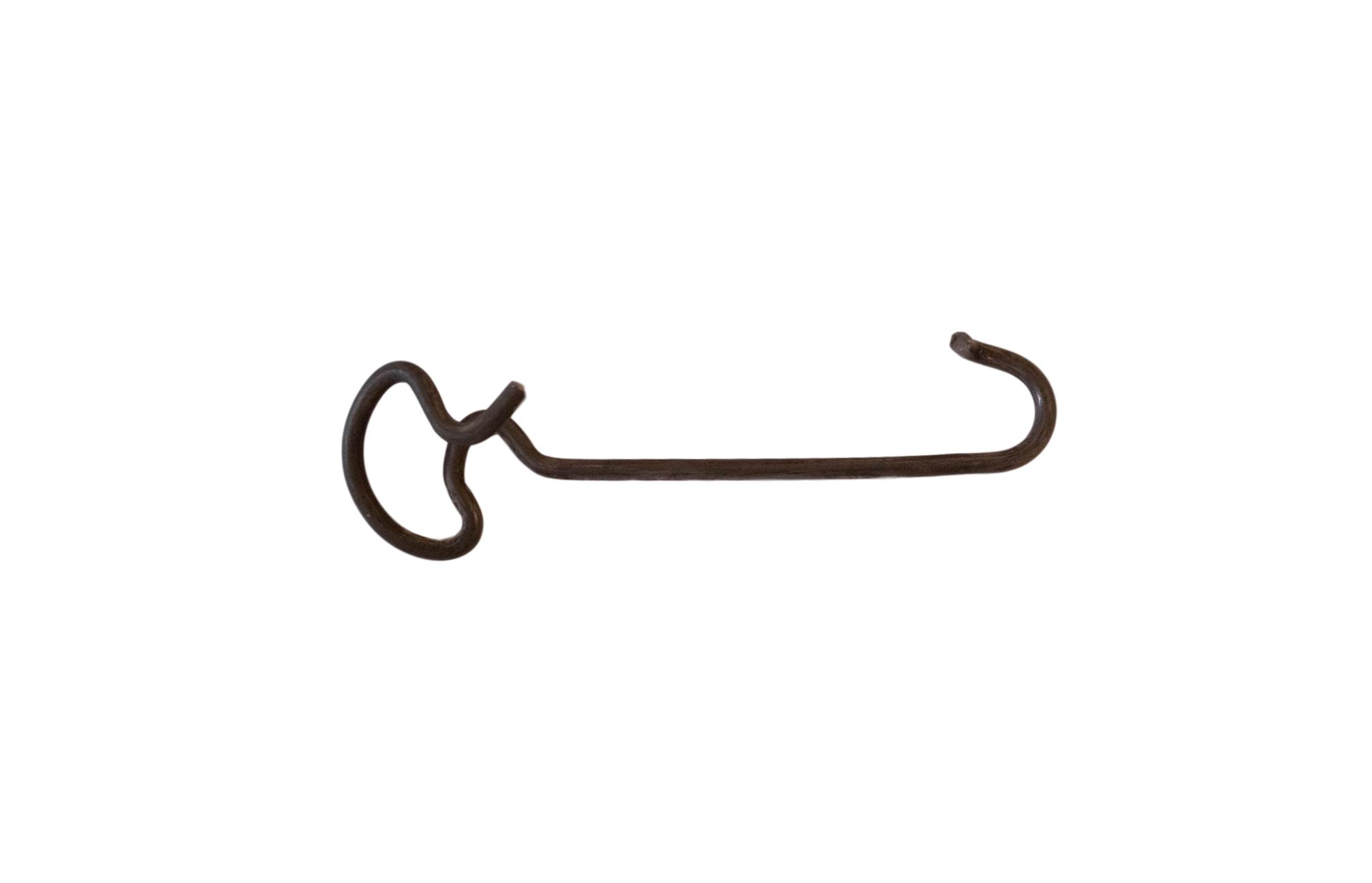

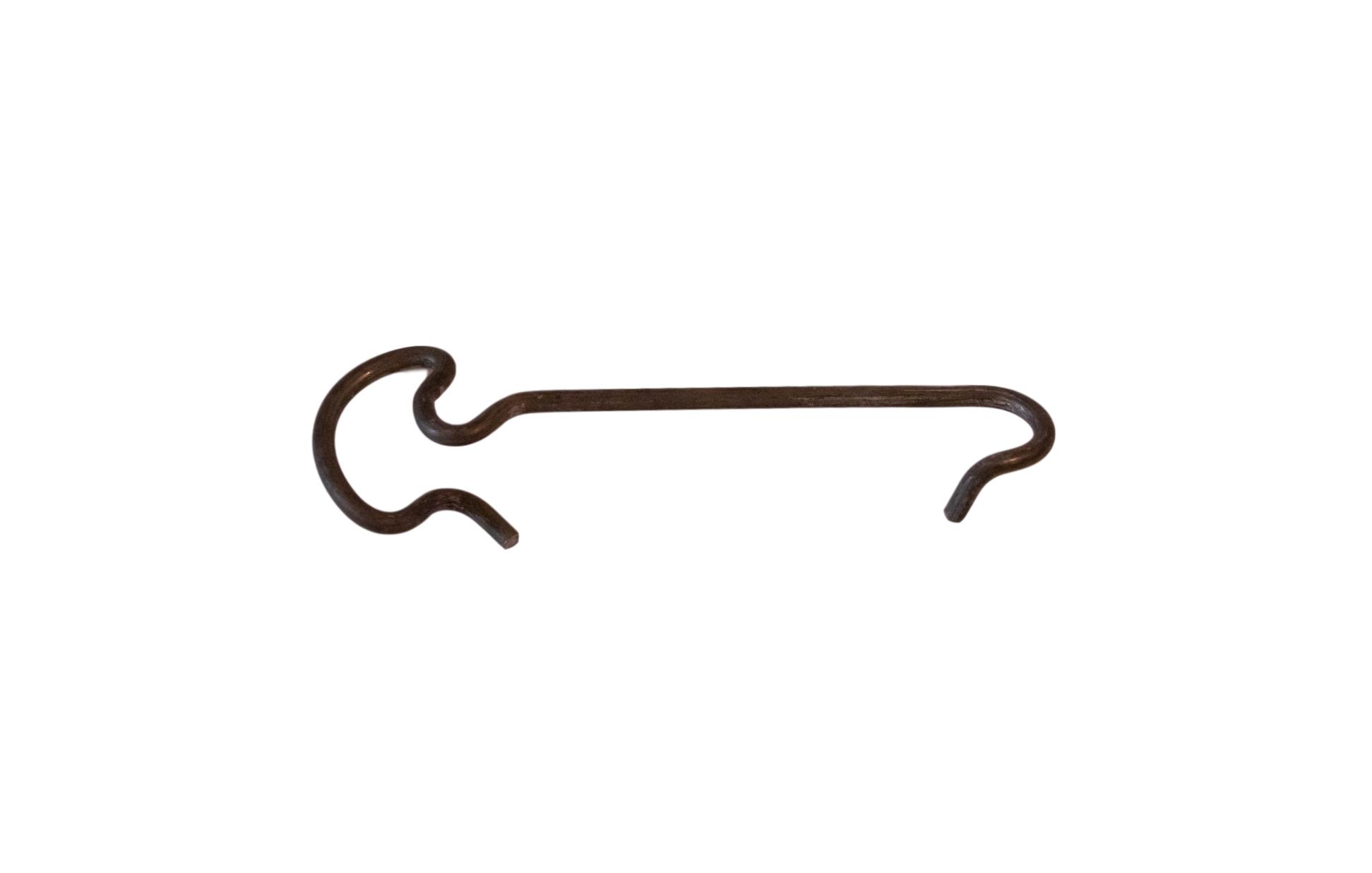

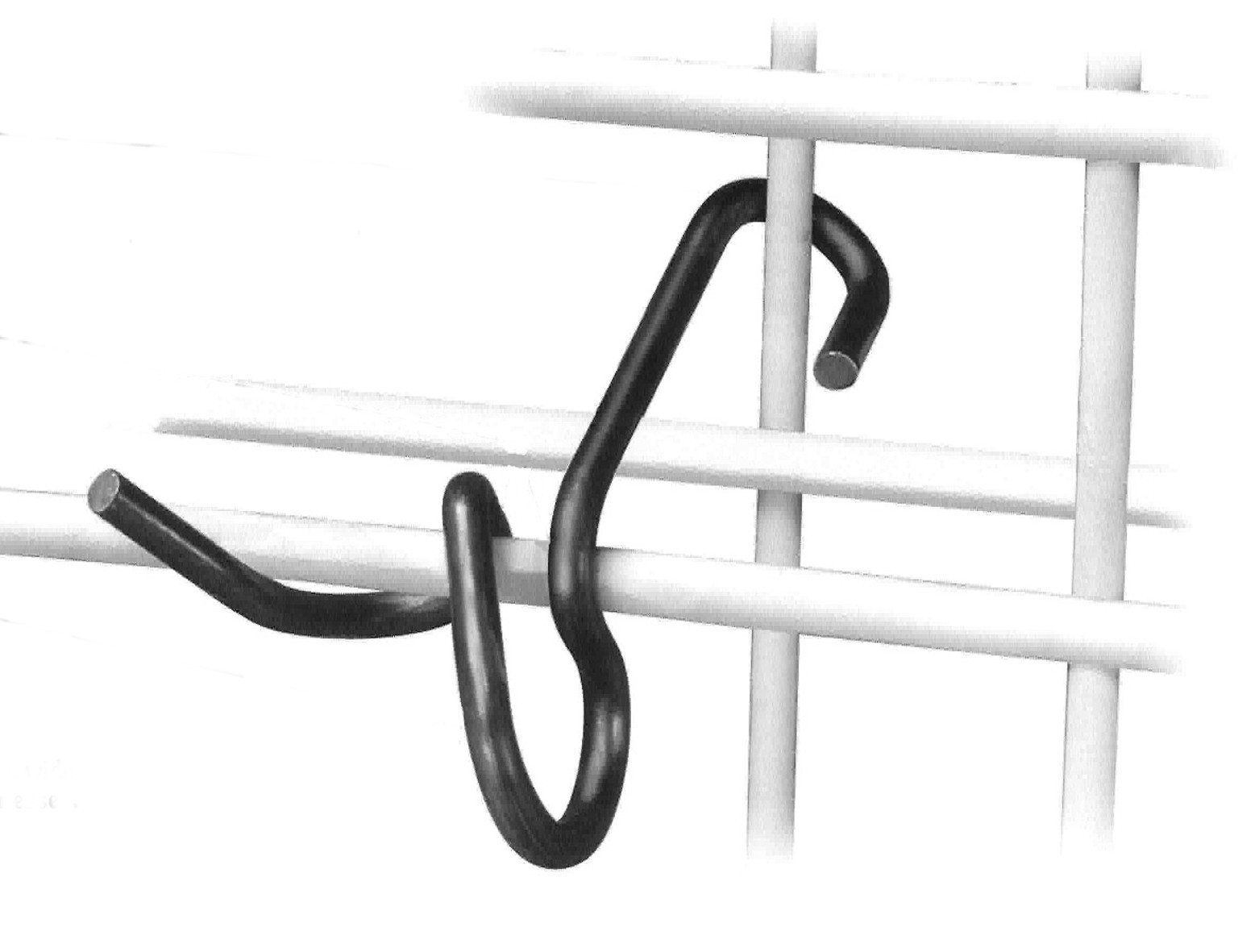

HawkeyePedershaab LEVER-LOK Double Cage Spacers

SKU: N/A Category:

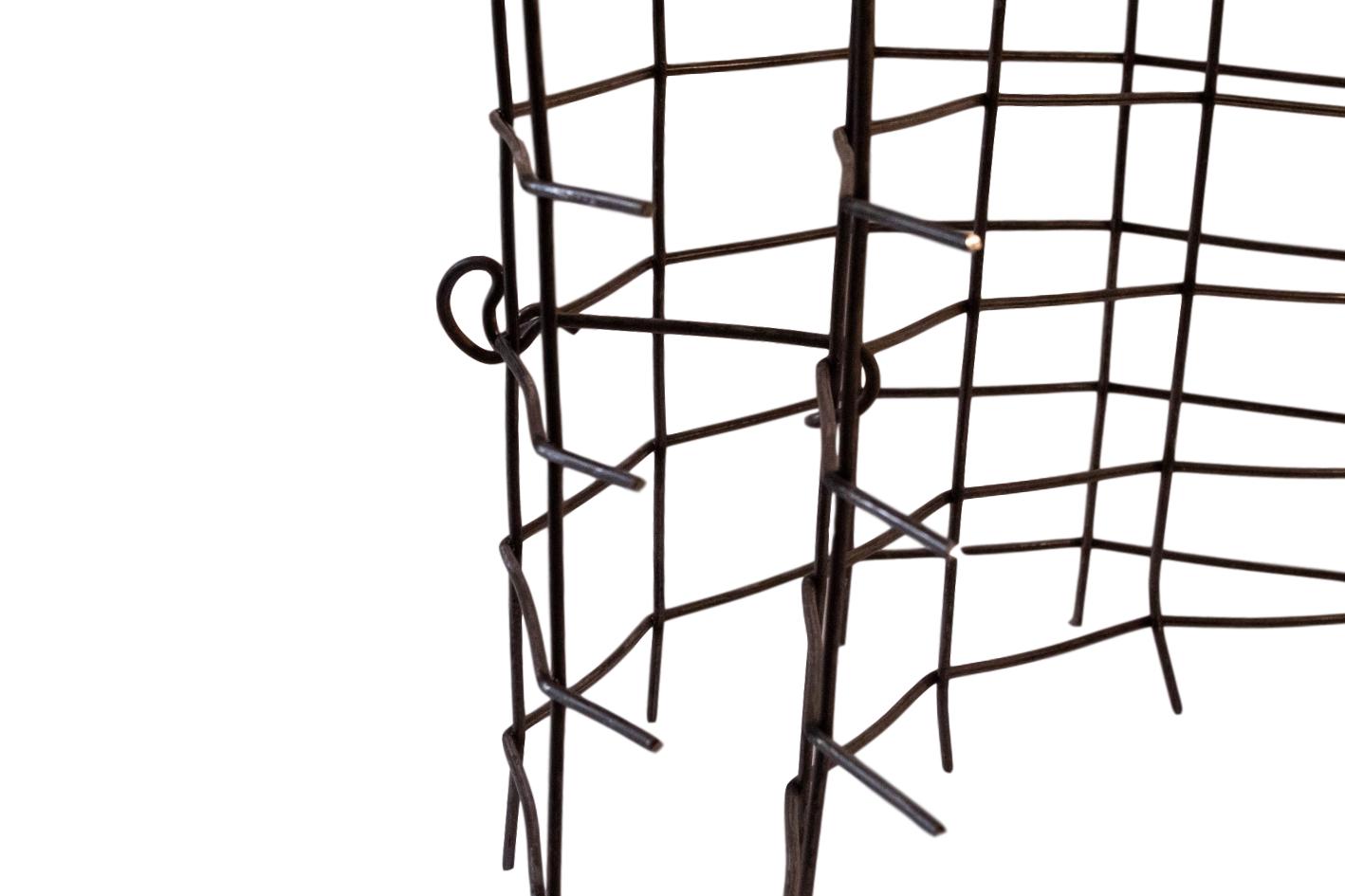

HawkeyePedershaab’s patented lever-applied locking technology brings a new dimension in spacing performance to double cage concrete pipe. Unlike conventional spacers, the performance of the Lever-Lok is not dependent on the accuracy of the rolled cages.

Key Benefits

  • Made in the USA. USA-made steel.
  • Tanglefree
  • Fits any mesh
  • Available in galvanized wire
  • Fits any wire diameter up to 3/8”
  • Standard sizes available for 1” concrete cover and 1-1/4” sizes available as special requests

To request a quote online, find your products in the table below, enter your quantities and click “Add to Quote” for each item you want quoted. When finished, click the “View cart” link to complete and submit your request. If you are ready to order, use the same form and include your P.O. (if applicable) and any shipping or special instructions in the comments field.

HawkeyePedershaab LEVER-LOK Double Cage Spacers

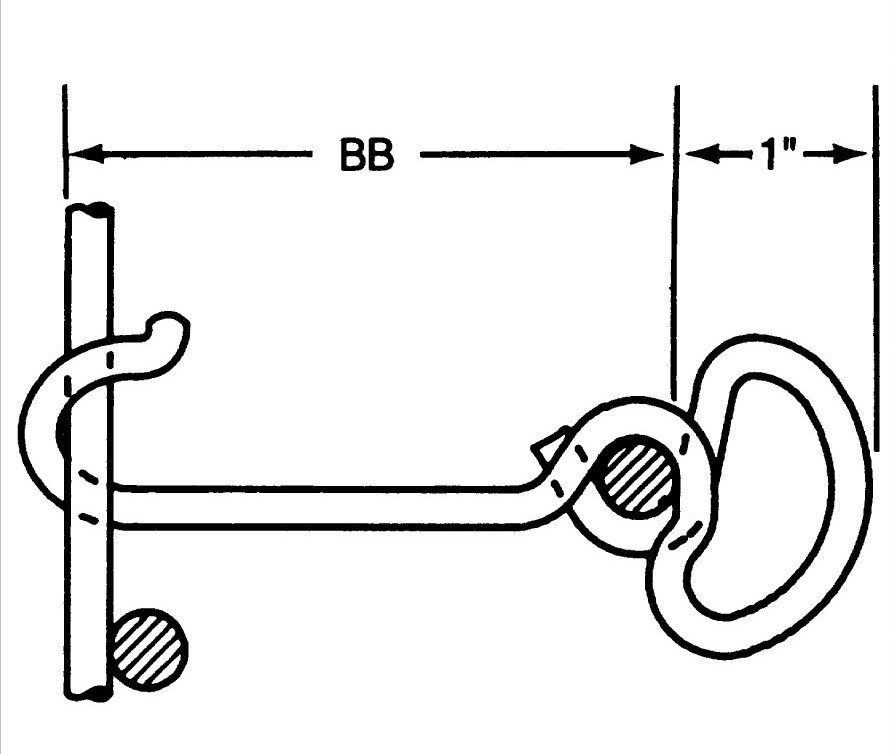

Part NumberCoverB.B. DimensionsWall ThicknessQty per Box/Bag/DrumBox/SkidReinforcement TypePriceBox/Bag/Drumhf:att:pa_coverhf:att:pa_b-b-dimensionshf:att:pa_wall-thickness
TF-LL-30B1"1.50"B800/box30Wire$0.00
Add to Quote
11-50b
TF-LL-33B1"1.75"B700/box30Wire$0.00
Add to Quote
11-75b
TF-LL-36B1"2.00"B700/box30Wire$0.00
Add to Quote
12-00b
TF-LL-39B1"2.25"B700/box30Wire$0.00
Add to Quote
12-25b
TF-LL-42B1"2.50"B600/box30Wire$0.00
Add to Quote
12-50b
TF-LL-48B1"3.00"B600/box30Wire$0.00
Add to Quote
13-00b
TF-LL-54B1"3.50"B600/box30Wire$0.00
Add to Quote
13-50b
TF-LL-60B1"4.00"B500/box30Wire$0.00
Add to Quote
14-00b
TF-LL-66B1"4.50"B500/box30Wire$0.00
Add to Quote
14-50b
TF-LL-72B1"5.00"B500/box30Wire$0.00
Add to Quote
15-00b
TF-LL-78B1"5.50"B500/box30Wire$0.00
Add to Quote
15-50b
TF-LL-84B1"6.00"B400/box30Wire$0.00
Add to Quote
16-00b
TF-LL-90B1"6.50"B400/box30Wire$0.00
Add to Quote
16-50b
TF-LL-96B1"7.00"B400/box30Wire$0.00
Add to Quote
17-00b
TF-LL-42C1"3.25"C600/box30Wire$0.00
Add to Quote
13-25c
TF-LL-36C1"2.75"C600/box30Wire$0.00
Add to Quote
12-75c
TF-LL-48C1"3.75"C500/box30Wire$0.00
Add to Quote
13-75c
TF-LL-54C1"4.25"C500/box30Wire$0.00
Add to Quote
14-25c
TF-LL-60C1"4.75"C500/box30Wire$0.00
Add to Quote
14-75c
TF-LL-66C1"5.25"C500/box30Wire$0.00
Add to Quote
15-25c
TF-LL-72C1"5.75"C400/box30Wire$0.00
Add to Quote
15-75c
TF-LL-78C1"6.25"C400/box30Wire$0.00
Add to Quote
16-25c
TF-LL-84C1"6.75"C400/box30Wire$0.00
Add to Quote
16-75c
