Lifting Loops

SKU: N/A Categories: ,

The Lifting Loop is an economical solution for the lifting and handling of various concrete products. The Lifting Loop is installed with 2/3 of its length embedded into the concrete, with the remainder accessible for lifting. The lifter does not require any special hardware or recess formers which makes it economical and a universal solution. The Lifting Loop should be used with a standard hook or clevis with a minimum diameter of twice the loop’s diameter.

Each loop is color coded based on its maximum safe working load. This allows for quick identification during production, but also in the field when elements are moved around and placed. The loop is galvanized to resist corrosion or rusting when exposed to the elements which allows for the loop to be left as is or be cut off after final placement of the element.

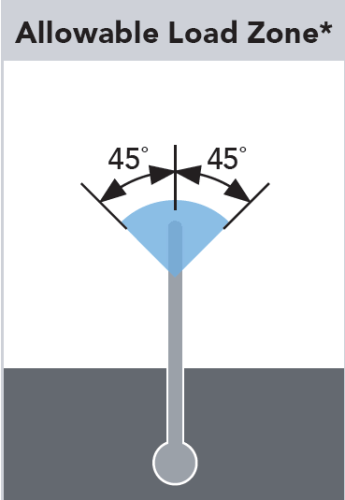

Allowable Load Zone

*Lifting Loop not to exceed 45˚ lifting angle. If angle exceeds 45˚, then a pre-lift inspection is required for subsequent lifts.

Lifting Loops

Part NumberSizeWidthHeight (in.)Cable DiameterColorUlt. Mech. LoadSafe Working LoadItem Wt./ea.Box/SkidPrice (Each)hf:att:pa_widthhf:att:pa_safe-working-load

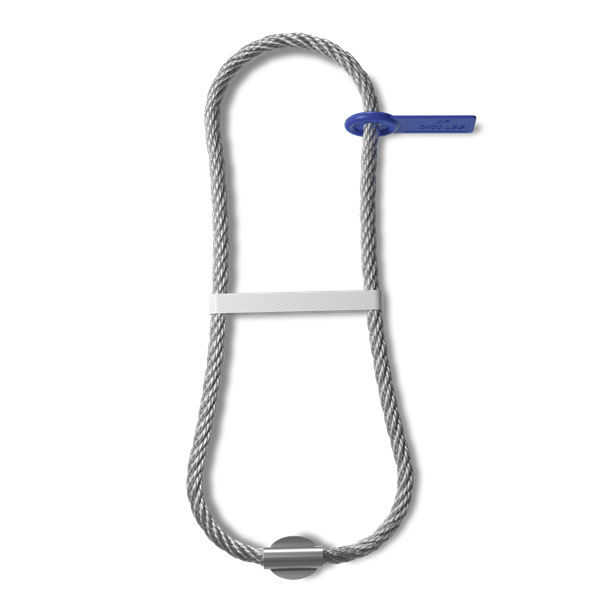

PLLLB.25T3-9/168-3/161/8Blue2000500.06 lbs50/15000$0.60
Each
Add to Quote
3-9-16500

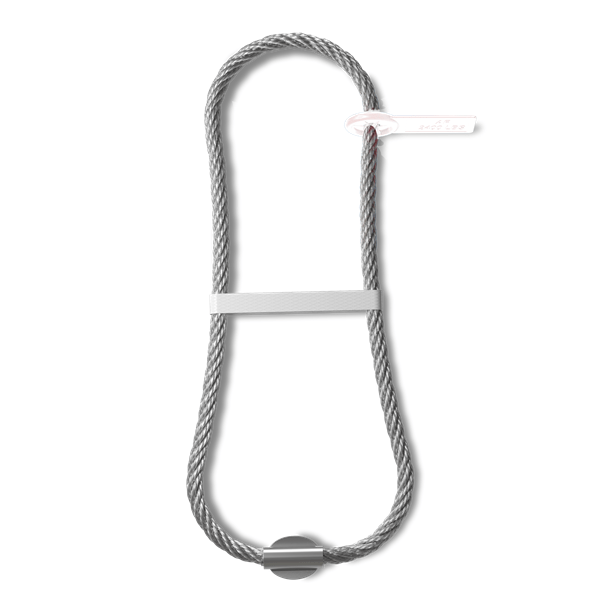

PLLLW.8T3-3/87-7/81/4White64001600.21 lbs10/7000$0.97
Each
Add to Quote
3-3-81600
PLLLR1.2T4-1/48-7/89/32Red96002400.28 lbs10/7000$1.27
Each
Add to Quote
4-1-42400
PLLLP1.6T4-15/169-5/85/16Purple128003200.36 lbs10/5000$1.51
Each
Add to Quote
4-15-163200

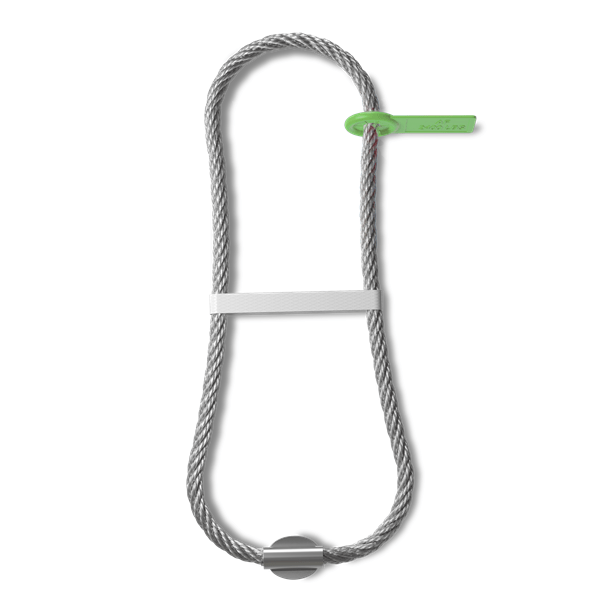

PLLLLG2T5-1/210-7/1611/32Lt Green160004000.56 lbs10/3600$2.04
Each
Add to Quote
5-1-24000

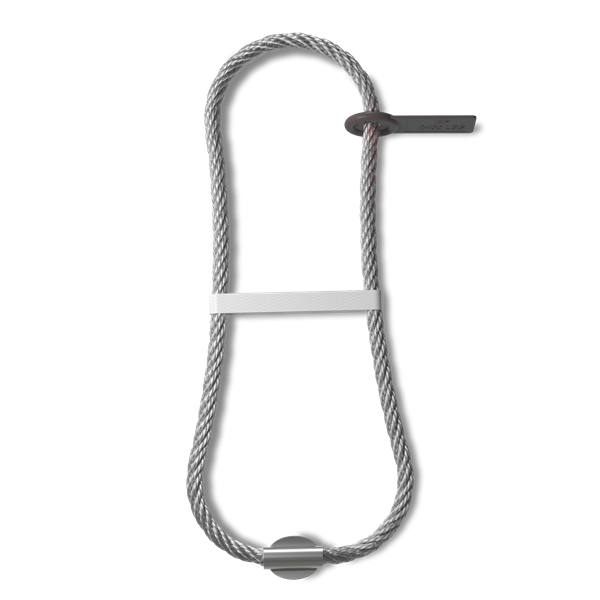

PLLLC2.5T4-15/1612-1/83/8Charcoal200005000.74 lbs10/2000$2.92
Each
Add to Quote
4-15-165000
PLLLDG3.3T6-3/813-3/815/32Dk Green2640066001.19 lbs5/1700$4.46
Each
Add to Quote
6-3-86600
PLLLY5.5T7-1/215-3/417/32Yellow44,00011,0001.84 lbsN/A$9.69
Each
Add to Quote
7-1-211000
PLLLLB7T9-1/2175/8Lt Blue56,00014,0002.7 lbsN/A$11.86
Each
Add to Quote
9-1-214000
PLLLDY13.25T11-3/4237/8Dark Yellow106,00026,5007.4 lbsN/A$44.80
Each
Add to Quote
11-3-426500
