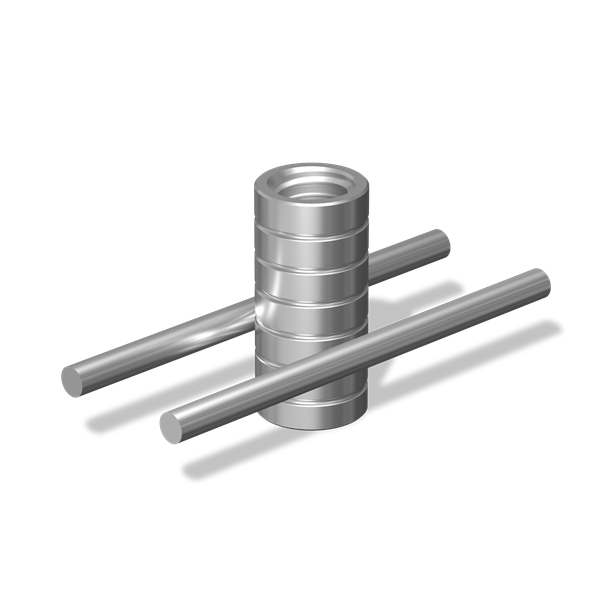

Our Thin Slab Ferrule Inserts are designed for situations when the depth of embedment is limited and high shear and tension capacities are not necessary. They are manufactured with two parallel struts welded to the ferrule, or one looped strut welded perpendicular to the ferrule.
Thin Slab Ferrule Insert
Thin Slab Ferrule Inserts
Thin Slab Ferrule Inserts
| Part Number | Bolt Diameter | Finish | Safe Working Load | Safety Factor | Height (in.) | Ult. Mech. Load | Material | Wire Diameter | Item Wt./ea. | Box/Skid | Price (Each) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FI34318TSZ | 3/4 | Zinc-Plated | 1600 | 3:1 | 1-5/8 | 4800 | Steel | .262 | .67 lbs | 80/crate | $3.88 | |
| FI38TSZ | 3/8 | Zinc-Plated | 450 | 3:1 | 1-1/4 | 1350 | Steel | .262 | .25 lbs | 120/crate | $1.39 | |
| FI58TSZ | 5/8 | Zinc-Plated | 1000 | 3:1 | 1-5/8 | 3000 | Steel | .262 | .29 lbs | 70/crate | $2.05 |
