Trash Guard CMP

Description

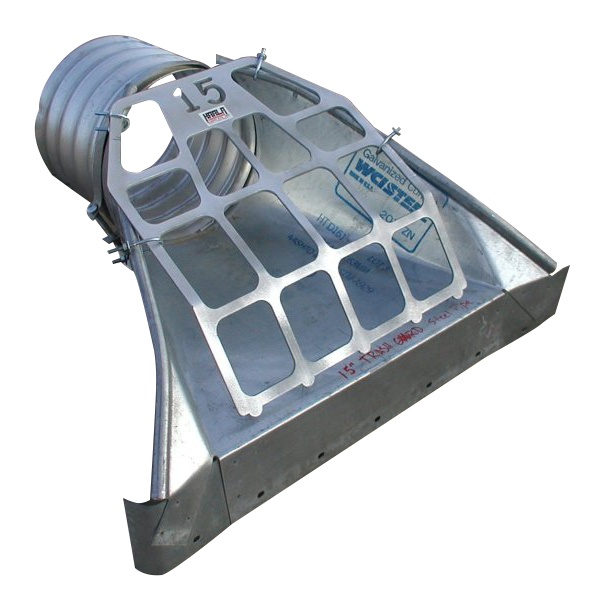

Trash Guards are designed to cover the flared end section of an inlet or outlet pipe and prevent large debris from passing through while also restricting access to the pipe system. Guards for 12″-18″ are also available as a plate style. Please note form company when ordering.

Steel flared end section is NOT included with the guard.

  • Solid bar design for durability and long life
  • Typical bar c/c is 6″ one direction
  • Hinged mounting tabs at 3 points
  • Galvanized steel construction. Can be made from aluminum or stainless steel.
  • Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

Trash Guard CMP

Part numberSizePlate ThicknessOpening sizeForm companyBox/Bag/Drumhf:att:pa_sizehf:att:pa_plate-thickness
TGCMP12P121/4"4"x6"N/A
Each
Add to Quote
121-4
TGCMP12S-CT121/2"6"x6"Contech
Each
Add to Quote
121-2
TGCMP12S-MC121/2"6"x6"Metal Culverts
Each
Add to Quote
121-2
TGCMP15-P151/4"5"x7"N/A
Each
Add to Quote
151-4
TGCMP15S-CT151/2"6"x6"Contech
Each
Add to Quote
151-2
TGCMP15S-MC151/2"6"x6"Metal Culverts
Each
Add to Quote
151-2
TGCMP18-P181/4"6"x8"N/A
Each
Add to Quote
181-4
TGCMP18S-CT181/2"6"x6"Contech
Each
Add to Quote
181-2
TGCMP18S-MC181/2"6"x6"Metal Culverts
Each
Add to Quote
181-2
TGCMP21-CT215/8"6"x6"Contech
Each
Add to Quote
215-8
TGCMP21-MC215/8"6"x6"Metal Culverts
Each
Add to Quote
215-8
TGCMP24-CT245/8"6"x6"Contech
Each
Add to Quote
245-8
TGCMP24-MC245/8"6"x6"Metal Culverts
Each
Add to Quote
245-8
TGCMP27-CT275/8"6"x6"Contech
Each
Add to Quote
275-8
TGCMP27-MC275/8"6"x6"Metal Culverts
Each
Add to Quote
275-8
TGCMP30-CT305/8"6"x6"Contech
Each
Add to Quote
305-8
TGCMP30-MC305/8"6"x6"Metal Culverts
Each
Add to Quote
305-8
TGCMP33-CT335/8"6"x6"Contech
Each
Add to Quote
335-8
TGCMP33-MC335/8"6"x6"Metal Culverts
Each
Add to Quote
335-8
TGCMP36-CT363/4"6"x6"Contech
Each
Add to Quote
363-4
TGCMP36-MC363/4"6"x12"Metal Culverts
Each
Add to Quote
363-4
TGCMP42-CT423/4"6"x12"Contech
Each
Add to Quote
423-4
TGCMP42-JJ423/4"6"x12"J&J Drainage
Each
Add to Quote
423-4
TGCMP48-CT483/4"6"x12"Contech
Each
Add to Quote
483-4
TGCMP48-JJ483/4"6"x12"J&J Drainage
Each
Add to Quote
483-4
TGCMP54-JJ543/4"6"x12"J&J Drainage
Each
Add to Quote
543-4
