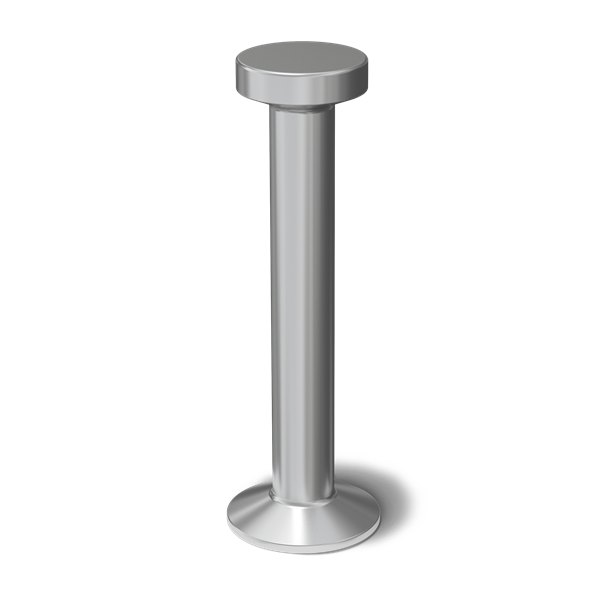

The Dog Bone anchor is a high-strength, economical, and low-profile insert for lifting and handling of precast concrete elements. The anchor utilizes forged spherical ends, one to prevent pullout under loading, and the other for lifting. The Dog Bone anchor utilizes an application-specific “Lifting Eye” to attach rigging to the anchor. The Dog Bone lifting system is ideal for applications requiring quick connect/disconnect, rotation, and repeated handling use. The lifting eye consists of a spherical head that attaches to the dog bone anchor, and a quick connect bail that attaches to the rigging. A key feature is the quick connect bail that can rotate freely through 180º degrees under load. Additionally, the spherical head, or lifting eye, has the ability to rotate 360º degrees while under load. Due to the dynamic nature of the lifting system, use of the Dog Bone anchor for thin slab panels or edge lifting is not recommended.
Dog Bone Anchor
Dog Bone Anchor
Dog Bone Anchor
| Part Number | Size | Safe Working Load | Safety Factor | Ft. Diameter (in.) | Head Diameter (in.) | Wire Diameter (in.) | Height (in.) | Lifting Eye | Recess Former | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_size | hf:att:pa_safe-working-load | hf:att:pa_height | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLDB1T238G | 1T | 1910 | 4:1 | 1 | 3/4 | 3/8 | 2-3/8 | PLLE1T | PLDBRM1T | 8000 | .13 lbs | 300/15,000 | $0.30 | 1t | 1910 | 2-3-8 | |
| PLDB1T258G | 1T | 2000 | 4:1 | 1 | 3/4 | 3/8 | 2-5/8 | PLLE1T | PLDBRM1T | 8000 | .14 lbs | 300/15,000 | $0.32 | 1t | 2000 | 2-5-8 | |
| PLDB1T338G | 1T | 2000 | 4:1 | 1 | 3/4 | 3/8 | 3-3/8 | PLLE1T | PLDBRM1T | 8000 | .16 lbs | 200/15,000 | $0.43 | 1t | 2000 | 3-3-8 | |
| PLDB1T434G | 1T | 2000 | 4:1 | 1 | 3/4 | 3/8 | 4-3/4 | PLLE1T | PLDBRM1T | 8000 | .21 lbs | 100/15,000 | $0.59 | 1t | 2000 | 4-3-4 | |
| PLDB2T234G | 2T | 2510 | 4:1 | 1-3/8 | 1 | 9/16 | 2-3/4 | PLLE2T | PLDBRM2T | 16000 | .30 lbs | 100/5,000 | $0.78 | 2t | 2510 | 2-3-4 | |
| PLDB2T338G | 2T | 3900 | 4:1 | 1-3/8 | 1 | 9/16 | 3-3/8 | PLLE2T | PLDBRM2T | 16000 | .34 lbs | 100/5,500 | $0.86 | 2t | 3900 | 3-3-8 | |
| PLDB2T434G | 2T | 4000 | 4:1 | 1-3/8 | 1 | 9/16 | 4-3/4 | PLLE2T | PLDBRM2T | 16000 | .44 lbs | 100/5,000 | $0.99 | 2t | 4000 | 4-3-4 | |
| PLDB2T512G | 2T | 4000 | 4:1 | 1-3/8 | 1 | 9/16 | 5-1/2 | PLLE2T | PLDBRM2T | 16000 | .49 lbs | 50/4,500 | $1.12 | 2t | 4000 | 5-1-2 | |
| PLDB2T634G | 2T | 4000 | 4:1 | 1-3/8 | 1 | 9/16 | 6-3/4 | PLLE2T | PLDBRM2T | 16000 | .56 lbs | 100/4,000 | $1.29 | 2t | 4000 | 6-3-4 | |
| PLDB2T11G | 2T | 4000 | 4:1 | 1-3/8 | 1 | 9/16 | 11 | PLLE2T | PLDBRM2T | 16000 | .84 lbs | 30/1,500 | $1.78 | 2t | 4000 | 11 | |
| PLDB4T334G | 4T | 4700 | 4:1 | 1-3/4 | 1-7/16 | 11/16 | 3-3/4 | PLLE4T | PLDBRM4T | 32000 | .82 lbs | 50/2,500 | $1.73 | 4t | 4700 | 3-3-4 | |
| PLDB4T414G | 4T | 5450 | 4:1 | 1-3/4 | 1-7/16 | 11/16 | 4-1/4 | PLLE4T | PLDBRM4T | 32000 | .90 lbs | 50/2,500 | $1.83 | 4t | 5450 | 4-1-4 | |
| PLDB4T434G | 4T | 6700 | 4:1 | 1-3/4 | 1-7/16 | 11/16 | 4-3/4 | PLLE4T | PLDBRM4T | 32000 | .94 lbs | 50/2,500 | $1.93 | 4t | 6700 | 4-3-4 | |
| PLDB4T512G | 4T | 8000 | 4:1 | 1-3/4 | 1-7/16 | 11/16 | 5-1/2 | PLLE4T | PLDBRM4T | 32000 | 1.1 lbs | 50/2,000 | $2.12 | 4t | 8000 | 5-1-2 | |
| PLDB4T912G | 4T | 8000 | 4:1 | 1-3/4 | 1-7/16 | 11/16 | 9-1/2 | PLLE4T | PLDBRM4T | 32000 | 1.6 lbs | 20/1,500 | $3.07 | 4t | 8000 | 9-1-2 | |
| PLDB4T718G | 4T | 8000 | 4:1 | 1-3/4 | 1-7/16 | 11/16 | 7-1/8 | PLLE4T | PLDBRM4T | 32000 | 1.3 lbs | 25/1,600 | $2.69 | 4t | 8000 | 7-1-8 | |
| PLDB8T434G | 8T | 7450 | 4:1 | 2-3/8 | 1-13/16 | 1-1/8 | 4-3/4 | PLLE8T | PLDBRM8T | 64000 | 2 lbs | 20/1,000 | $4.19 | 8t | 7450 | 4-3-4 | |
| PLDB8T634G | 8T | 12580 | 4:1 | 2-3/8 | 1-13/16 | 1-1/8 | 6-3/4 | PLLE8T | PLDBRM8T | 64000 | 2.5 lbs | 20/1,000 | $5.14 | 8t | 12580 | 6-3-4 | |
| PLDB8T834G | 8T | 16000 | 4:1 | 2-3/8 | 1-13/16 | 1-1/8 | 8-3/4 | PLLE8T | PLDBRM8T | 64000 | 2.58 lbs | 20/1,000 | $5.14 | 8t | 16000 | 8-3-4 | |
| PLDB8T10G | 8T | 16000 | 4:1 | 2-3/8 | 1-13/16 | 1-1/8 | 10 | PLLE8T | PLDBRM8T | 64000 | 3.3 lbs | 500/crate | $7.03 | 8t | 16000 | 10 | |
| PLDB8T1338G | 8T | 16000 | 4:1 | 2-3/8 | 1-13/16 | 11/16 | 13-3/8 | PLLE8T | PLDBRM8T | 64000 | 4.3 lbs | 450/crate | $8.53 | 8t | 16000 | 13-3-8 | |
| PLDB8T10G | 20T | 21500 | 4:1 | 3-7/8 | 2-7/8 | 1-5-8 | 10 | PLLE20T | PLDBRM20T | 160000 | 7.7 lbs | N/A | $20.59 | 20t | 21500 | 10 | |
| PLDB20T10G | 20T | 21500 | 4:1 | 3-7/8 | 2-7/8 | 1-5-8 | 10 | PLLE20T | PLDBRM20T | 160000 | 7.7 lbs | N/A | $20.59 | 20t | 21500 | 10 | |
| PLDB20T1934G | 20T | 40000 | 4:1 | 3-7/8 | 2-7/8 | 1-5-8 | 19-3/4 | PLLE20T | PLDBRM20T | 160000 | 13.2 lbs | N/A | $34.78 | 20t | 40000 | 19-3-4 |
