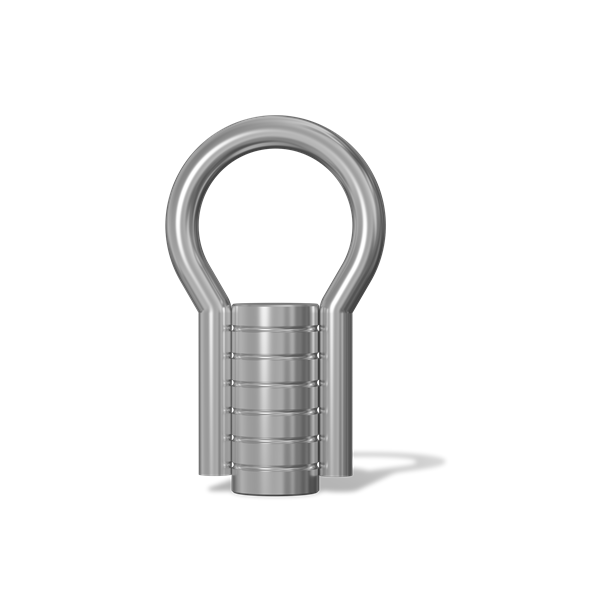

Our Ferrule Loop Insert is tapped to accept an NC threaded bolt, providing for fixation to concrete elements. Proper installation requires the insert to be cast perpendicular to the face of the element, with the opening to the threads level to the face of the element. Any misalignment of the insert will result in a reduction of safe working load capacity.
Ferrule Loop Insert
Ferrule Loop Inserts
Ferrule Loop Inserts
| Part Number | Thread Size (In.) | Threads (in.) | Ferrule Length | Overall Length | Width | Wire Diameter (in.) | Finish | Radius | Safe Working Load | Safety Factor | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_thread-size-in | hf:att:pa_overall-length | hf:att:pa_width | hf:att:pa_finish | hf:att:pa_safe-working-load | hf:att:pa_ult-mech-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FI14LZ | 1/4 | 20 | 1-1/4 | 2-3/4 | .243 | Zinc-Plated | 9/16 | 2000 | 3:1 | 6000 | .14 lbs | 400/crate | $1.01 | 1-4 | 2-3-4 | zinc-plated | 2000 | 6000 | |||
| FI38LZ | 3/8 | 16 | 1-1/4 | 2-3/4 | .243 | Zinc-Plated | 9/16 | 2000 | 3:1 | 6000 | .13 lbs | 200/crate | $1.05 | 3-8 | 2-3-4 | zinc-plated | 2000 | 6000 | |||
| FI38LP | 3/8 | 16 | 1-1/4 | 2-3/4 | .243 | Plain | 9/16 | 2000 | 3:1 | 6000 | .13 lbs | 200/crate | $0.79 | 3-8 | 2-3-4 | plain | 2000 | 6000 | |||
| FI12LZ | 1/2 | 13 | 1-3/8 | 2-3/4 | .243 | Zinc-Plated | 9/16 | 2000 | 3:1 | 6000 | .18 lbs | 150/crate | $1.18 | 1-2 | 2-3-4 | zinc-plated | 2000 | 6000 | |||
| FI58LZ | 5/8 | 11 | 1-5/8 | 3-1/2 | .262 | Zinc-Plated | 13/16 | 2300 | 3:1 | 6900 | .28 lbs | 90/crate | $1.57 | 5-8 | 3-1-2 | zinc-plated | 2300 | 6900 | |||
| FI34LZ | 3/4 | 10 | 1-5/8 | 3-1/2 | .262 | Zinc-Plated | 13/16 | 2500 | 3:1 | 7500 | .31 lbs | 80/crate | $1.67 | 3-4 | 3-1-2 | zinc-plated | 2500 | 7500 | |||
| FI78LZ | 7/8 | 9 | 1-5/8 | 6 | .375 | Zinc-Plated | 1-3/8 | 5300 | 3:1 | 15900 | .74 lbs | 30/crate | $3.35 | 7-8 | 6 | zinc-plated | 5300 | 15900 | |||
| FI1LZ | 1 | 8 | 1-5/8 | 6 | .375 | Zinc-Plated | 1-3/8 | 5300 | 3:1 | 15900 | .75 lbs | 25/crate | $3.91 | 1 | 6 | zinc-plated | 5300 | 15900 | |||
| FI14LSS | 1/4 | 20 | 1-1/4 | 2-3/4 | .223 | Stainless Steel | 5/8 | N/A | N/A | N/A | .14 lbs | N/A | $2.98 | 1-4 | 2-3-4 | stainless-steel | n-a | n-a | |||
| FI38LSS | 3/8 | 16 | 1-1/4 | 2-3/4 | .306 | Stainless Steel | 5/8 | 2000 | 3:1 | 6000 | .13 lbs | 100/crate | $4.19 | 3-8 | 2-3-4 | stainless-steel | 2000 | 6000 | |||
| FI12LSS | 1/2 | 13 | 1-3/8 | 2-3/4 | .223 | Stainless Steel | 5/8 | 2000 | 3:1 | 6000 | .18 lbs | 300/crate | $5.48 | 1-2 | 2-3-4 | stainless-steel | 2000 | 6000 | |||
| FI34LSS | 3/4 | 10 | 1-5/8 | 3-1/2 | .306 | Stainless Steel | 7/8 | 2000 | 3:1 | 7500 | .31 lbs | 80/crate | $8.29 | 3-4 | 3-1-2 | stainless-steel | 2000 | 7500 |
