HawkeyePedershaab Double Cage Box Section Spacers

SKU: N/A Category:

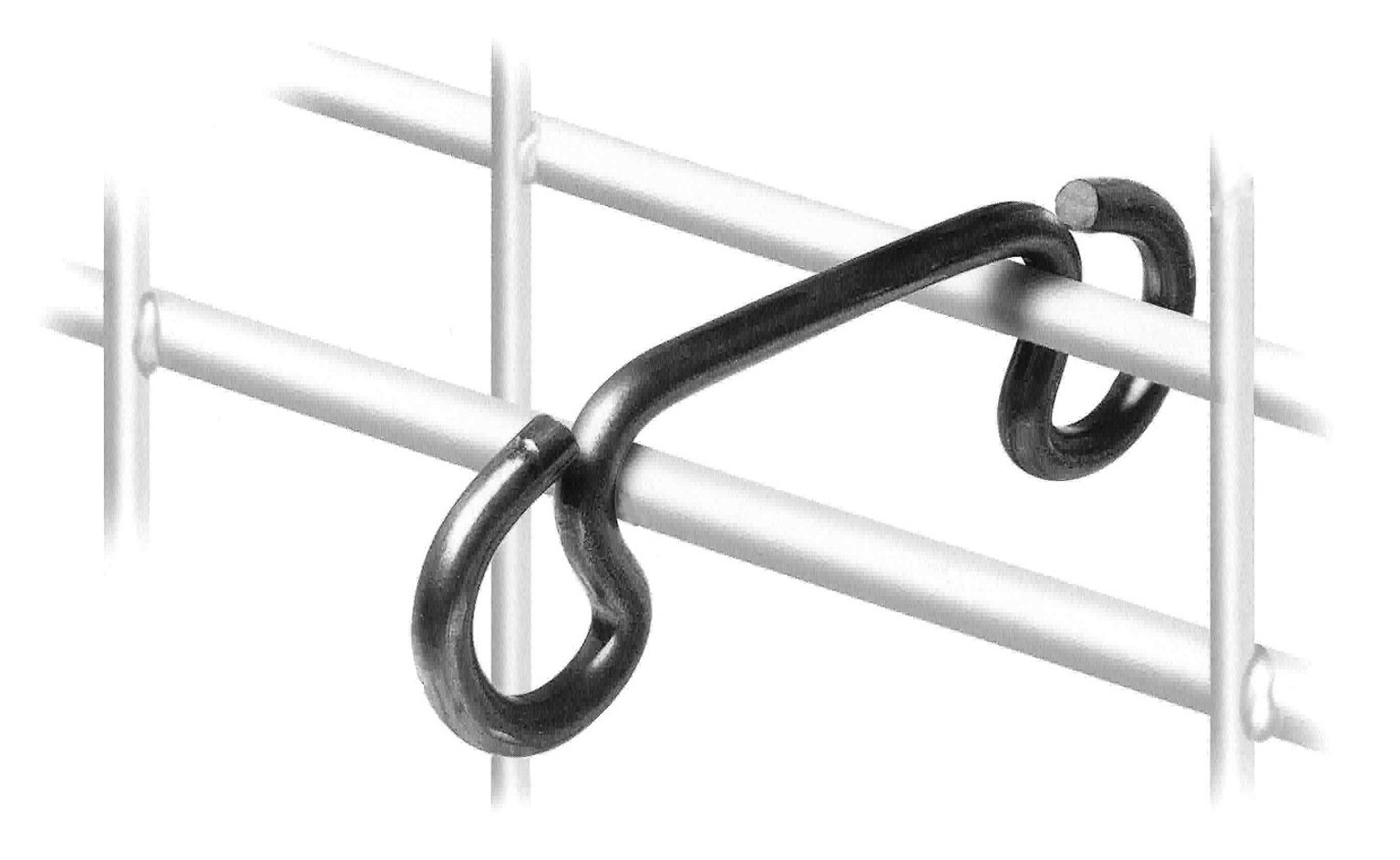

The HawkeyePedershaab Box Section spacer is an accurate, simple, low-cost method of spacing reinforcement cages in concrete box sections. The Box Section Spacer greatly simplifies the accurate placement of box reinforcement.

Key Benefits

  • Made in the USA. USA-made steel.
  • Fits any mesh spacing
  • Standard sizes available for 5” through 12” wall thicknesses. Larger sizes available upon request – check with our sales department.
  •  1-1/4″, 1-1/2″ and 2″cover sizes available upon request.
  • 1″ concrete cover sizes are in stock for immediate shipment

To request a quote online, find your products in the table below, enter your quantities and click “Add to Quote” for each item you want quoted. When finished, click the “View cart” link to complete and submit your request. If you are ready to order, use the same form and include your P.O. (if applicable) and any shipping or special instructions in the comments field.

HawkeyePedershaab Double Cage Box Section Spacers

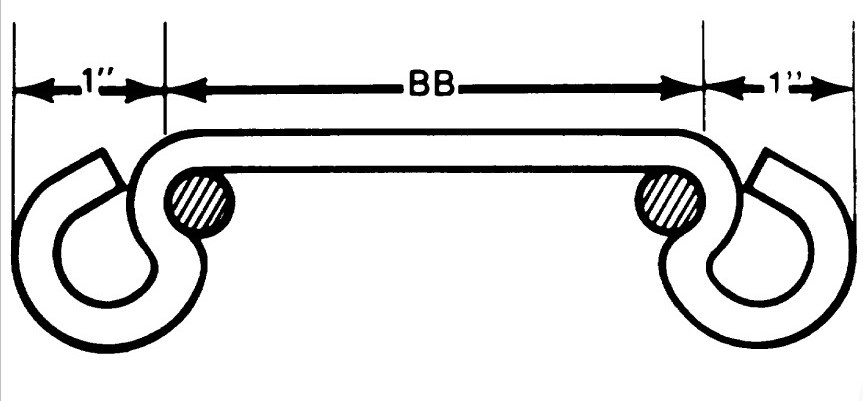

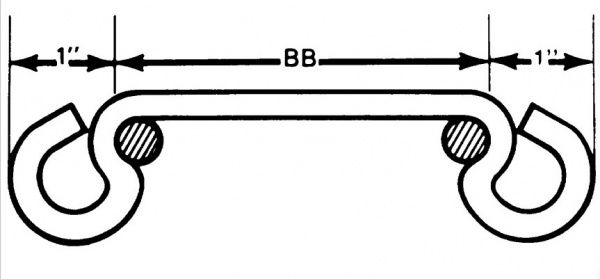

Part NumberCoverB.B. DimensionsWall ThicknessQty per Box/Bag/DrumBox/SkidReinforcement TypePriceBox/Bag/Drumhf:att:pa_coverhf:att:pa_b-b-dimensionshf:att:pa_wall-thickness
BS-1.00-2.75-1.001"-1"2.75"5"250/box45Wire$0.00
Add to Quote
1-12-755
BS-1.00-5.75-1.001"-1"5.75"8"250/box45Wire$0.00
Add to Quote
1-15-758
BS-1.00-3.75-1.001"-1"3.75"6"250/box45Wire$0.00
Add to Quote
1-13-756
BS-1.00-6.75-1.001"-1"6.75"9"250/box45Wire$0.00
Add to Quote
1-16-759
BS-1.00-7.75-1.001"-1"7.75"10"200/box45Wire$0.00
Add to Quote
1-17-7510
BS-1.00-4.75-1.001"-1"4.75"7"250/box45Wire$0.00
Add to Quote
1-14-757
BS-1.00-8.75-1.001"-1"8.75"11"200/box45Wire$0.00
Add to Quote
1-18-7511
BS-1.00-9.75-1.001"-1"9.75"12"150/box45Wire$0.00
Add to Quote
1-19-7512
