Heavy Duty Coupler Tie Rod
Heavy Duty Coupler Tie Rod
Heavy Duty Coupler - Std Style A Final
Heavy Duty Coupler - Std Style B Final

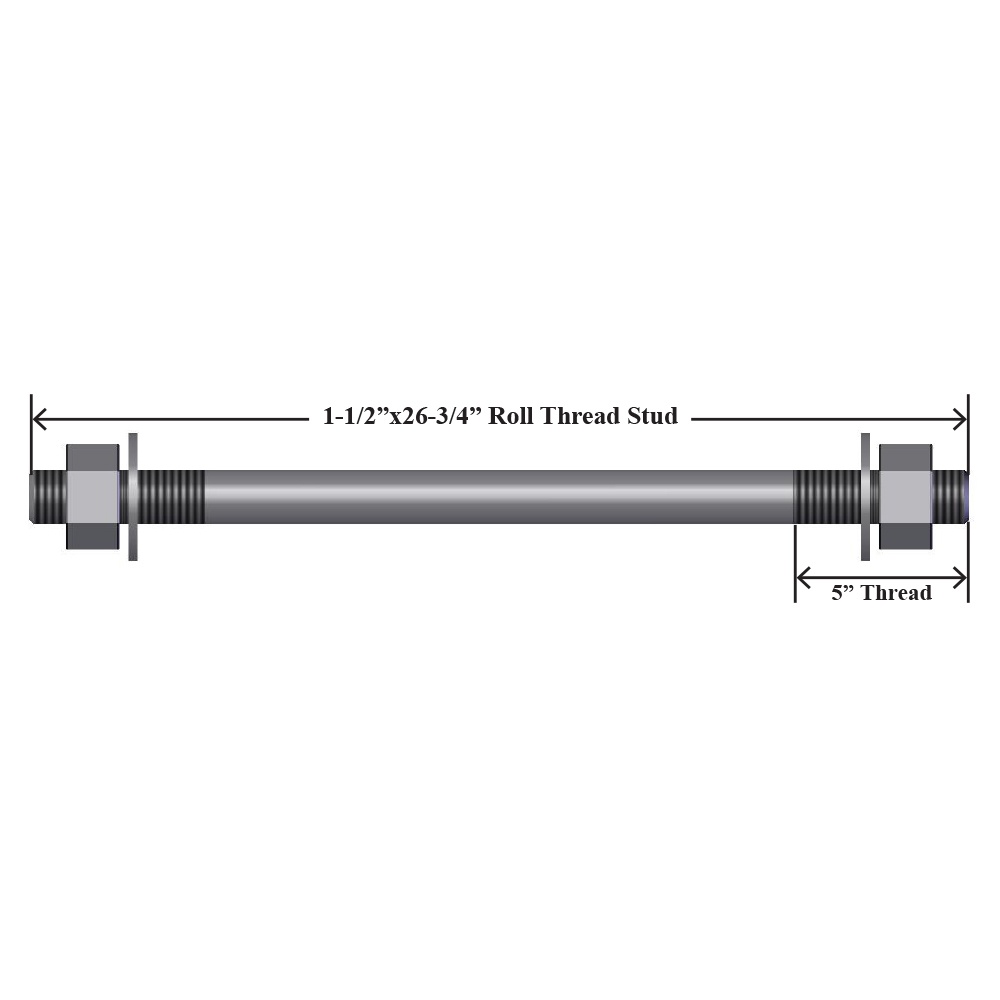

Heavy Duty Coupler - BC Rod Final

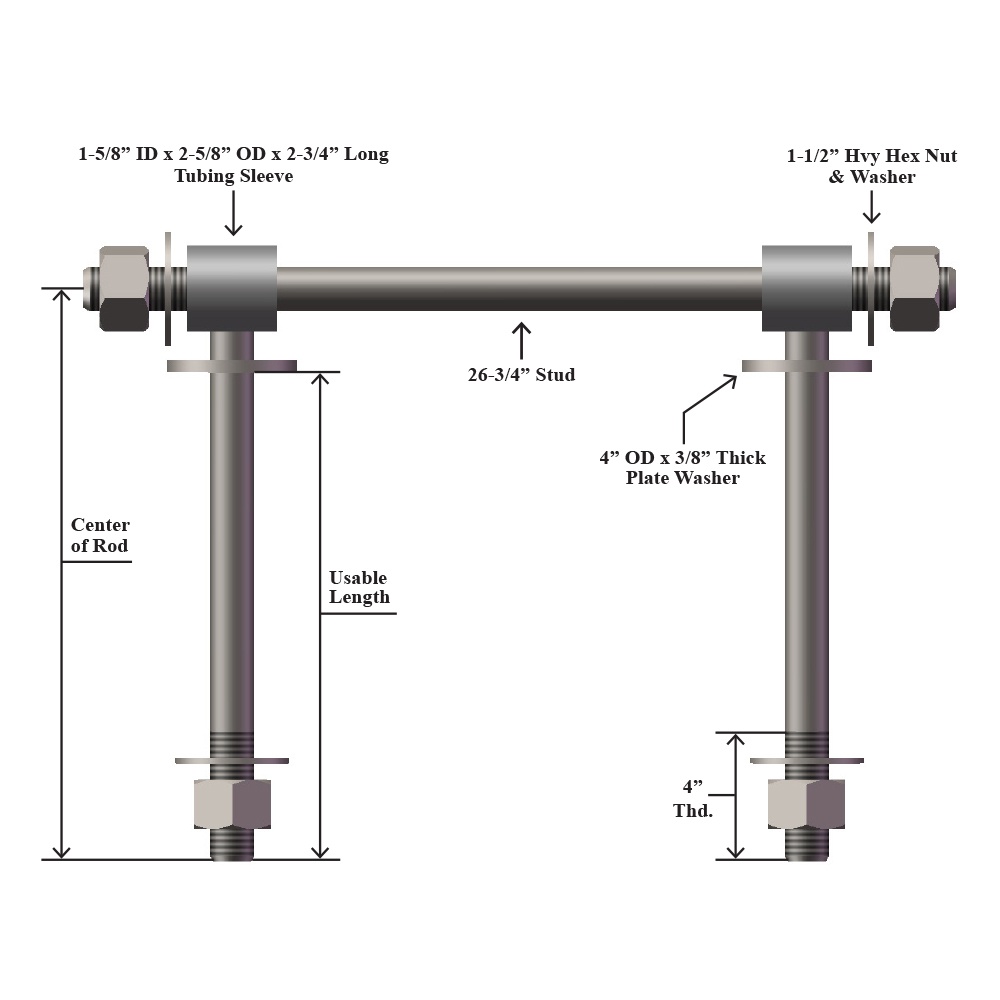

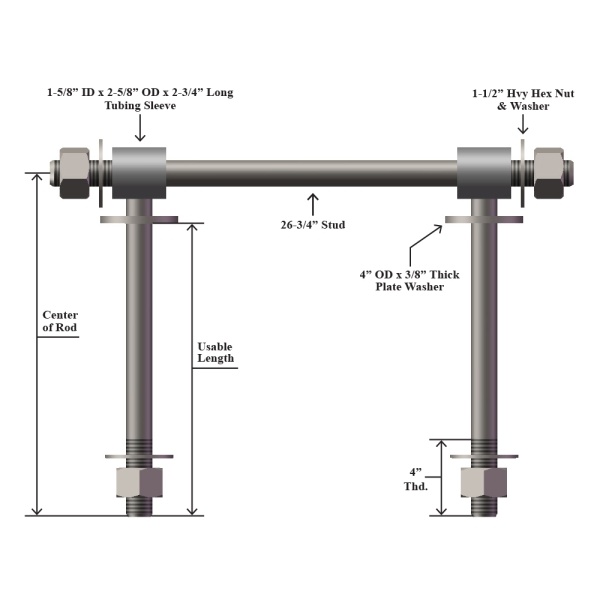

Heavy Duty Coupler - BNR Style Final

Heavy Duty Coupler Tie Rods

Available options
SKU: N/A Categories: ,
Contact Sales Rep

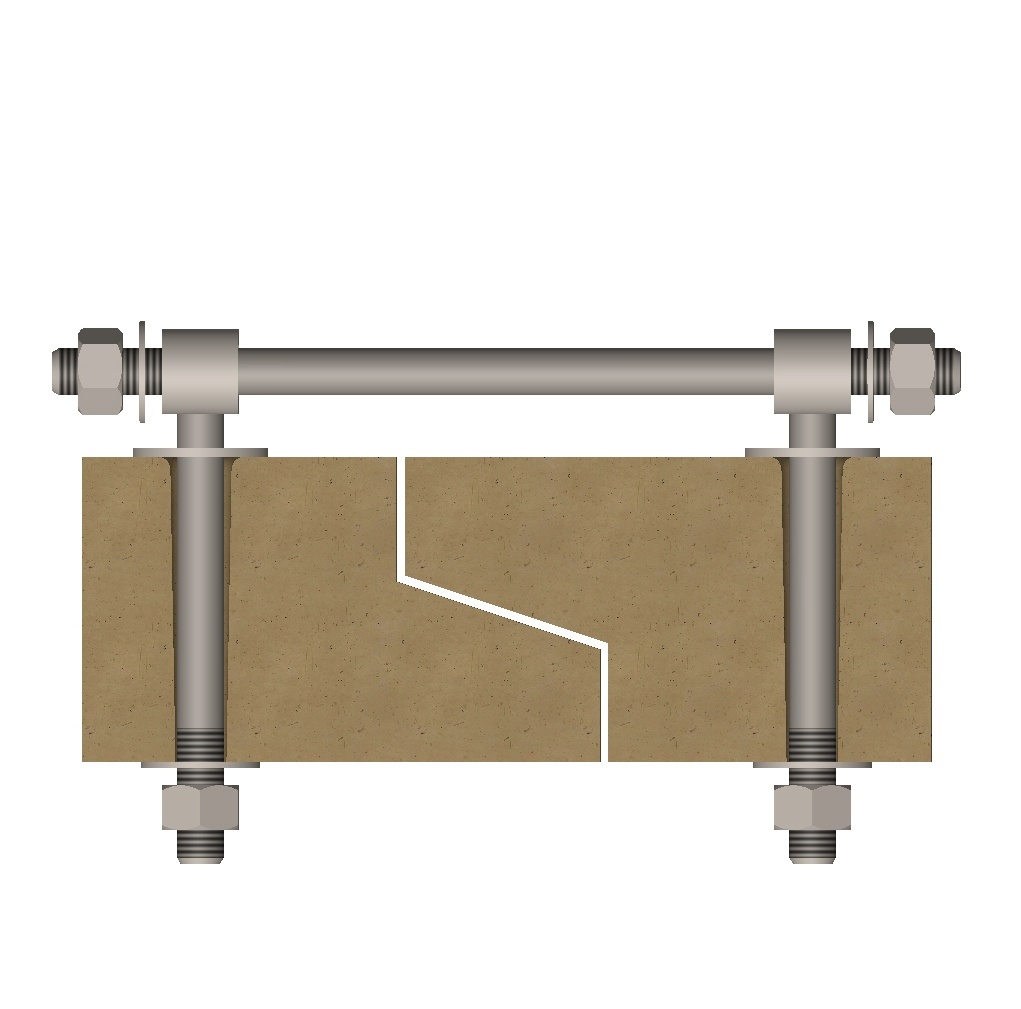

Heavy Duty Couplers for large boxes or bridges.

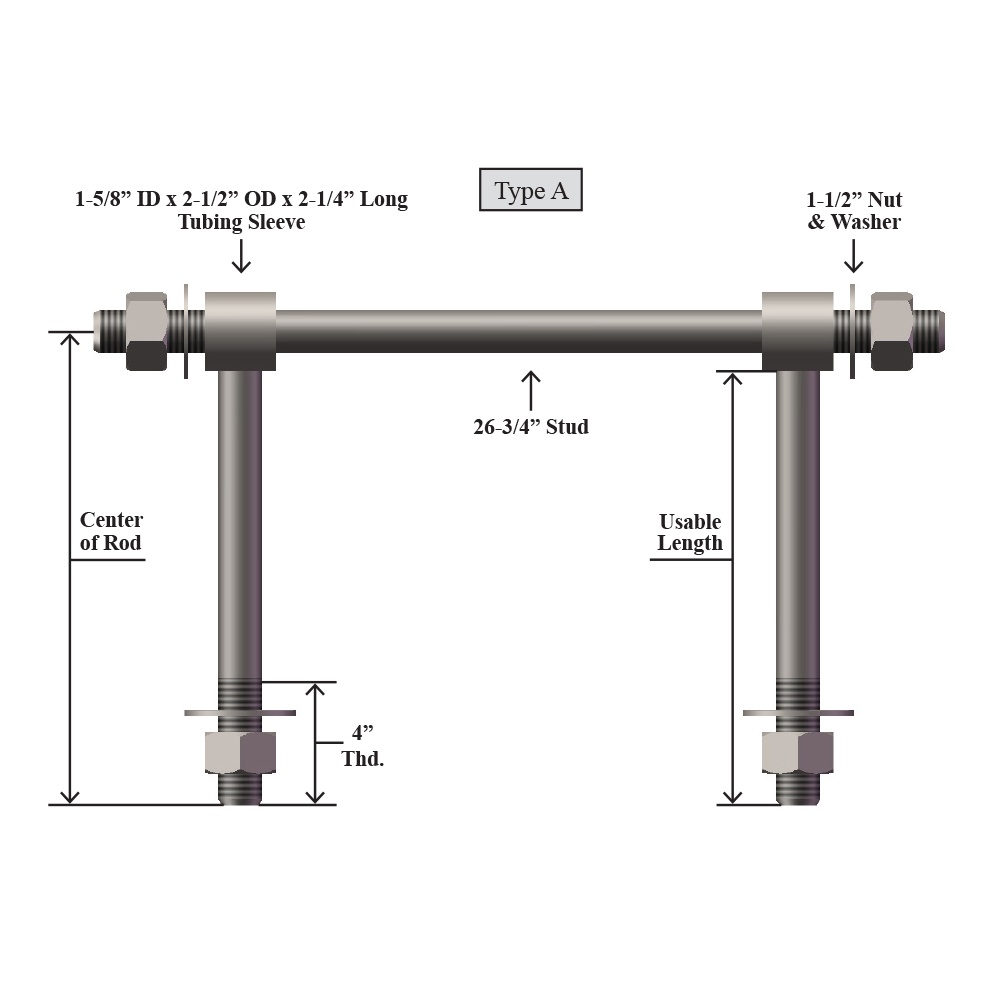

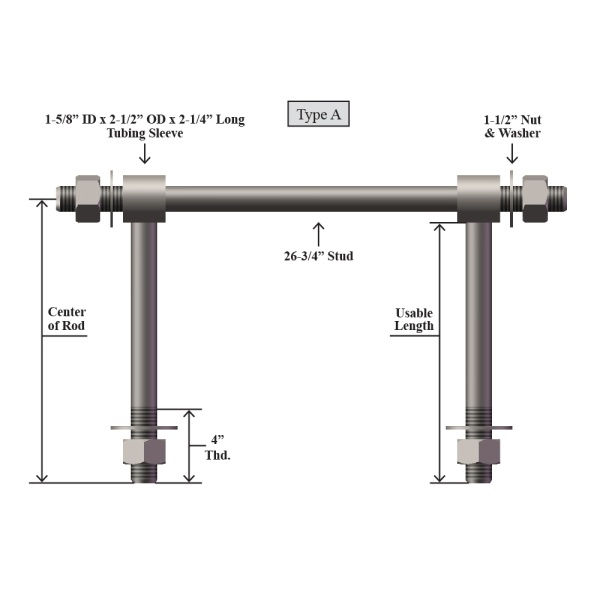

  • Type A Couplers are unflanged

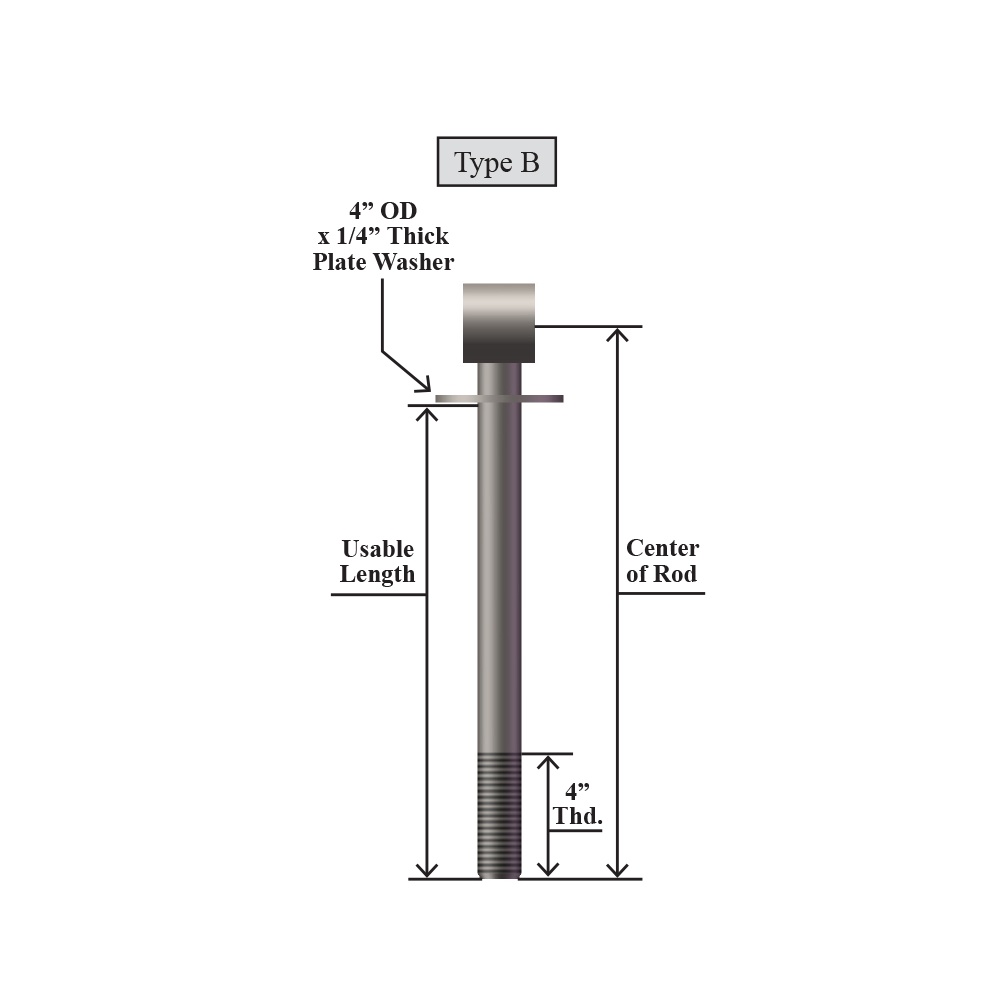

  • Type B Couplers are flanged (washer welded below coupler head)

Can be built to your specifications.

Rod and couplers are hot dip galvanized in accordance with the requirements of ASTM F2329.

Each assembly includes the following fasteners: (4) Hex Nuts, ASTM A563 and (4) Washers, both hot dip galvanized in accordance with the requirements of ASTM F2329.

Made of import and domestic material. Certifications are available upon request.

Heavy Duty Coupler Tie Rods

Part NumberLeg LengthWall ThicknessCenter of RodRod AngleThread LengthPrice (Each)hf:att:pa_leg-lengthhf:att:pa_wall-thickness
BC12A10-5/8"8"12"904"$258.68
Each
Add to Quote
10-5-88
BC12B12"10"14.5"904"$293.09
Each
Add to Quote
1210
BC14A12-5/8"10"14"904"$260.44
Each
Add to Quote
12-5-810
BC14B14"12"16.5"904"$295.20
Each
Add to Quote
1412
BC15A13-5/8"11"17.5"904"$262.60
Each
Add to Quote
13-5-811
BC15B15"13"17.5"904"$301.25
Each
Add to Quote
1513
BC16A14-5/8"12"16"904"$264.33
Each
Add to Quote
14-5-812
BC16B16"14"18.5"904"$303.55
Each
Add to Quote
1614
BC11BNR11"7-9"13.56"904"$311.24
Each
Add to Quote
117-9
BC15BNR15"11-13"17.56"904"$330.48
Each
Add to Quote
1511-13
