Outlet Screens

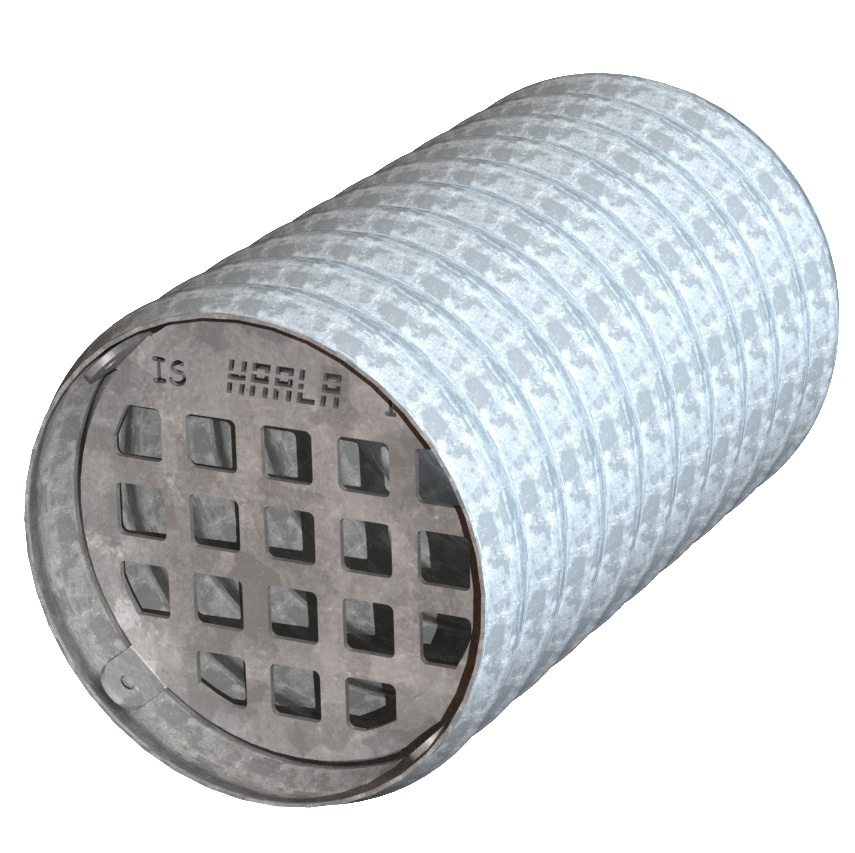

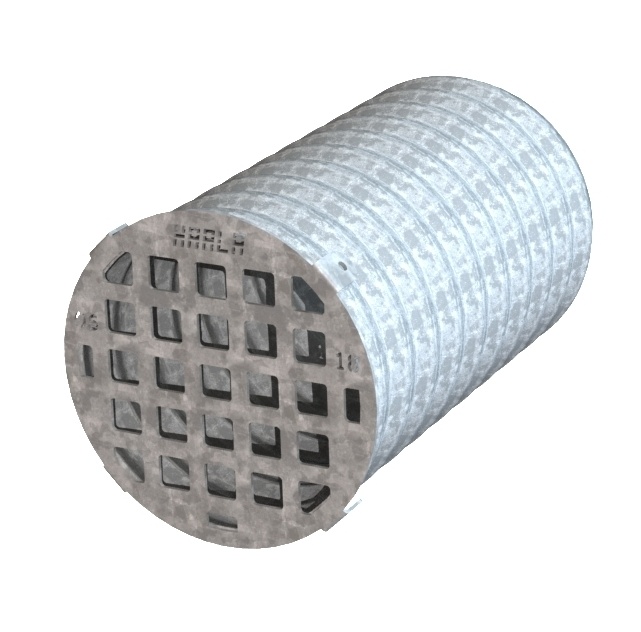

CMP and HDPE Outlet Screens designed to mount on an inlet or outlet pipe and prevent small debris from passing through. Screens are available as inside or outside mounting. Outside mounts are sized to fit CMP. Inside mounts can be installed in any style of pipe.

  • Plate design is durable and clean
  • 1/4″ plate thickness
  • Typical openings are 2″ but also available as 1″ and custom sizes
  • Includes 4 mounting tabs for through bolts or self drilling screws
  • Galvanized steel construction. Can be made from aluminum or stainless steel.
  • Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

Outlet Screens

Part NumberPipe Size (in)Grate ODPlate ThicknessPrice (Each)hf:att:pa_grate-odhf:att:pa_plate-thickness
OS1212141/4"$196.00
Each
Add to Quote
141-4
OS12-112141/4"$230.00
Each
Add to Quote
141-4
OS1515171/4"$225.00
Each
Add to Quote
171-4
OS1818201/4"$261.00
Each
Add to Quote
201-4
OS2424261/4"$392.00
Each
Add to Quote
261-4
OS24-124261/4"$477.00
Each
Add to Quote
261-4
OS3030321/4"$608.00
Each
Add to Quote
321-4
OS3636381/4"$830.00
Each
Add to Quote
381-4
OS4848501/4"$1,303.00
Each
Add to Quote
501-4
OS12IS1211-1/21/4"$196.00
Each
Add to Quote
11-1-21-4
OS15IS1514-1/21/4"$225.00
Each
Add to Quote
14-1-21-4
OS18IS1817-1/21/4"$261.00
Each
Add to Quote
17-1-21-4
OS24IS2423-1/21/4"$392.00
Each
Add to Quote
23-1-21-4
OS303029-1/21/4"$608.00
Each
Add to Quote
29-1-21-4
OS36IS3635-1/21/4"$830.00
Each
Add to Quote
35-1-21-4
OS48IS4847-1/21/4"$1,303.00
Each
Add to Quote
47-1-21-4
