Ring Clutches

SKU: N/A Categories: ,

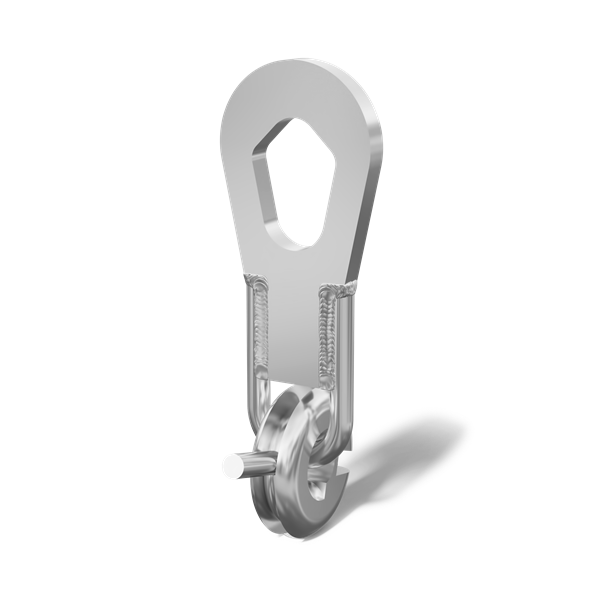

Ring Clutch
The Ring Clutch is a lifting assembly consisting of a bail, clutch, and curved bolt handle. To correctly use the clutch, slide the curved bolt to the open position, and then slide it closed when aligned with the lifting anchor opening.

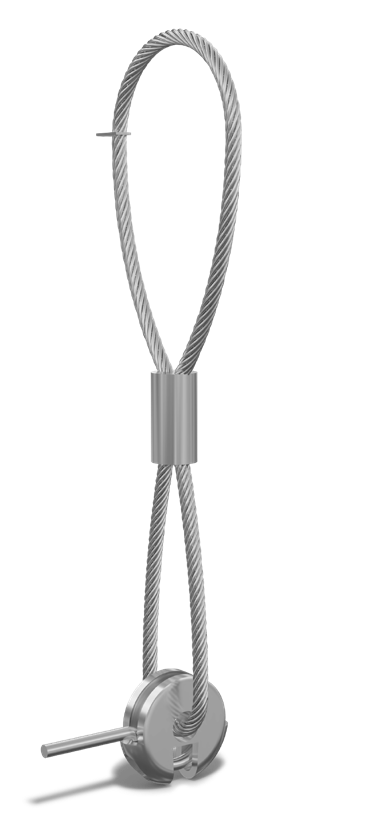

Cable Ring Clutch
The Cable Ring Clutch is a lifting assembly consisting of a cable with swage, clutch, and curved bolt handle. To correct-ly use the clutch, slide the curved bolt to the open position, and then slide it closed when aligned with the lifting anchor opening.



NOTE:   The size 2-3 is meant to lift any 2T flat-steel lifting anchor,  4-6 is meant to lift 4T flat steel anchors and 8-11 lifts 8T sized flat steel anchors.

Ring Clutches

Part NumberDescriptionSafe Working LoadSafety FactorSizeUlt. Mech. LoadItem Wt./ea.hf:att:pa_safe-working-loadhf:att:pa_size
PLRC23TRing Lifting Clutch60005:12-3300004.38 lbs
Each
Add to Quote
60002-3
PLRC46TRing Lifting Clutch120005:14-6600007.89 lbs
Each
Add to Quote
120004-6
PLRC811TRing Lifting Clutch220005:18-1111000024.52 lbs
Each
Add to Quote
220008-11
PLCRC23TCable Ring Lifting Clutch60005:12-3300004.69 lbs
Each
Add to Quote
60002-3
PLCRC46TCable Ring Lifting Clutch120005:14-6600009.13 lbs
Each
Add to Quote
120004-6
PLCRC811TCable Ring Lifting Clutch220005:18-1111000021.56 lbs
Each
Add to Quote
220008-11
