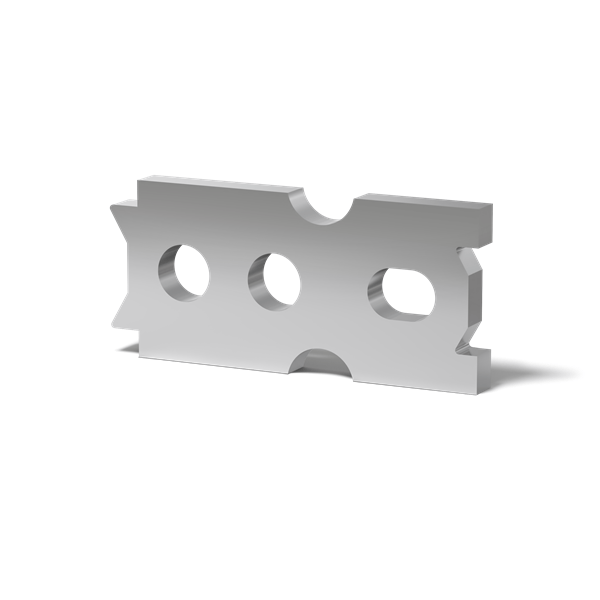

The erection head anchor is designed for lifting and handling of thin-walled precast elements. The anchor accepts both tension and shear bars and when used will provide the respective capacities shown below. A tension bar should be used in all applications.
Erection Head Anchor
Erection Head Anchors
Erection Head Anchors
| Part Number | Size | Width | Overall Length | Safe Working Load | Safety Factor | Head to Cutout | Hole Diameter | Thickness | Shear Plate Length | Shear Plate Width | Shear Plate Thickness | Lifting Clutch | Recess Former | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_size | hf:att:pa_width | hf:att:pa_overall-length | hf:att:pa_safe-working-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLEHA2T | 2T | 2 | 4-3/8 | 4000 | 4:1 | 1-13/16 | 5/8 | 3/8 | N/A | N/A | N/A | PLRC23T | PLRM2 | 16000 | .76 lbs | 3000 | $1.46 | 2t | 2 | 4-3-8 | 4000 | |
| PLEHA4T | 4T | 2-1/2 | 7-7/16 | 8000 | 4:1 | 2-1/2 | 3/4 | 5/8 | N/A | N/A | N/A | PLRC46T | PLRM46 | 32000 | 2.77 lbs | 720 | $6.40 | 4t | 2-1-2 | 7-7-16 | 8000 | |
| PLEHA2TSP | 2T | 2 | 4-3/8 | 4000 | 4:1 | 1-13/16 | 5/8 | 3/8 | 3 | 2-1/2 | 1/4 | PLRC23T | PLRM2 | 16000 | 1.63 lbs | 1800 | $2.32 | 2t | 2 | 4-3-8 | 4000 | |
| PLEHA4TSP | 4T | 2-1/2 | 7-7/16 | 8000 | 4:1 | 2-1/2 | 3/4 | 5/8 | 3 | 2-1/2 | 3/8 | PLRC46T | PLRM46 | 32000 | 3.62 lbs | 500 | $7.58 | 4t | 2-1-2 | 7-7-16 | 8000 | |
| PLEHA8TSP | 8T | 3-3/4 | 13-1/4 | 16000 | 4:1 | 3-1/8 | 1 | 13/16 | 3-1/2 | 3 | 3/8 | PLRC811T | PLRM811 | 64000 | 11.03 lbs | 170 | $22.69 | 8t | 3-3-4 | 13-1-4 | 16000 |
