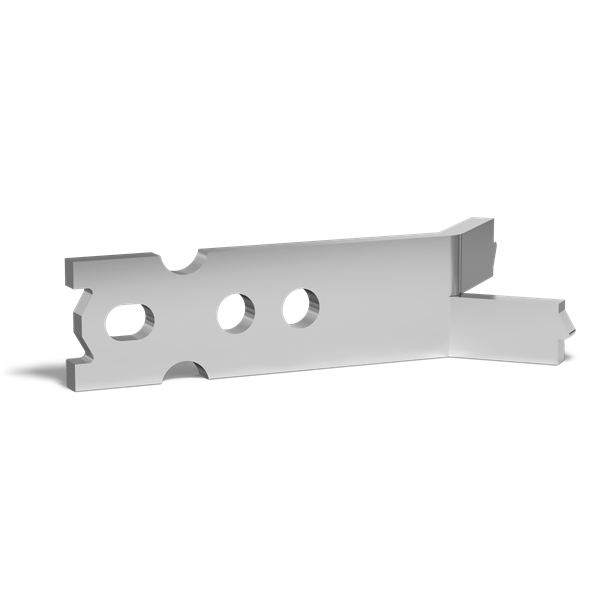

The Split Foot Erection Anchor is a unique insert for the lifting and handling of thin-walled precast elements. The insert is designed for horizontal to vertical edge lifting and handling of slabs of appropriate thickness. Similar to the standard Erection Anchor, the Split Foot Erection Anchor has a specialized design at the head of the anchor to prevent spalling of the concrete while loaded. The anchor may be used with a wraparound shear bar if not equipped with a shear plate and, if needed, a tension bar to reach higher tensile capacities.
Split Foot Erection Anchor
Split Foot Erection Anchors
Split Foot Erection Anchors
| Part Number | Safe Working Load | Safety Factor | Foot Split | Head to Cutout | Hole Diameter | Overall Length | Width | Thickness | Size | Ult. Mech. Load Tension | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_safe-working-load | hf:att:pa_overall-length | hf:att:pa_size | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLSFEA1T | 2000 | 4:1 | 1-3/4 | 1-1/16 | 3/8 | 4-3/4 | 1-1/8 | 7/32 | 1T | 8000 | 1.69 lbs | N/A | $1.58 | 2000 | 4-3-4 | 1t | |
| PLSFEA2T | 4000 | 4:1 | 3-1/8 | 1-3/4 | 5/8 | 8 | 2 | 3/8 | 2T | 16000 | 1.69 lbs | 1100/crate | $3.47 | 4000 | 8 | 2t | |
| PLSFEA4T | 8000 | 4:1 | 4 | 2-3/8 | 3/4 | 10-1/2 | 2-1/2 | 5/8 | 4T | 32000 | 4.37 lbs | 400/crate | $9.04 | 8000 | 10-1-2 | 4t | |
| PLSFEA8T | 16000 | 4:1 | 5 | 3-1/8 | 1 | 12-7/8 | 3-3/4 | 3/4 | 4T | 64000 | 9.93 lbs | 200/crate | $19.72 | 16000 | 12-7-8 | 4t | |
| PLSFEA2TSP | 4000 | 4:1 | 3-1/8 | 1-3/4 | 5/8 | 8 | 2 | 3/8 | 2T | 16000 | 2.62 lbs | 850/crate | $4.57 | 4000 | 8 | 2t | |
| PLSFEA4TSP | 8000 | 4:1 | 4 | 2-3/8 | 3/4 | 10-1/2 | 2-1/2 | 5/8 | 4T | 32000 | 5.32 lbs | 350/crate | $10.65 | 8000 | 10-1-2 | 4t | |
| PLSFEA8TSP | 16000 | 4:1 | 5 | 3-1/8 | 1 | 12-7/8 | 3-3/4 | 3/4 | 8T | 64000 | 11.24 lbs | 200/crate | $22.36 | 16000 | 12-7-8 | 8t |
