The Tech Erection Anchor is designed for use with precast elements during the edge lifting and rotation/handling process. If desired, the anchor utilizes a shear plate and tension bar that loops through the anchor to distribute the load into the concrete.

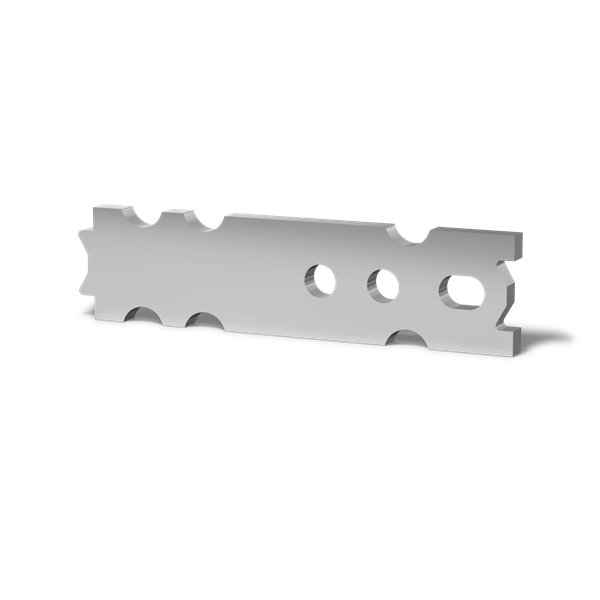

Tech Erection Anchor

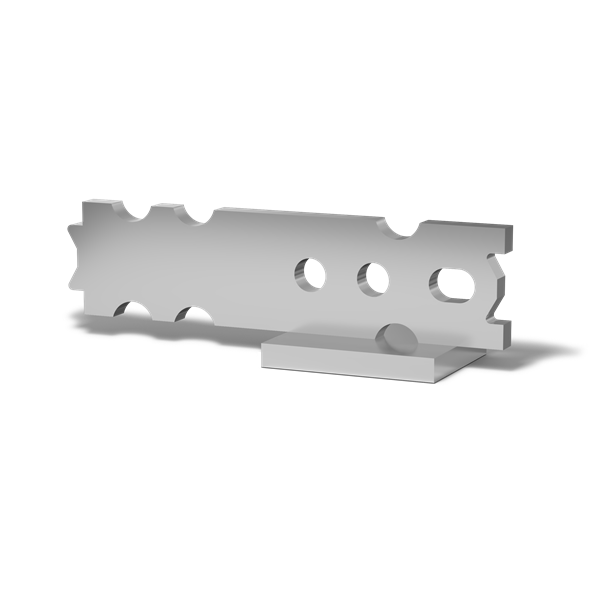

Tech Erection Anchor/sp
Tech Erection Anchor
Tech Erection Anchor
| Part Number | Size | Safe Working Load | Safety Factor | Overall Length | Width | Thickness | Head to Cutout | Shear Plate Length | Shear Plate Width | Shear Plate Thickness | Hole Diameter | Lifting Clutch | Recess Former | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_size | hf:att:pa_safe-working-load | hf:att:pa_overall-length | hf:att:pa_ult-mech-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLTEA2T | 2T | 4000 | 4:1 | 8 | 2 | 3/8 | 1-13/16 | N/A | N/A | N/A | 3/16 | PLRC23T | PLRM2 | 16000 | 1.50 lbs | 2000/crate | $3.29 | 2t | 4000 | 8 | 16000 | |
| PLTEA4T | 4T | 8000 | 4:1 | 10-1/2 | 2-1/2 | 5/8 | 2-1/2 | N/A | N/A | N/A | 3/4 | PLRC46T | PLRM46 | 32000 | 4.01 lbs | 500/crate | $8.23 | 4t | 8000 | 10-1-2 | 32000 | |
| PLTEA8T | 8T | 16000 | 4:1 | 12-13/16 | 3-3/4 | 3/4 | 3-13/16 | N/A | N/A | N/A | 1 | PLRC811T | PLRM811 | 64000 | 8.93 lbs | 250/crate | $18.21 | 8t | 16000 | 12-13-16 | 64000 | |
| PLTEA2TSP | 2T | 4000 | 4:1 | 8 | 2 | 3/8 | 1-13/16 | 3 | 2-1/2 | 3/8 | 3/16 | PLRC23T | PLRM2 | 16000 | 2.33 lbs | 1000/crate | $4.25 | 2t | 4000 | 8 | 16000 | |
| PLTEA4TSP | 4T | 8000 | 4:1 | 10-1/2 | 2-1/2 | 5/8 | 2-1/2 | 3 | 2-1/2 | 3/8 | 3/4 | PLRC46T | PLRM46 | 32000 | 4.80 lbs | 400/crate | $9.63 | 4t | 8000 | 10-1-2 | 32000 | |
| PLTEA8TSP | 8T | 16000 | 4:1 | 12-13/16 | 3-3/4 | 3/4 | 3-13/16 | 3-1/2 | 3 | 3/8 | 1 | PLRC811T | PLRM811 | 64000 | 9.91 lbs | 200/crate | $21.50 | 8t | 16000 | 12-13-16 | 64000 |
