Pallets play a crucial role in precast concrete product manufacturing. They are the base for concrete forms and provide a stable and level platform for casting.
For this reason, it is extremely important that pallets are well-supported to mitigate safety risks and maintain product integrity. Despite the importance of
well-supported pallets, many producers have traditionally relied upon on homemade methods or multi-step processes that can be unreliable and labor intensive.
Until now!
Introducing SmartJax™
A revolutionary way to firmly stool up pallets inside concrete forms.
Benefits of SmartJax™
Simply Genius!

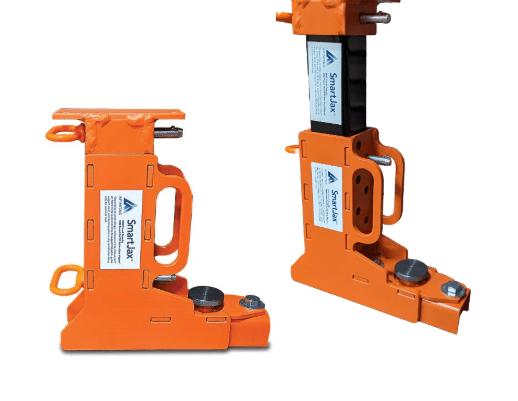

You will love the speed and convenience of having a single unit to support and secure your pallet. Stand and magnets all-in-one.
Safe
Say goodbye to the splintering and unreliability of using wood pieces, PVC or hollow core concrete traditionally used as supports.
Strong
our stand is built to last as a heavy steel fabricated weldment.
Speedy
Multiple hole locations in the support tube make pin-facilitated height adjustment quick and easy.

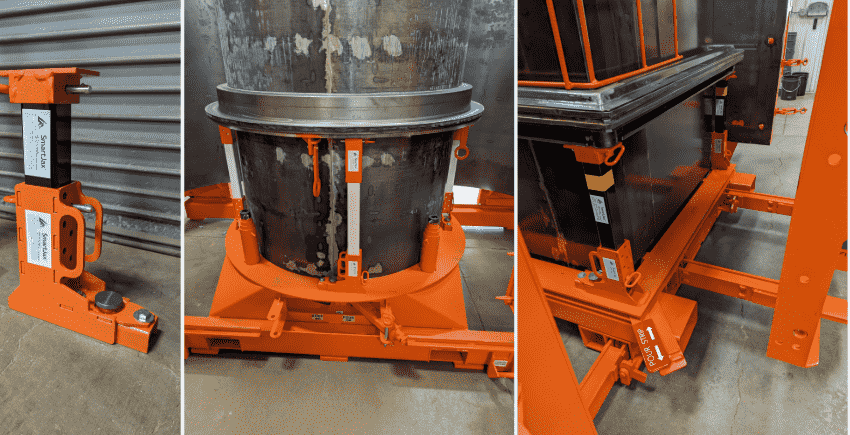

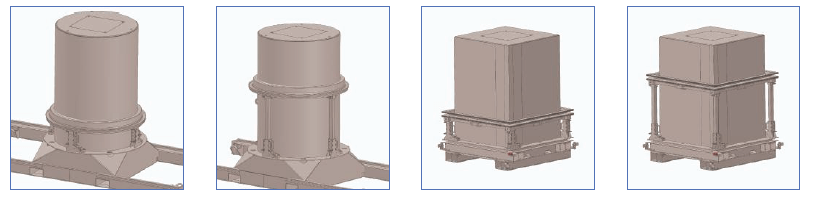

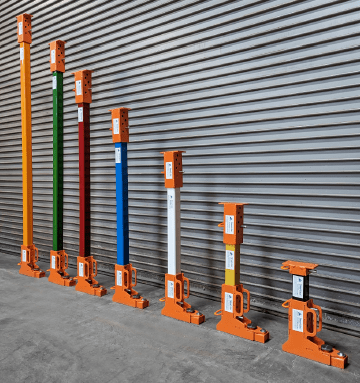

SmartJax is designed to help you work safer and more efficiently. Perfect for use with wetcast manhole forms and boxes. SmartJax can be used with any form where the pallet needs to be stooled up.
SmartJax Product Highlights
- 8000 lb. capacity*

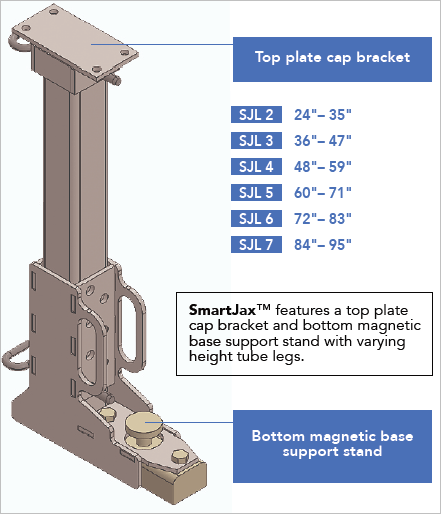

- 12” overall height with adjustment from 12”to 23”in 1” increments – making it simple to size to your requirements
- 1000 lb. on/off button base magnet for attachment to form sub-base
- Interchangeable leg tube heights
IMPORTANT: Always consider the dangers when lifting and rolling over product and equipment. Always inspect any lifting device for wear. Afinitas provides a detailed guide to performing safe roll-overs with our controller equipment.
*Depending on pallet design, a minimum of 3 to 4 SmartJax™ (or more) are to be used at all times to support a flat pallet, pallet support stool, joint forming pallet or any combination along with the concrete load.

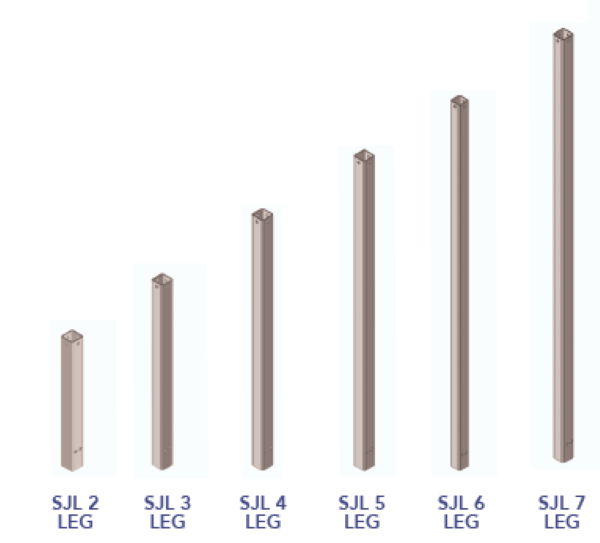

SmartJax Size Adjustment Details
| SHORT CAP | TALL CAP |
|---|---|

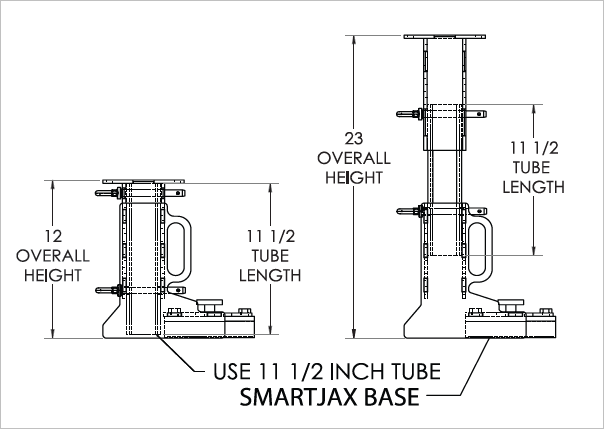

| 11 1/2 inch Tube | 11 1/2 inch Tube |
| 12 inch | 19 inch |
| 13 inch | 20 inch |
| 14 inch | 21 inch |
| 15 inch | 22 inch |
| 16 inch | 23 inch |
| 17 inch | |
| 18 inch |
| SHORT CAP | TALL CAP |
|---|---|

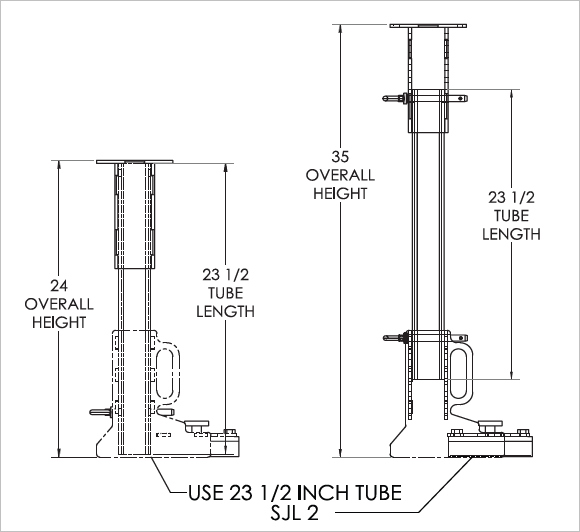

| 23 1/2 inch Tube | 23 1/2 inch Tube |
| 24 inch | 24 inch |
| 25 inch | 25 inch |
| 26 inch | 26 inch |
| 27 inch | 27 inch |
| 28 inch | 28 inch |
| 29 inch | 29 inch |
| 30 inch | 30 inch |
| 31 inch | |
| 32 inch | |
| 33 inch | |
| 34 inch | |
| 35 inch |
| SHORT CAP | TALL CAP |
|---|---|

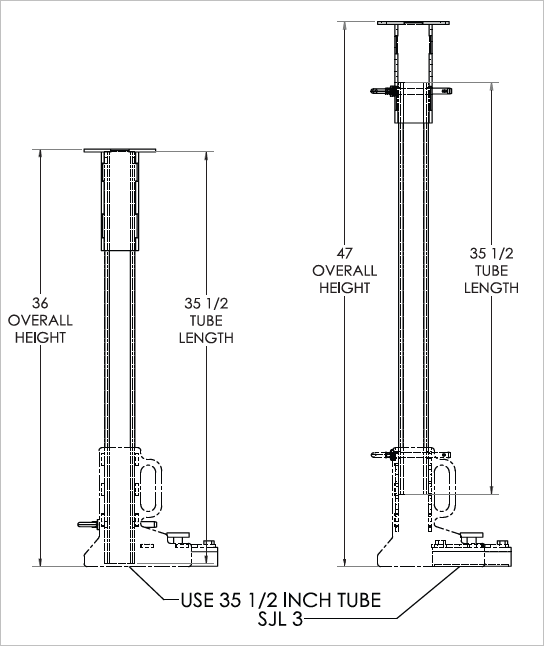

| 35 1/2 inch Tube | 35 1/2 inch Tube |
| 36 inch | 36 inch |
| 37 inch | 37 inch |
| 38 inch | 38 inch |
| 39 inch | 39 inch |
| 40 inch | 40 inch |
| 41 inch | 41 inch |
| 42 inch | 42 inch |
| 43 inch | |
| 44 inch | |
| 45 inch | |
| 46 inch | |
| 47 inch |
| SHORT CAP | TALL CAP |
|---|---|

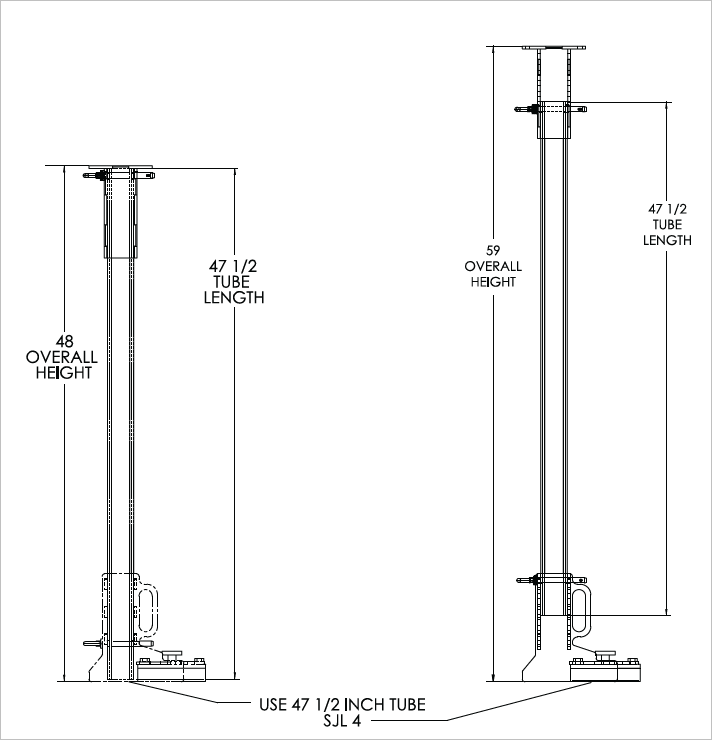

| 47 1/2 inch Tube | 47 1/2 inch Tube |
| 48 inch | 48 inch |
| 49 inch | 49 inch |
| 50 inch | 50 inch |
| 51 inch | 51 inch |
| 52 inch | 52 inch |
| 53 inch | 53 inch |
| 54 inch | 54 inch |
| 55 inch | |
| 56 inch | |
| 57 inch | |
| 58 inch | |
| 59 inch |
| SHORT CAP | TALL CAP |
|---|---|

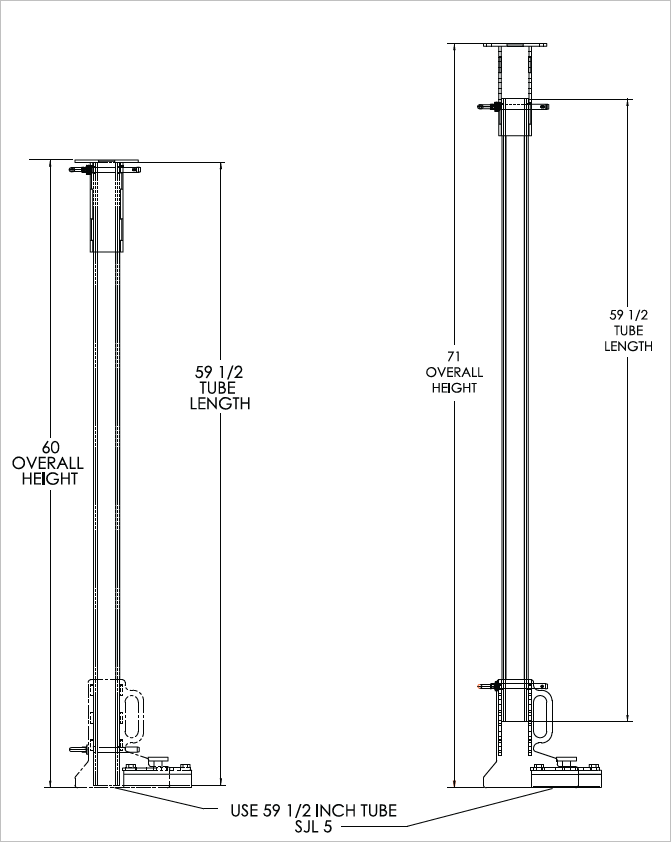

| 59 1/2 inch Tube | 59 1/2 inch Tube |
| 60 inch | 60 inch |
| 61 inch | 61 inch |
| 62 inch | 62 inch |
| 63 inch | 63 inch |
| 64 inch | 64 inch |
| 65 inch | 65 inch |
| 66 inch | 66 inch |
| 67 inch | |
| 68 inch | |
| 69 inch | |
| 70 inch | |
| 71 inch |
| SHORT CAP | TALL CAP |
|---|---|
| 71 1/2 inch Tube | 71 1/2 inch Tube |
| 72 inch | 72 inch |
| 73 inch | 73 inch |
| 74 inch | 74 inch |
| 75 inch | 75 inch |
| 76 inch | 76 inch |
| 77 inch | 77 inch |
| 78 inch | 78 inch |
| 79 inch | |
| 80 inch | |
| 81 inch | |
| 82 inch | |
| 83 inch |
| SHORT CAP | TALL CAP |
|---|---|

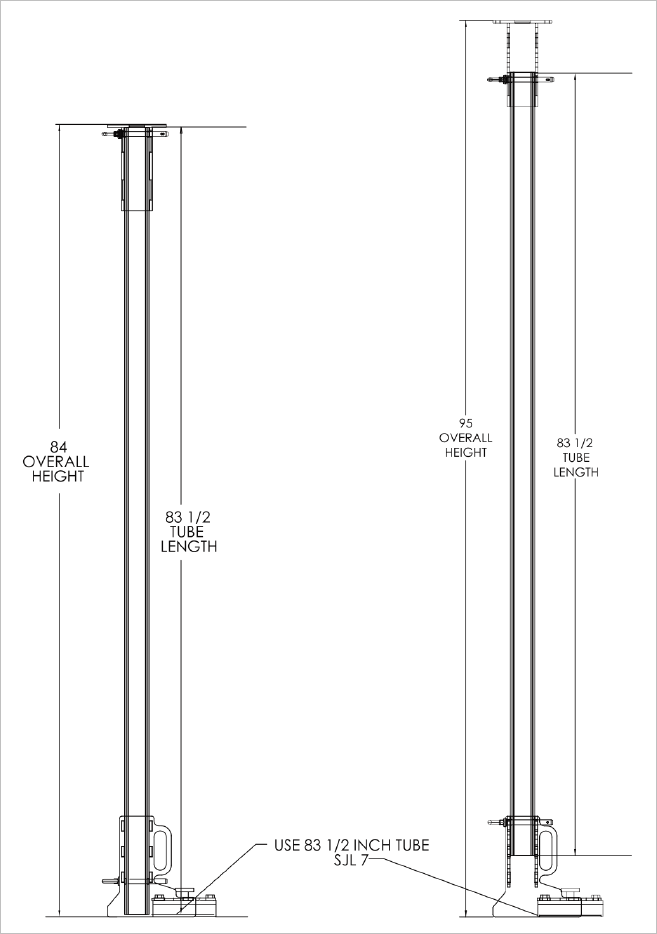

| 83 1/2 inch Tube | 83 1/2 inch Tube |
| 84 inch | 84 inch |
| 85 inch | 85 inch |
| 86 inch | 86 inch |
| 87 inch | 87 inch |
| 88 inch | 88 inch |
| 89 inch | 89 inch |
| 90 inch | 90 inch |
| 91 inch | |
| 92 inch | |
| 93 inch | |
| 94 inch | |
| 95 inch |
SmartJax Accessories

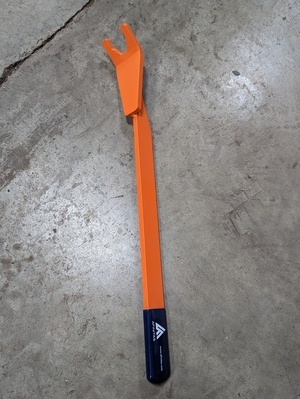

SmartJax Magnet Tool

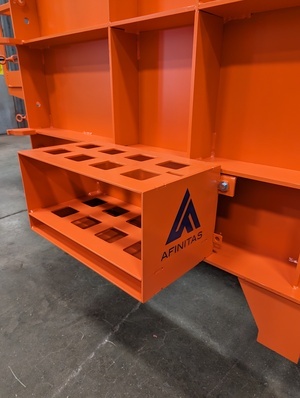

SmartJax Leg Caddy – Empty

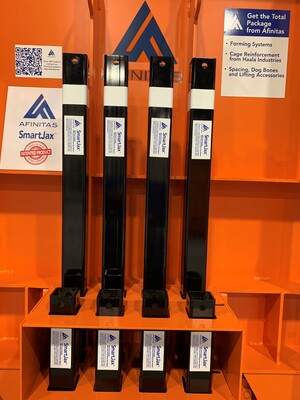

SmartJax Leg Caddy – Filled

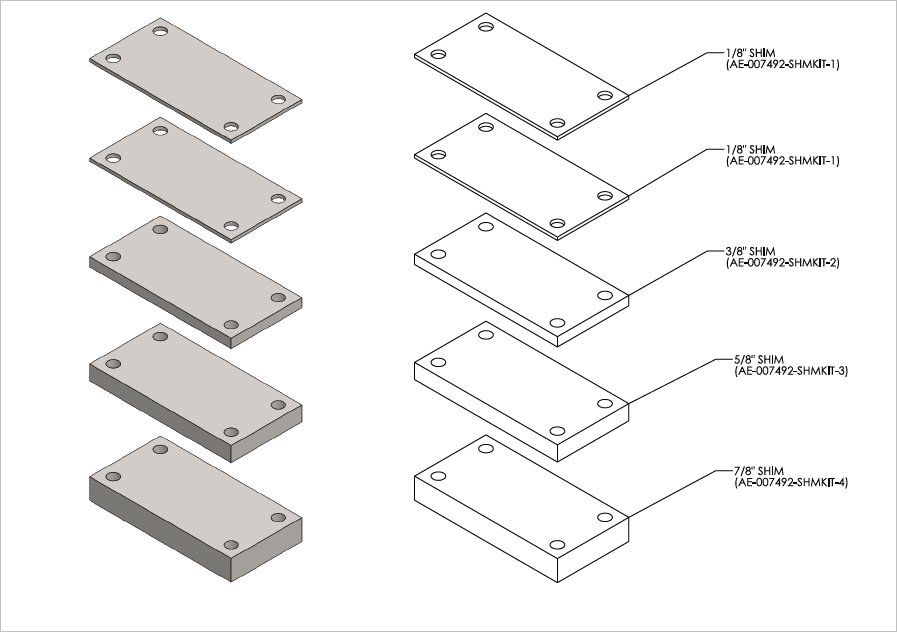

Shim Kit (AE-007482 SHMKIT)
Metal shims are material used to fill space between the SmartJax and pallet. They are used for leveling, adding support, or adjusting for better fit.
