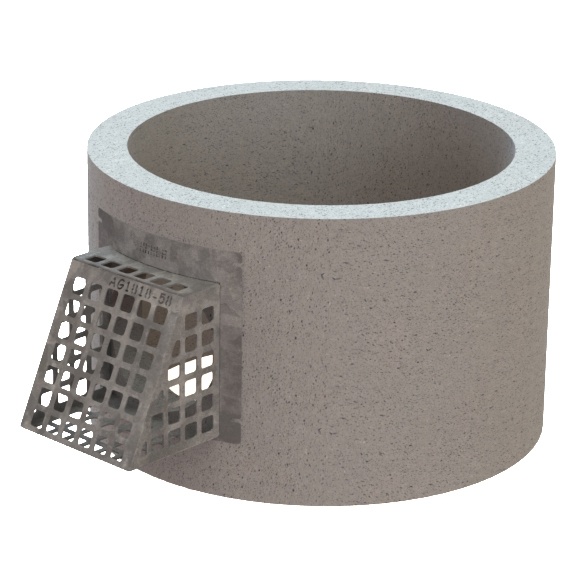

Angle Grates for Manholes

Angle Grates are designed to cover inlet orifices and prevent small to medium debris from passing through. The top angled design helps to minimize the amount of debris that settles on top after the water receeds. All grates are made from plate for a clean and smooth contact surface.

  • Plate design for a clean appearance
  • Standard 2″ openings (other sizes can be made)
  • Angled top/front plate to maximize debris deflection
  • Mounting flanges on 3 sides allows grate to be mounted at floor level inverts
  • Galvanized steel construction. Can be made from aluminum or stainless steel.

Angle Grates for Manholes

Part NumberGrate OpeningPipe ODDepthPlate Thicknesshf:att:pa_grate-openinghf:att:pa_pipe-odhf:att:pa_plate-thickness
AG0808-588"x8"58"12"3/16"
Each
Add to Quote
8x8583-16
AG0808-58-18"x8"58"8"3/16"
Each
Add to Quote
8x8583-16
AG1212-4412"x12"44"12"3/16"
Each
Add to Quote
12x12443-16
AG1212-5812"x12"58"12"3/16"
Each
Add to Quote
12x12583-16
AG1515-5815"x15"58"12"3/16"
Each
Add to Quote
15x15-2583-16
AG1818-5818"x18"58"12"3/16"
Each
Add to Quote
18x18583-16
AG1818-8618"x18"86"12"3/16"
Each
Add to Quote
18x18863-16
AG2424-5824"x24"58"12"3/16"
Each
Add to Quote
24x24583-16
AG3030-7230"x30"86"12"3/16"
Each
Add to Quote
30x30863-16
AG3030-8630"x30"86"12"1/4"
Each
Add to Quote
30x30861-4
AG3612-8636"x12"86"12"3/16"
Each
Add to Quote
36x12863-16
