Cone Grates Side Mount for Manholes

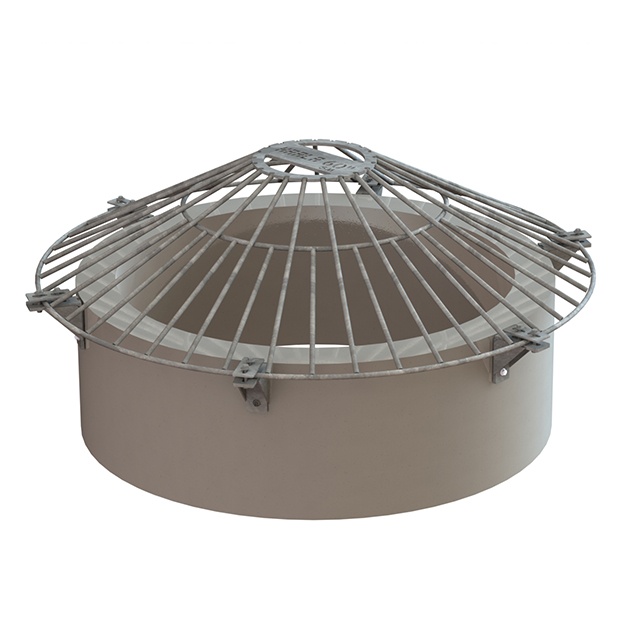

Side Mount Cone Grates are designed to mount near the top of round manhole inlet or outlet structures to keep debris from entering the storm water system. Side mount style allows for water flow under the grate if the top flow becomes restricted. Grates 72″ and larger are made as a two piece, bolt together design. Grates are easy to install but will require access to the side of the manhole for mounting brackets.

  • Plate and bar hybrid design is both clean and cost effective
  • Made from 1/2″ plate with 3/4″ or 1″ round bars depending on grate size

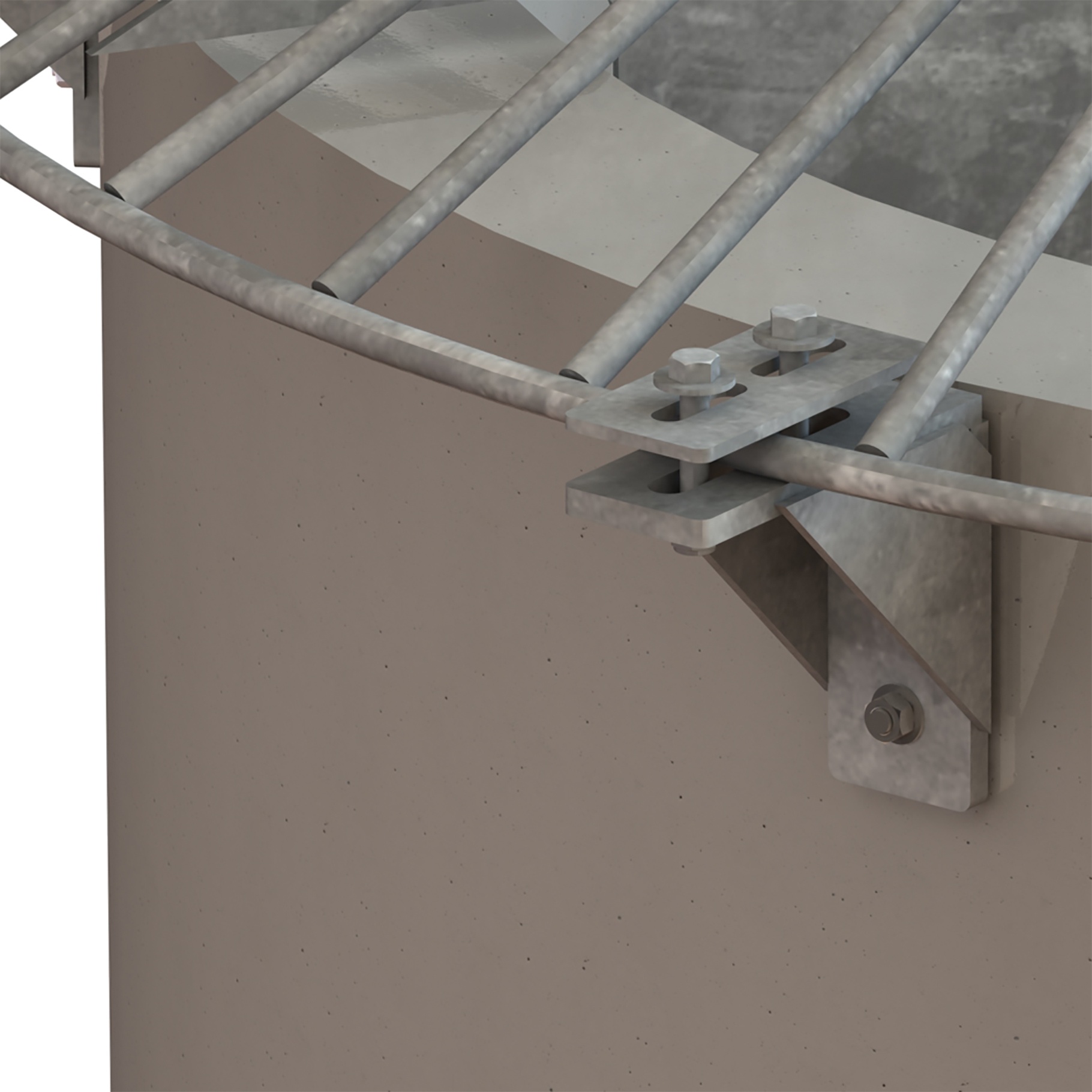

  • Includes side mount brackets
  • Anti vortex plate can be added upon request
  • Hinged and lockable access doors can be added upon request
  • Galvanized steel construction. Can be made from aluminum or stainless steel.

Cone Grates Side Mount for Manholes

Part NumberPipe IDPipe ODGrate ODBar ThicknessGrate HeightMounting SlotsMaterialhf:att:pa_pipe-idhf:att:pa_pipe-odhf:att:pa_grate-odhf:att:pa_material
CGSM303037"463/4"124Galvanized
Each
Add to Quote
303746galvanized
CGSM333337.5"503/4"124Galvanized
Each
Add to Quote
3337-5-250galvanized
CGSM363644"54-1/23/4"124Galvanized
Each
Add to Quote
364454-1-2galvanized
CGSM424251"613/4"124Galvanized
Each
Add to Quote
425161galvanized
CGSM484858"703/4"124Galvanized
Each
Add to Quote
485870galvanized
CGSM545465"773/4"184Galvanized
Each
Add to Quote
546577galvanized
CGSM606072"843/4"186Galvanized
Each
Add to Quote
607284galvanized
CGSM666679"923/4"188Galvanized
Each
Add to Quote
667992galvanized
CGSM727286"983/4"188Galvanized
Each
Add to Quote
728698galvanized
CGSM787893"1013/4"248Galvanized
Each
Add to Quote
7893101galvanized
CGSM8484100"1103/4"248Galvanized
Each
Add to Quote
84100110galvanized
CGSM9696114"1263/4"248Galvanized
Each
Add to Quote
96114126galvanized
CGSM108108128"140-1/21"368Galvanized
Each
Add to Quote
108128140-1-2galvanized
CGSM120120140"1541"368Galvanized
Each
Add to Quote
120140154galvanized
