Extra Strong Tie Rod
Extra Strong Tie Rod

Extra Strong Tie Rods

Available options
SKU: N/A Categories: ,
Contact Sales Rep

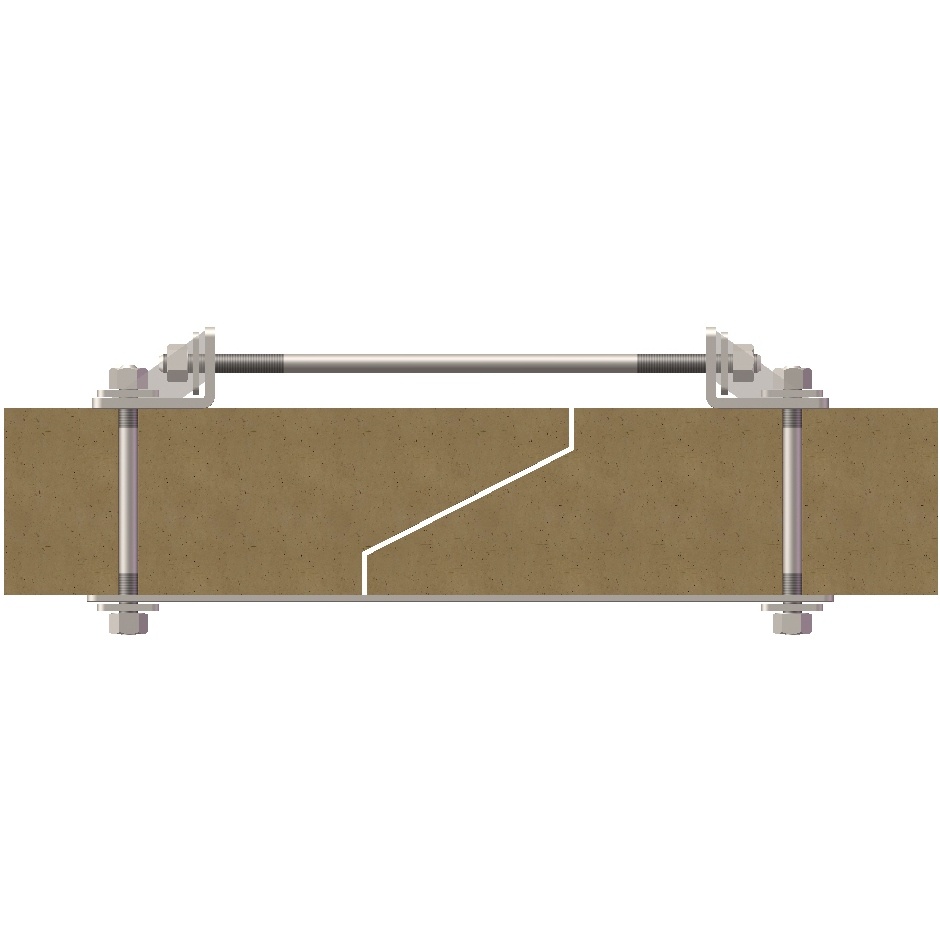

Extra Strong Ties Rods are assemblies with a formed eye bolt and a formed L rod that tie concrete pipe and box joints together.

  • Made in the USA in our Sleepy Eye, MN factory. USA-made steel.
  • Extra thread for increased adjustment.
  • All parts are hot dip galvanized to ASTM F2329.
  • Includes hex nuts and washers for each set of threads.
  • Pipe ties are designed for holding pipe or box sections together, not for pulling sections tight.
  • Also known as Pipe Ties and Joint Restraints.

Extra Strong Tie Rods

Part NumberContentsBar SpacingThicknessPrice (Each)
M102814-105Connecting Rod 1" x 29" - Qty 1 Threaded Stud 1"x13" Made From ASTM F1554 Grade 105 Material.Support Angle Brackets 1/2" x6" x 6" x 4" - Qty Washer Plates 5/16" x 3" x 36" - Qty 1 Washer Plates 5/16" x 3" x 3" - Qty 6 Heavy Hex Nuts A563 DH - Qty 6Grade 105 - Galvanized Steel31 to 33.5$393.64
Each
Add to Quote
M102815-105Connecting Rod 1" x 29" - Qty 1 Threaded Stud 1"x16" Made From ASTM F1554 Grade 105 Material. Support Angle Brackets 1/2" x6" x 6" x 4" - Qty 2 Washer Plates 5/16" x 3" x 36" - Qty 1 Washer Plates 5/16" x 3" x 3" - Qty 6 Heavy Hex Nuts A563 DH - Qty 6Grade 105 - Galvanized Steel31 to 33.5$407.43
Each
Add to Quote
M102814ANGAngle 6"x4"x1/2"x6"Galvanized SteelN/A$84.62
Each
Add to Quote
RD1X29GF-105Connecting Rod 1" x 29" - Qty 1 Washer Plates 5/16" x 3" x 3" - Qty 2 Heavy Hex Nuts A563 DH - Qty 2Grade 105 - Galvanized SteelN/A$101.70
Each
Add to Quote
