Lifting Eyes

SKU: N/A Categories: ,

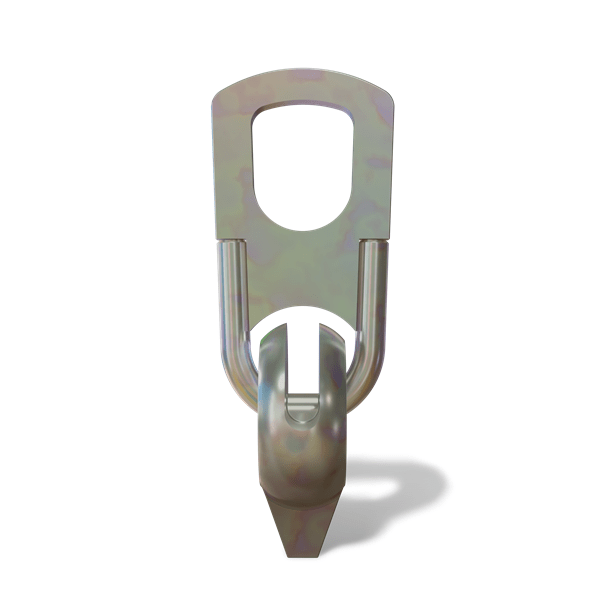

The Lifting Eye is a high strength steel lifting accessory for use with Dog Bone anchors. The Lifting Eye consists of a lifting body and a high strength bail which connects to the Dog Bone anchor. A key feature is the quick connect bail that can rotate freely through 180º degrees under load. Additionally the spherical head on the top of the Lifting Eye can rotate under load in the Lifting Eye Head.

Inspection and maintenance of the Lifting Eye is recommended before each use. The Lifting Eye may experience excessive wear, unexpected damage, bending, twisting, misuse, or overloading during its usable lifetime which can reduce the lifting eye’s rating load. Any evidence of wear that exceeds the degree of wear based on its age and typical use suggests that the lifting eye be replaced. Lifting eyes should be used with anchors from the same manufacturer.

Lifting Eyes

Part NumberSizeSafety FactorUlt. Mech. LoadSafe Working LoadItem Wt./ea.Price (Each)hf:att:pa_sizehf:att:pa_safe-working-load
PLLE1T1T5:11300026002.11 lbs$82.00
Each
Add to Quote
1t2600
PLLE2T2T5:12500050003.76 lbs$105.00
Each
Add to Quote
2t5000
PLLE4T4T5:150000100008.34 lbs$144.00
Each
Add to Quote
4t10000
PLLE8T8T5:11000002000020.53 lbs$265.00
Each
Add to Quote
8t20000
PLLE20T20T5:12000004000041.18 lbs$625.00
Each
Add to Quote
20t40000
