The Plate Anchor is a simple and effective anchor with high pullout strength and low-profile design. The anchor can be utilized for stripping from formwork, face lifts of thin-walled elements, and handling or erection applications. Recommended installation requires the crisscrossing of minimum 18” long #4 rebar over the lower plate of the anchor in both directions

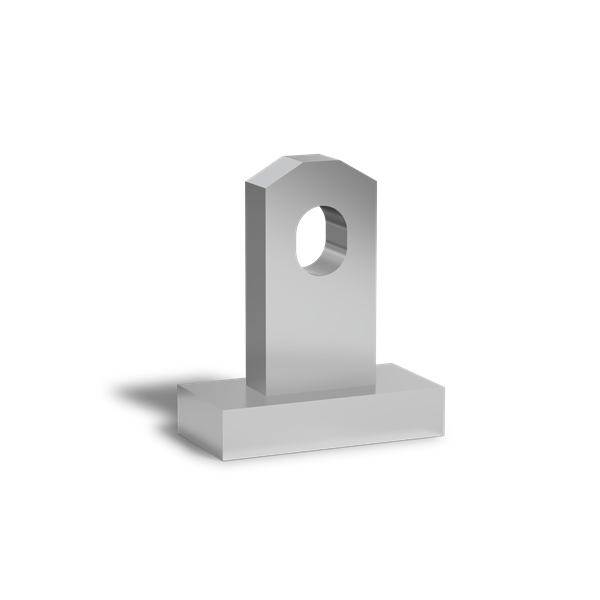

Plate Anchor
Plate Anchor dimensions
Plate Anchor
Plate Anchor
| Part Number | Safe Working Load | Safety Factor | Height (in.) | Overall Length | Width | Thickness | Size | Lifting Clutch | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_safe-working-load | hf:att:pa_overall-length | hf:att:pa_size | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLPA2T214 | 4000 | 4:1 | 2-1/4 | 3-5/8 | 1-1/4 | 3/8 | 2T | PLRC23T | 16000 | .81 lbs | 2000/crate | $2.91 | 4000 | 3-5-8 | 2t | |
| PLPA4T3 | 8000 | 4:1 | 3 | 3-1/8 | 1-1/2 | 5/8 | 4T | PLRC46T | 32000 | 1.37 lbs | 2000/crate | $3.79 | 8000 | 3-1-8 | 4t | |
| PLPA4T312 | 8000 | 4:1 | 3-1/2 | 3-1/8 | 1-1/2 | 5/8 | 4T | PLRC46T | 32000 | 1.54 lbs | 1700/crate | $3.91 | 8000 | 3-1-8 | 4t | |
| PLPA4T438 | 8000 | 4:1 | 4-3/8 | 4 | 1-1/2 | 5/8 | 4T | PLRC46T | 32000 | 1.99 lbs | 1000/crate | $4.54 | 8000 | 4 | 4t | |
| PLPA8T614 | 16000 | 4:1 | 6-1/4 | 5 | 2-1/2 | 3/4 | 8T | PLRC811T | 64000 | 5.82 lbs | 400/crate | $9.85 | 16000 | 5 | 8t | |
| PLPA8T718 | 16000 | 4:1 | 7-1/8 | 5 | 2-1/2 | 3/4 | 8T | PLRC811T | 64000 | 6.34 lbs | 400/crate | $11.82 | 16000 | 5 | 8t |
