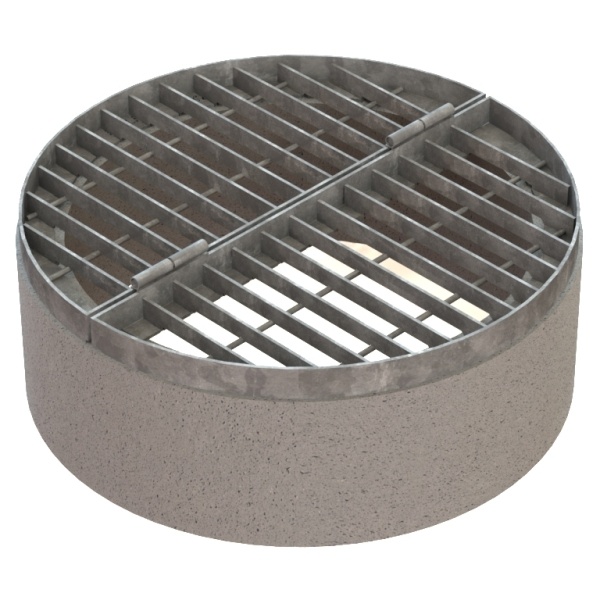

Pond Skimmer Flat Iron Style for Manholes

Pond skimmers are made from 3/8”x2” flats at 4” C/C and have a fabricated 3-1/2”x3/8” angle iron outer frame. Bearing bars run perpendicular to the hinge joint. All grates have cross bars. Hinges are mounted so that the grate can be disassembled in the field.

  • Integrated mounting flanges for securing grates
  • Anti vortex plate can be added upon request
  • Galvanized steel construction. Can be made from aluminum or stainless steel.
  • Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

Pond Skimmer Flat Iron Style for Manholes

Part NumberManhole IDGrate ODGrate HeightPlate ThicknessCross BarPrice (Each)hf:att:pa_manhole-idhf:att:pa_grate-od
PS48SR48573-1/2"3/8"Yes$3,167.00
Each
Add to Quote
4857
PS60SR60693-1/2"3/8"Yes$4,385.00
Each
Add to Quote
6069
PS72SR72813-1/2"3/8"Yes$5,202.00
Each
Add to Quote
7281
PS84SR84933-1/2"3/8"Yes$6,724.00
Each
Add to Quote
8493
PS96SR961073-1/2"3/8"Yes$9,494.00
Each
Add to Quote
96107
PS108SR1081203-1/2"3/8"Yes$11,790.00
Each
Add to Quote
108120
