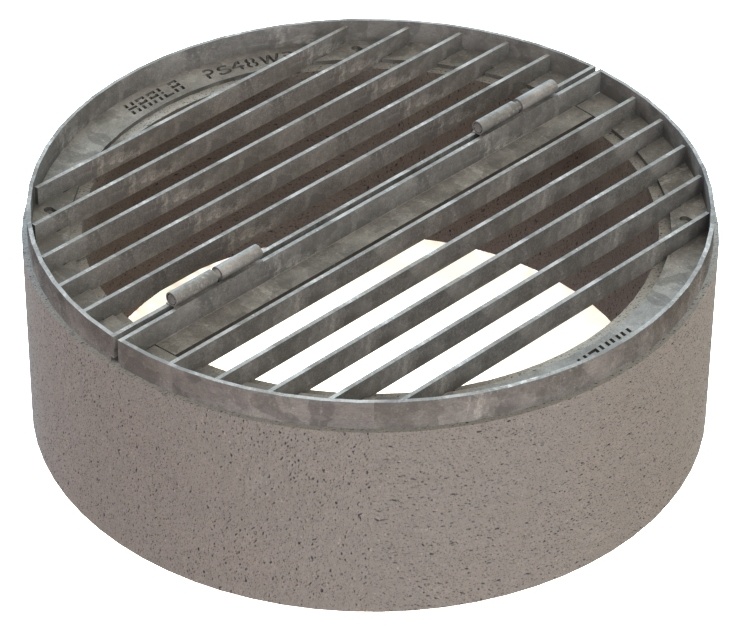

Pond Skimmer Woodbury Style for Manholes

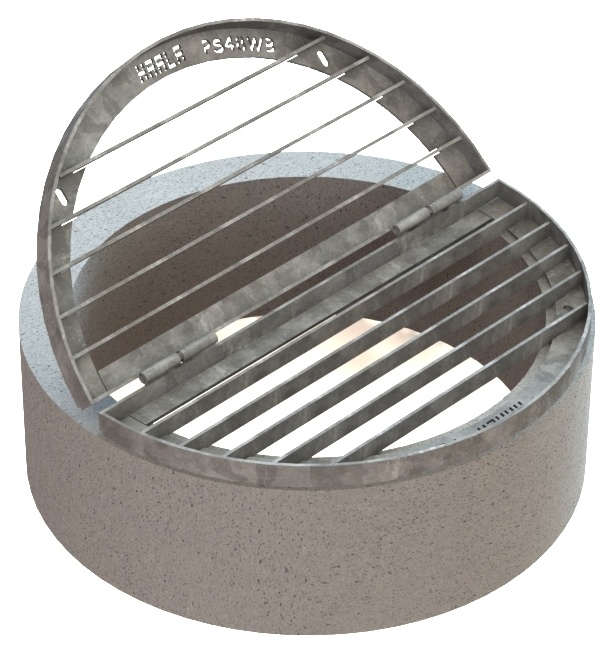

Pond skimmers are made from 3/8”x2” flats at 4” C/C and have a fabricated 2-1/2”x3/8” angle iron outer frame. Bearing bars run parallel to the hinge joint. Grates 84” and larger have cross bars. Hinges are mounted so that the grate can be disassembled in the field.

  • Integrated mounting flanges for securing grates
  • Anti vortex plate can be added upon request
  • Galvanized steel construction. Can be made from aluminum or stainless steel.
  • Made in the USA in our Sleepy Eye, MN factory. USA-made steel.

Pond Skimmer Woodbury Style for Manholes

Part NumberManhole IDGrate ODGrate HeightPlate ThicknessCross BarPrice (Each)hf:att:pa_manhole-idhf:att:pa_grate-od
PS48WB48572-1/2"3/8"No$2,690.00
Each
Add to Quote
4857
PS60WB60692-1/2"3/8"No$3,988.00
Each
Add to Quote
6069
PS72WB72812-1/2"3/8"No$4,959.00
Each
Add to Quote
7281
PS84WB84932-1/2"3/8"Yes$6,667.00
Each
Add to Quote
8493
PS96WB961072-1/2"3/8"Yes$9,047.00
Each
Add to Quote
96107
