Recess formers are essential for the safe and efficient handling of precast concrete elements. They help to ensure that the lifting anchors are properly positioned and secured, which reduces the risk of accidents during lifting and transportation.

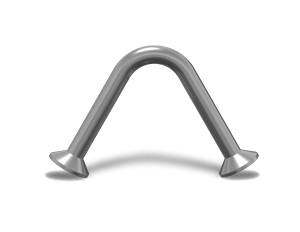

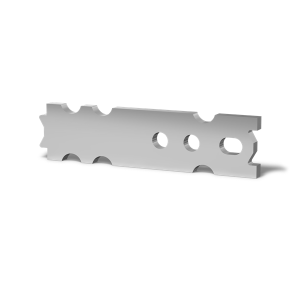

We offer a number of high-quality recess formers for use with our utility, erection, general purpose and dog bone anchors and recess former accessory holding plates and stud plates with wing nuts for erection anchors and dog bones.
| Part Number | Size | Description | Magnetism | Color | Material | Item Wt./ea. | Price (Each) | hf:att:pa_size | hf:att:pa_magnetic | |
|---|---|---|---|---|---|---|---|---|---|---|

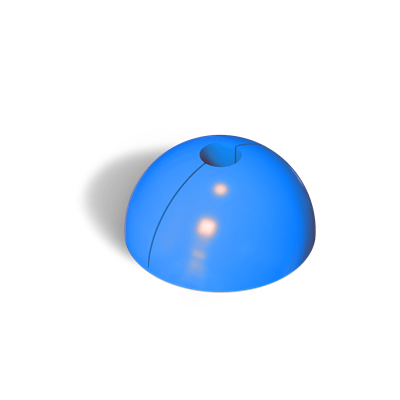

| PLDBRM1T | 1T | Dog Bone Recess Former | Non-Magnetic | Blue | Rubber | .14 lbs | $1.96 | 1t | non-magnetic | |

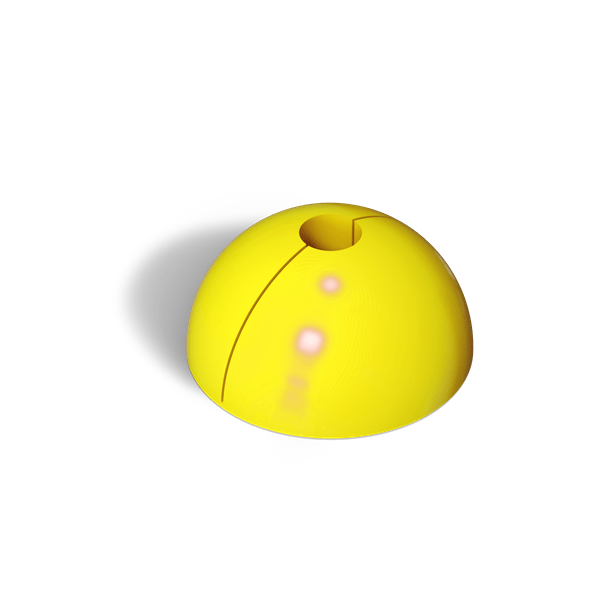

| PLDBRM2T | 2T | Dog Bone Recess Former | Non-Magnetic | Yellow | Rubber | .26 lbs | $6.61 | 2t | non-magnetic | |

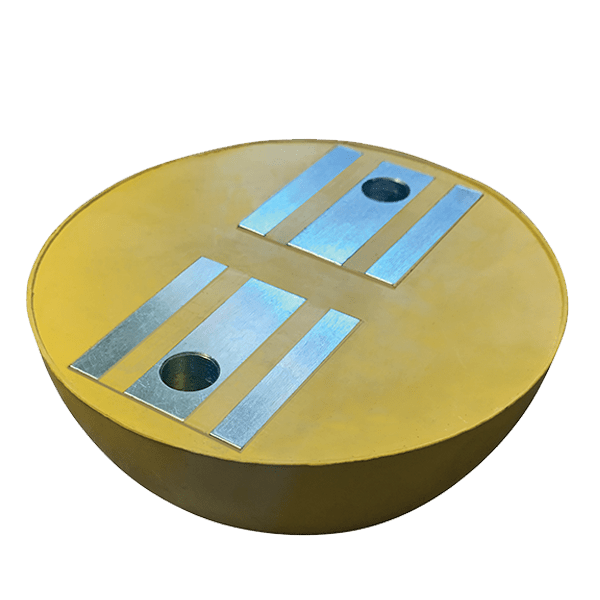

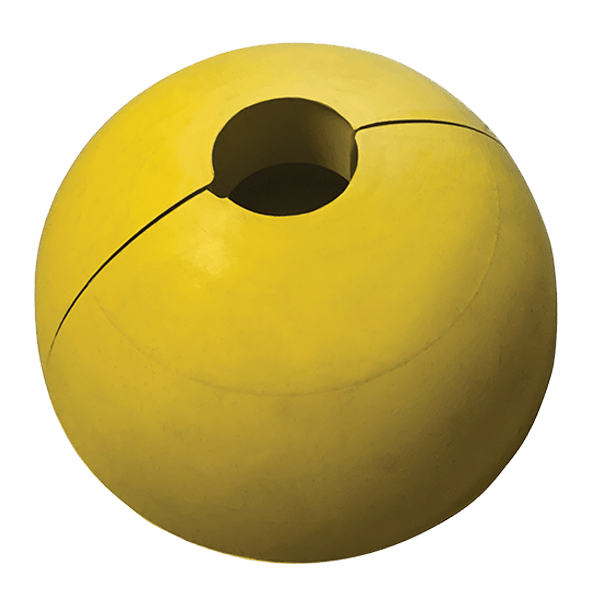

| PLDBRM2T-MAG | 2T | Dog Bone Recess Former | Magnetic | N/A | Rubber | .46 lbs | $79.00 | 2t | magnetic | |

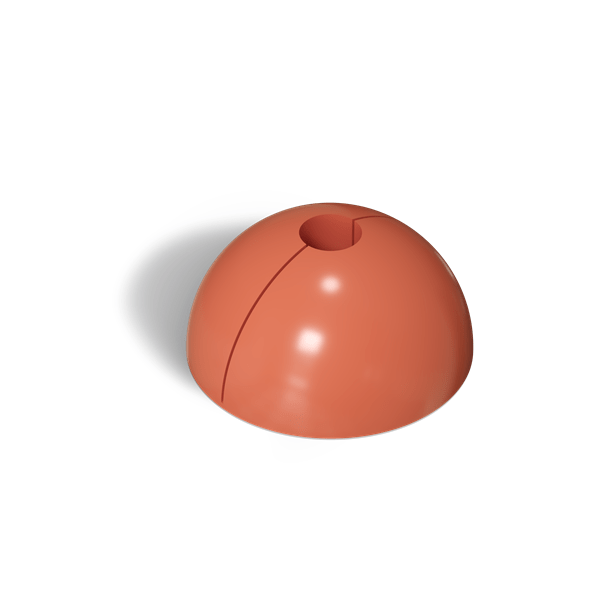

| PLDBRM4T | 4T | Dog Bone Recess Former | Non-Magnetic | Orange | Rubber | .55 lbs | $10.97 | 4t | non-magnetic | |
| PLDBRM4T-MAG | 4T | Dog Bone Recess Former | Magnetic | N/A | Rubber | .91 lbs | $149.00 | 4t | magnetic | |

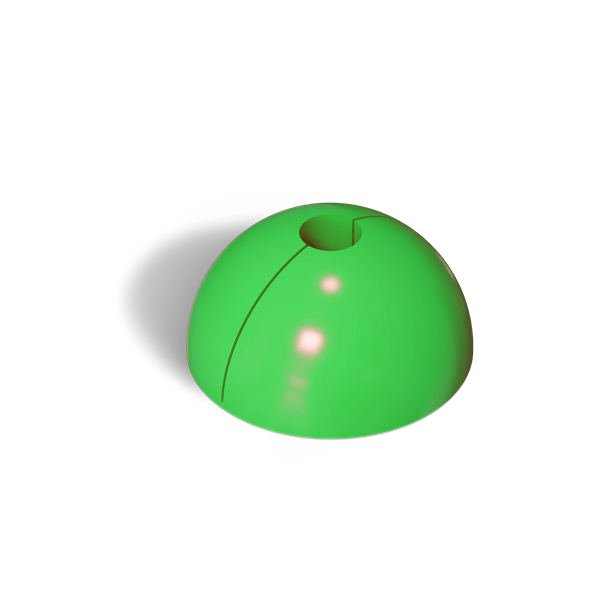

| PLDBRM8T | 8T | Dog Bone Recess Former | Non-Magnetic | Green | Rubber | 1.1 lbs | $21.36 | 8t | non-magnetic | |
| PLDBRM8T-MAG | 8T | Dog Bone Recess Former | Magnetic | N/A | Rubber | 1.60 lbs | $179.00 | 8t | magnetic | |

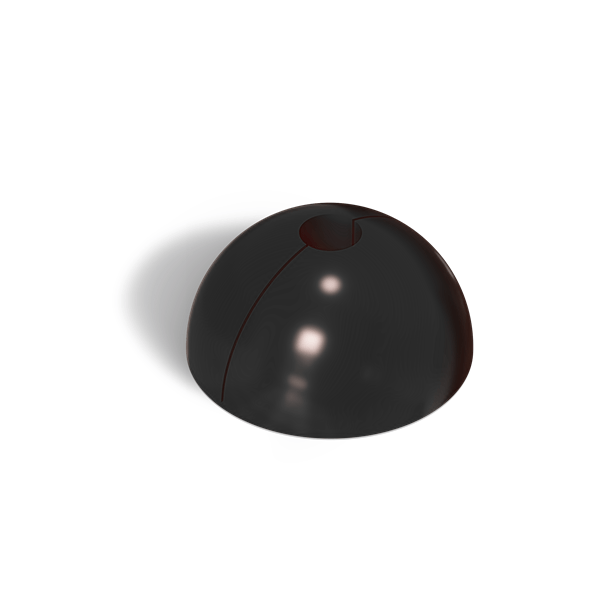

| PLDBRM20T | 20T | Dog Bone Recess Former | Non-Magnetic | Black | Rubber | 2.22 lbs | $41.21 | 20t | non-magnetic | |

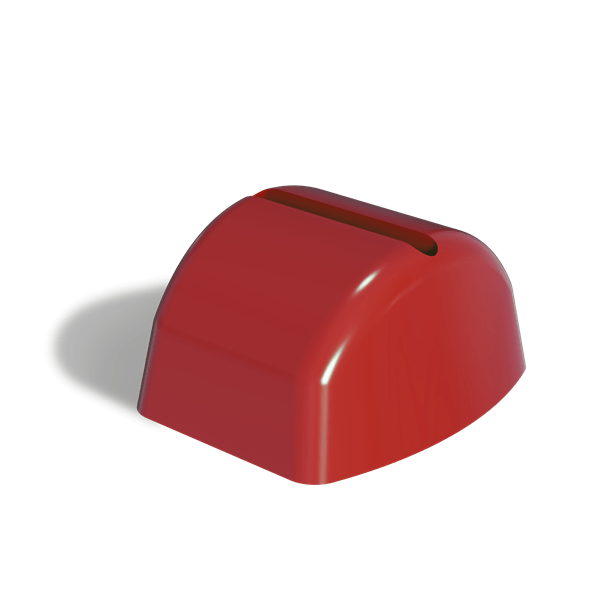

| PLGPRM38 | 3-8T | General Purpose Recess Former | Non-Magnetic | Red | Rubber | 2.56 lbs | $39.50 | 3-8t | non-magnetic | |
| PLGPRM716 | 7-16T | General Purpose Recess Former | Non-Magnetic | Green | Rubber | 3.16 lbs | $39.00 | 7-16t | non-magnetic | |

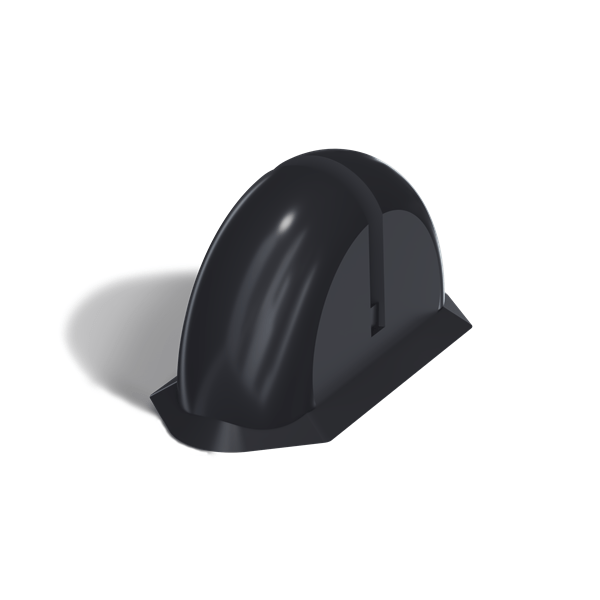

| PLRM1 | 1T | Erection Anchor Recess Former | Non-Magnetic | Red | Rubber | .23 lbs | $7.67 | 1t | non-magnetic | |
| PLRM2 | 2T | Erection Anchor Recess Former | Non-Magnetic | Black | Rubber | .23 lbs | $6.99 | 2t | non-magnetic | |
| PLRM2-MAG | 2T | Erection Anchor Recess Former | Magnetic | Black | Rubber | .52 lbs | $0.00 | 2t | magnetic | |
| PLRM46 | 4-6T | Erection Anchor Recess Former | Non-Magnetic | N/A | Rubber | .47 lbs | $28.50 | 4-6t | non-magnetic | |
| PLRM-46-MAG | 4-6T | Erection Anchor Recess Former | Magnetic | Black | Rubber | 1 lbs | $0.00 | 4-6t | magnetic | |
| PLRM811 | 8-11T | Erection Anchor Recess Former | Non-Magnetic | N/A | Rubber | 1.2 lbs | $24.10 | 8-11t | non-magnetic | |
| PLRM811-MAG | 8-11T | Erection Anchor Recess Former | Magnetic | Black | Rubber | 2.80 lbs | $0.00 | 8-11t | magnetic | |

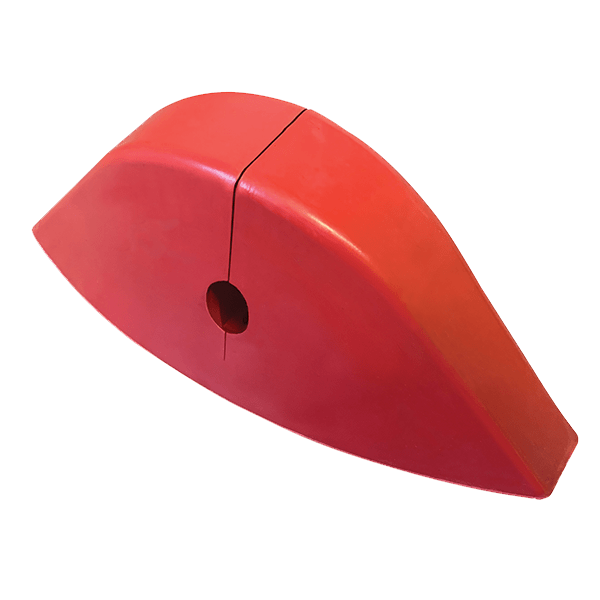

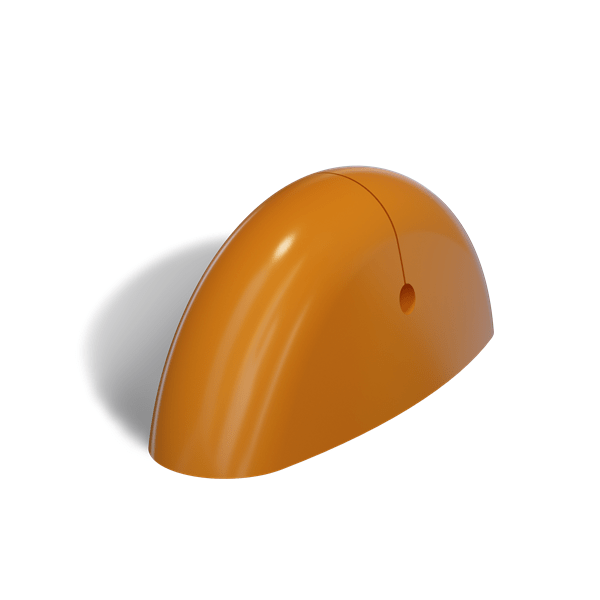

| PLRM444 | .444 | Utility Anchor Recess Former | Non-Magnetic | N/A | Rubber | 1.4 lbs | $28.50 | 444 | non-magnetic | |

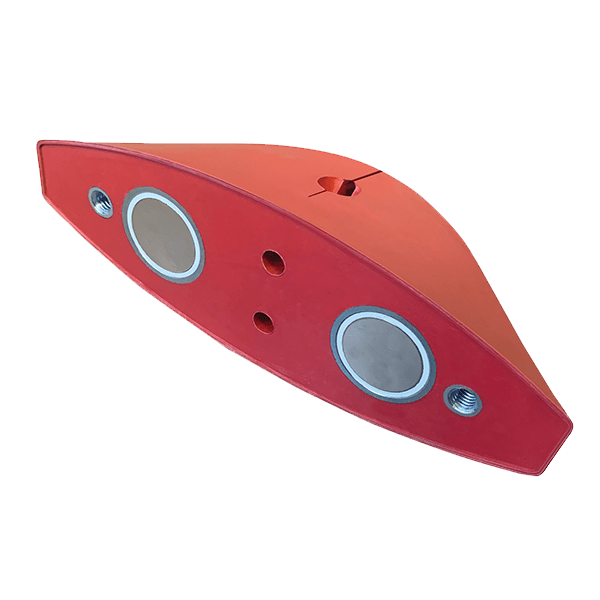

| PLRM444-MAG | .444 | Utility Anchor Recess Former | Magnetic | N/A | Rubber | 2.38 lbs | $0.00 | 444 | magnetic | |
| PLRM671 | .671-18mm | Utility Anchor Recess Former | Non-Magnetic | N/A | Rubber | 1.7 lbs | $28.85 | 671-18mm | non-magnetic | |
| PLRM671-MAG | .671-18mm | Utility Anchor Recess Former | Magnetic | N/A | Rubber | 2.34 lbs | $0.00 | 671-18mm | magnetic | |
| PLRM14-MAG | .444 and 14mm | Utility Anchor Recess Former | Magnetic | N/A | Rubber | 1.78 lbs | $120.00 | 444-and-14mm | magnetic | |
| PLRM18-MAG | .671 and 18mm | Utility Anchor Recess Former | Magnetic | N/A | Rubber | 1.78 lbs | $120.00 | 671-and-18mm | magnetic | |

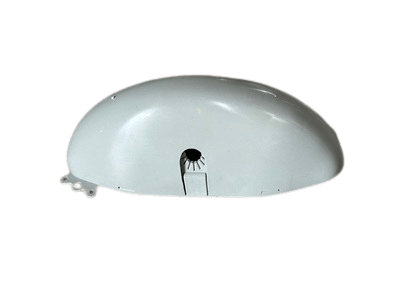

| PLPRM4 | 0.444 mm | Plastic Utility Anchor Recess Former | Non-Magnetic | N/A | Plastic | .265 lbs | $0.00 | 0-444-mm | non-magnetic | |
| PLPRM68 | .671 and 18mm | Plastic Utility Anchor Recess Former | Non-Magnetic | N/A | Plastic | .265 lbs | $0.00 | 671-and-18mm | non-magnetic | |

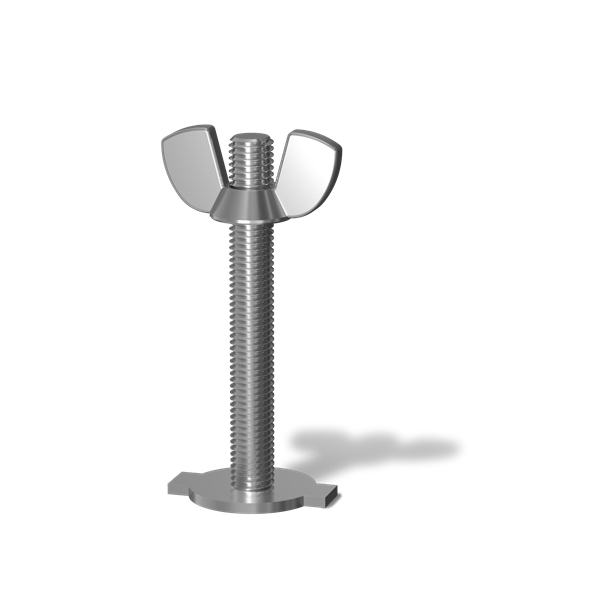

| PLDBSP1T | 1T | Dog Bone Zinc-Plated Stud Plate w/Wing Nut | Non-Magnetic | N/A | Steel | .08 lbs | $1.15 | 1t | non-magnetic | |
| PLDBSP2T | 2T | Dog Bone Zinc-Plated Stud Plate w/Wing Nut | Non-Magnetic | N/A | Steel | .21 lbs | $1.23 | 2t | non-magnetic | |
| PLDBSP4T | 4T | Dog Bone Zinc-Plated Stud Plate w/Wing Nut | Non-Magnetic | N/A | Steel | .26 lbs | $1.59 | 4t | non-magnetic | |
| PLDBSP8T | 8T | Dog Bone Zinc-Plated Stud Plate w/Wing Nut | Non-Magnetic | N/A | Steel | .29 lbs | $1.82 | 8t | non-magnetic | |
| PLDBSP20T | 20T | Dog Bone Zinc-Plated Stud Plate w/Wing Nut | Non-Magnetic | N/A | Steel | .74 lbs | $6.45 | 20t | non-magnetic | |

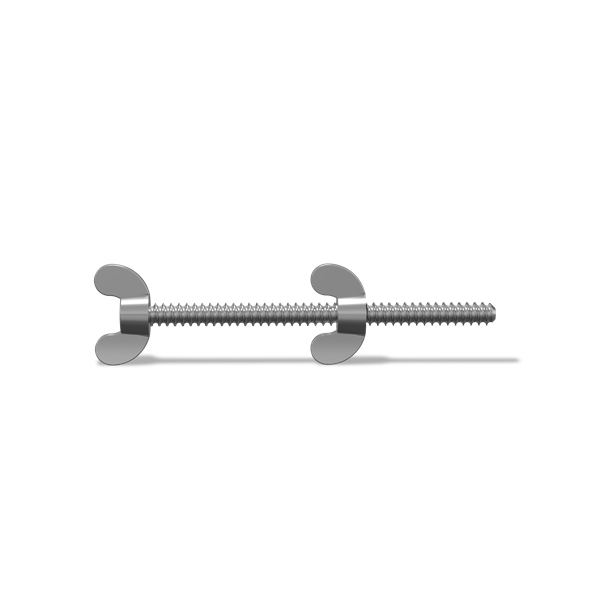

| PLHB126 | 1/2 x 6 | Erection Anchor Zinc-Plated Holding Bolt | Non-Magnetic | N/A | N/A | .55 lbs | $5.75 | 1-2-x-6 | non-magnetic | |
| PLHB386 | 3/8 x 6 | Erection Anchor Zinc-Plated Holding Bolt | Non-Magnetic | N/A | Steel | .40 lbs | $6.82 | 3-8-x-6 | non-magnetic | |

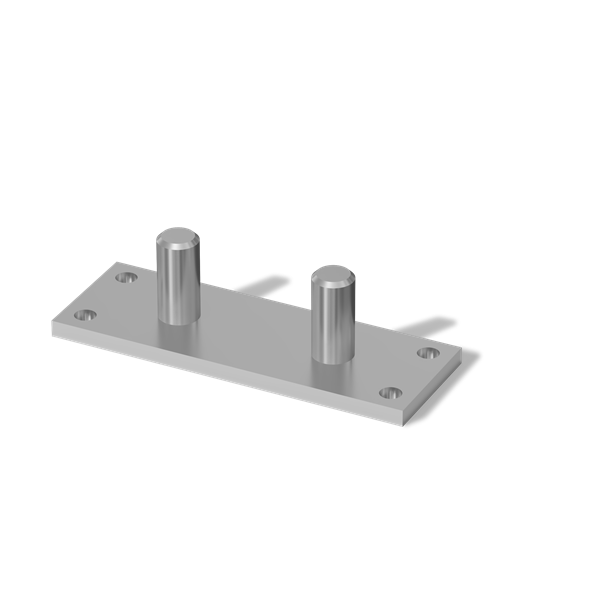

| PLHP10T | 8-10T | Erection Anchor Zinc-Plated Holding Plate | Non-Magnetic | Red | Steel | .69 lbs | $7.45 | 8-10t | non-magnetic | |
| PLHP2T | 1-2T | Erection Anchor Zinc-Plated Holding Plate | Non-Magnetic | N/A | Steel | .13 lbs | $2.99 | 1-2t | non-magnetic | |
| PLHP5T | 4-6T | Erection Anchor Zinc-Plated Holding Plate | Non-Magnetic | N/A | Steel | .21 lbs | $4.47 | 4-6t | non-magnetic |
