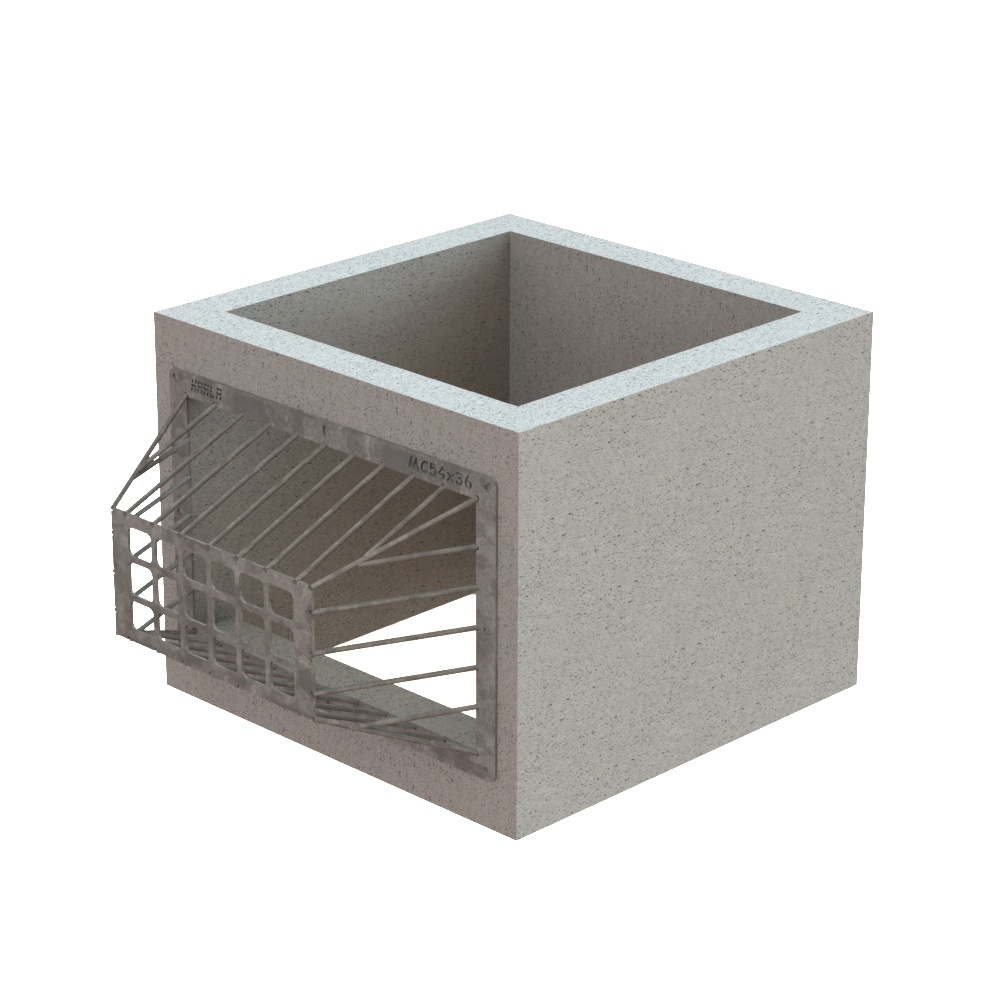

Side Grate Raised for Box Culvert

Raised Side Grates are units designed to cover inlet orifices and prevent medium to large debris from passing through. All grates are made from plate with round bar riser legs. Works well to cover larger openings or multiple small openings.

  • Plate and bar hybrid design is both clean and cost effective
  • Raised grate design increases flow capacity.
  • 3/8″ plate with 5/8″ round bars
  • Typical opening size is 4″
  • Mounting flanges on all 4 sides
  • Galvanized steel construction. Can be made from aluminum or stainless steel.

Side Grate Raised for Box Culvert

Part NumberPlate ThicknessGrate ODOpening Webhf:att:pa_plate-thicknesshf:att:pa_grate-od
MC42X723/8"42"x72"4"
Each
Add to Quote
3-842x72
MC54X363/8"54"x36"4"
Each
Add to Quote
3-854x36
MC54X423/8"54"x42"4"
Each
Add to Quote
3-854x42
MC54X543/8"54"x54"4"
Each
Add to Quote
3-854x54
MC54X603/8"54"x60"4"
Each
Add to Quote
3-854x60
MC54X723/8"54"x72"4"
Each
Add to Quote
3-854x72
