Angle Grates for Box Culverts

SKU: N/A Category:

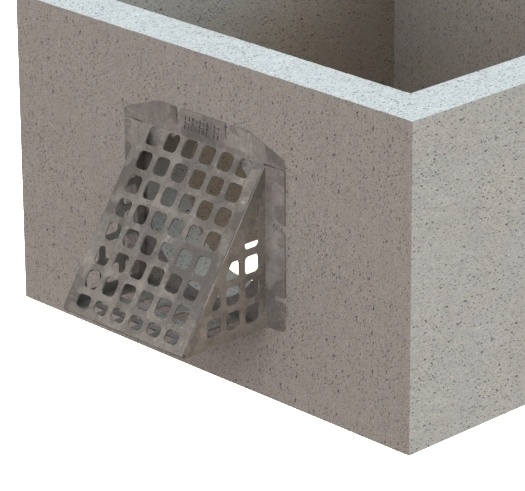

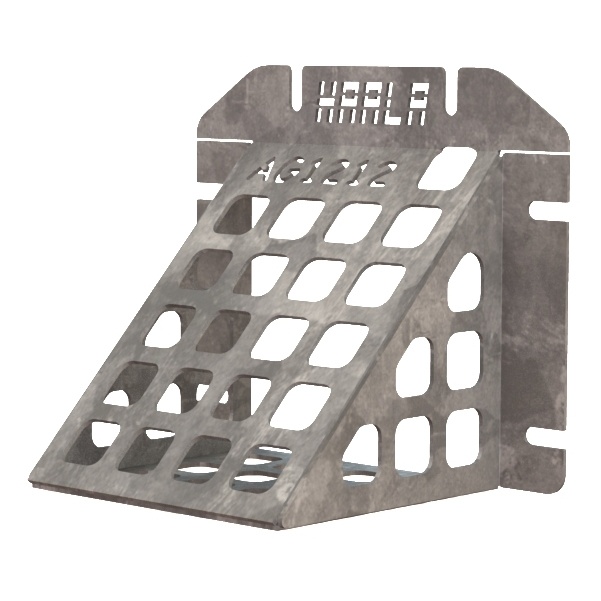

Angle Grates are designed to cover inlet orifices and prevent small to medium debris from passing through. The top angled design helps to minimize the amount of debris that settles on top after the water receeds. All grates are made from plate for a clean and smooth contact surface.

  • Plate design for a clean appearance
  • Standard 2″ openings (other sizes can be made)
  • Angled top/front plate to maximize debris deflection
  • Mounting flanges on 3 sides allows grate to be mounted at floor level inverts
  • Galvanized steel construction. Can be made from aluminum or stainless steel.

Angle Grates for Box Culverts

Part NumberGrate OpeningPlate ThicknessGrate ODxHThf:att:pa_grate-openinghf:att:pa_plate-thicknesshf:att:pa_grate-odxht
AG06066"x6"3/16"10"x8"x6"
Each
Add to Quote
6x63-1610x8x6
AG121212"x12"3/16"18"x15"x12"
Each
Add to Quote
12x123-1618x15x12
AG1212-112"x12"3/16"18"x15"x12"
Each
Add to Quote
12x123-1618x15x12
AG123012"x30"3/16"18"x33"x12"
Each
Add to Quote
12x303-1618x33x12
AG151515"x15"3/16"21"x18"x12"
Each
Add to Quote
15x15-23-1621x18x12
AG181818"x18"3/16"25"x21"x12"
Each
Add to Quote
18x183-1625x21x12
AG241224"x12"3/16"30"x15"x12"
Each
Add to Quote
24x123-1630x15x12
AG2412-124"x12"3/16"30"x15"x12"
Each
Add to Quote
24x123-1630x15x12
AG242424"x24"3/16"30"x27"x12"
Each
Add to Quote
24x243-1630x27x12
AG303630"x36"3/16"36-1/2"x39"x12"
Each
Add to Quote
30x363-1636-1-2x39x12
AG361836"x18"3/16"42-1/2"x24"x12"
Each
Add to Quote
36x183-1642-1-2x24x12
AG362436"x243/16"42-1/2"x27"x12"
Each
Add to Quote
36x243-1642-1-2x27x12
AG363636"x36"3/16"42-1/2"x39"x12"
Each
Add to Quote
36x363-1642-1-2x39x12
AG481848"x18"3/16"54-1/2"x21"x12"
Each
Add to Quote
48x183-1654-1-2x21x12
AG482448"x24"3/16"54-1/2"x27"x12"
Each
Add to Quote
48x243-1654-1-2x27x12
AG483648"x24"1/4"54-1/2"39"x12"
Each
Add to Quote
48x241-454-1-239x12
