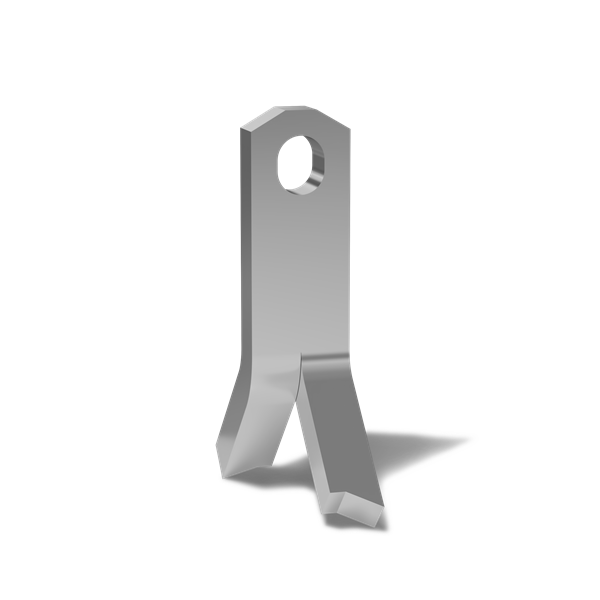

The Spread Anchor utilizes a unique spread-foot design to enhance pull-out capacity and allow for 360-degree load application with adequate edge distances. The Spread Anchor is ideal for face or edge lifting of panels during stripping, handling, or horizontal to vertical rotation. Please note that the Spread Anchor can cause spalling of concrete when pulling in shear perpendicular to the void, regardless of edge distance.
Spread Anchor
Spread Anchors
Spread Anchors
| Part Number | Safe Working Load | Safety Factor | Overall Length | Width | Thickness | Size | Spread | Lifting Clutch | Recess Former | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLSA1T | 2000 | 4:1 | 4-3/4 | 1-1/4 | 3/16 | 1T | 2-11/16 | PLRC23T | PLRM1 | 8000 | .36 lbs | 2800/crate | $0.75 | |
| PLSA2T | 4000 | 4:1 | 5-1/2 | 1-1/4 | 3/8 | 2T | 2-5/8 | PLRC23T | PLRM2 | 16000 | .80 lbs | 2800/crate | $1.85 | |
| PLSA8T | 16000 | 4:1 | 11 | 2-1/2 | 13/16 | 8T | 4-3/8 | PLRC811T | PLRM811 | 64000 | 6.1 lbs | 300/crate | $13.99 |
