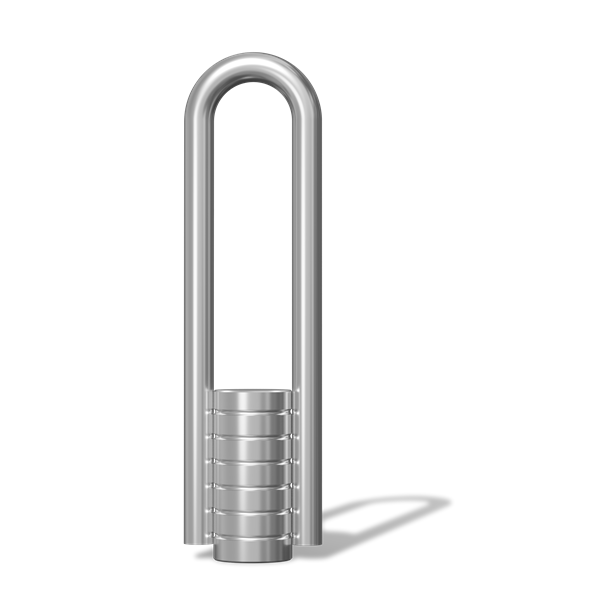

Our Straight Ferrule Loop Insert is tapped to accept an NC threaded bolt, providing for fixation to precast concrete elements.
Proper installation requires the insert to be cast perpendicular to the face of the element, with the opening to the threads level to the face of the element. Any misalignment of the insert will result in a reduction of safe working load capacity.
| Part Number | Thread Size (In.) | Threads (in.) | Ferrule Length | Overall Length | Width | Wire Diameter (in.) | Finish | Safe Working Load | Safety Factor | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_thread-size-in | hf:att:pa_overall-length | hf:att:pa_width | hf:att:pa_finish | hf:att:pa_safe-working-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FI12418SLZ | 1/2 | 13 | 1-3/8 | 4-1/8 | .243 | Zinc-Plated | 3000 | 3:1 | 9000 | .216 lbs | 300/crate | $1.53 | 1-2 | 4-1-8 | zinc-plated | 3000 | |||
| FI12618SLZ | 1/2 | 13 | 1-3/8 | 6-1/8 | .306 | Zinc-Plated | 5000 | 3:1 | 15000 | .405 lbs | 150/crate | $1.99 | 1-2 | 6-1-8 | zinc-plated | 5000 | |||
| FI58SLZ | 5/8 | 11 | 1-5/8 | 2-1/2 | .306 | Zinc-Plated | N/A | N/A | N/A | .244 lbs | 125/crate | $2.27 | 5-8 | 2-1-2 | zinc-plated | n-a | |||
| FI58618SLZ | 5/8 | 11 | 1-5/8 | 6-1/8 | .306 | Zinc-Plated | 5000 | 3:1 | 15000 | .48 lbs | 150/crate | $2.10 | 5-8 | 6-1-8 | zinc-plated | 5000 | |||
| FI34418SLZ | 3/4 | 10 | 1-5/8 | 4-1/8 | .223 | Zinc-Plated | 3000 | 3:1 | 9000 | .286 lbs | 100/crate | $1.97 | 3-4 | 4-1-8 | zinc-plated | 3000 | |||
| FI34618SLZ | 3/4 | 10 | 1-5/8 | 6-1/8 | .306 | Zinc-Plated | 5000 | 3:1 | 15000 | .487 lbs | 80/crate | $2.61 | 3-4 | 6-1-8 | zinc-plated | 5000 | |||
| FI12418SLSS | 1/2 | 13 | 1-3/8 | 4-1/8 | .223 | Stainless Steel | 3000 | 3:1 | 9000 | .216 lbs | 300/crate | $5.52 | 1-2 | 4-1-8 | stainless-steel | 3000 | |||
| FI12618SLSS | 1/2 | 13 | 1-1/4 | 6-1/8 | .306 | Stainless Steel | 5000 | 3:1 | 15000 | .405 lbs | 150/crate | $8.25 | 1-2 | 6-1-8 | stainless-steel | 5000 | |||
| FI34418SLSS | 3/4 | 10 | 1-5/8 | 4-1/8 | .223 | Stainless Steel | 3000 | 3:1 | 9000 | .286 lbs | 30/crate | $6.45 | 3-4 | 4-1-8 | stainless-steel | 3000 | |||
| FI34618SLSS | 3/4 | 10 | 1-5/8 | 6-1/8 | .306 | Stainless Steel | 5000 | 3:1 | 15000 | .487 lbs | 80/crate | $8.89 | 3-4 | 6-1-8 | stainless-steel | 5000 |
