Top Grates Flat for Box Culverts

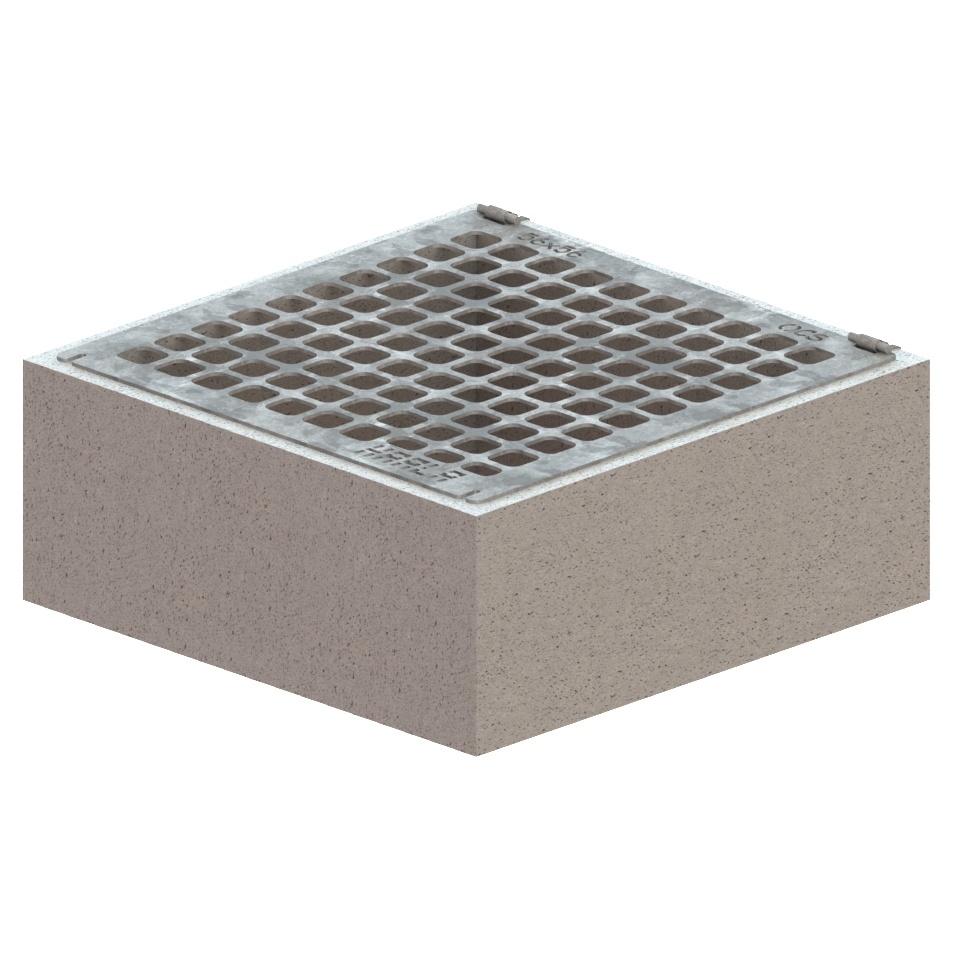

Flat Top Box Grates are designed to mount on top of box culvert inlet or outlet structures to keep debris from entering the storm water system. Works well where some pedestrian traffic is expected and can be secured to limit access. Hinges are mounted to one side of the concrete structure to allow the entire grate to open and gain full access to the structure.

  • Clean and durable plate style design

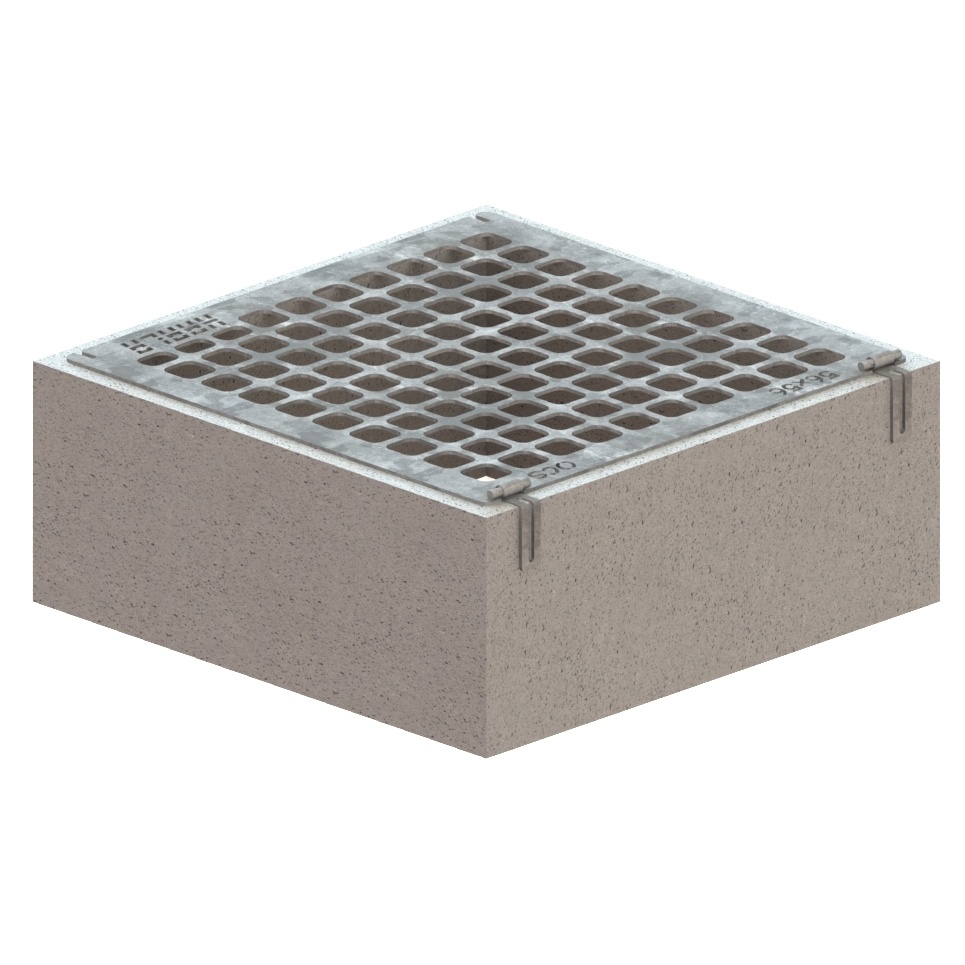

  • Full access side hinge
  • Galvanized steel construction. Can be made from aluminum or stainless steel.

Top Grates Flat for Box Culverts

Part NumberBox IDGrate ODPlate ThicknessOpening WebOpen AreaEquivalent Perimeterhf:att:pa_box-idhf:att:pa_grate-odhf:att:pa_plate-thickness
MC30X3024"x24"30"x30"3/8"4"2.69235.39"
Each
Add to Quote
24x2430x303-8
MC30X30H24"x24"30"x30"3/8"4"2.69235.39"
Each
Add to Quote
24x2430x303-8
MC42X4236"x36"42"x42"3/8"4"5.15342.79"
Each
Add to Quote
36x3642x423-8
MC56x4448"x36"56"x44"3/8"4"7.36428.49"
Each
Add to Quote
48x3656x443-8
MC56X5648"x48"56"x56"3/8"4"10.4506.05"
Each
Add to Quote
48x4856x563-8
MC56x56-248"x48"56"x56"3/8"4"8.36485.92"
Each
Add to Quote
48x4856x563-8
MC68X6860"x60"68"x68"3/8"4"15618.63"
Each
Add to Quote
60x6068x683-8
MC80X8072"x72"80"x80"3/8"4"22.62873.72
Each
Add to Quote
72x7280x803-8
