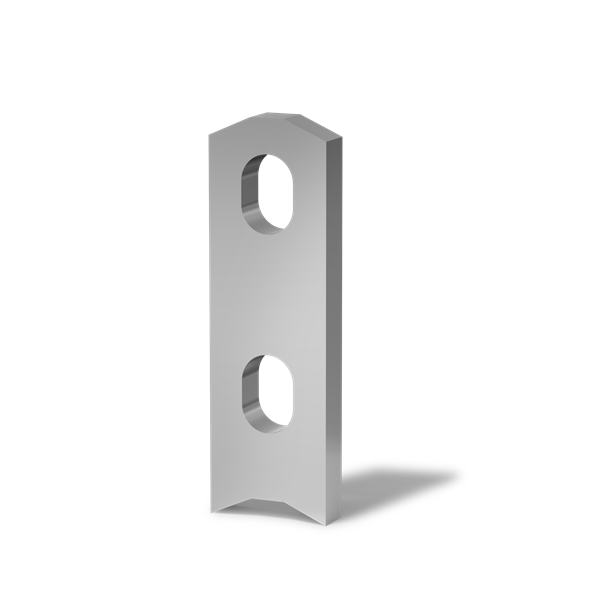

Our Two-Hole Anchor is a low-profile insert optimized for stripping and handling of panels where spread-type anchors cannot be used. When used with a tension bar, the anchor can achieve high tension loads in low compressive strength, thin precast panels. The anchor may cause spalling when pulling in shear parallel to the face of the anchor therefore shear loads should be applied perpendicular to the face of the anchor at the center of the recess.
Two-Hole Anchors
Two-Hole Anchors
Part Number | Safe Working Load | Safety Factor | Overall Length | Width | Thickness | Size | Lifting Clutch | Recess Former | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PL2HA2T | 4000 | 4:1 | 4 | 1-1/4 | 3/8 | 2T | PLRC23T | PLRM2 | 16000 | .45 lbs | 5000/crate | $1.11 | |
PL2HA4T | 8000 | 4:1 | 5-1/2 | 1-1/2 | 5/8 | 4T | PLRC46T | PLRM46 | 32000 | 1.14 lbs | 1800/crate | $2.55 | |
PL2HA8T | 16000 | 4:1 | 7 | 2-1/2 | 3/4 | 8T | PLRC811T | PLRM811 | 64000 | 3.15 lbs | 500/crate | $6.55 |
