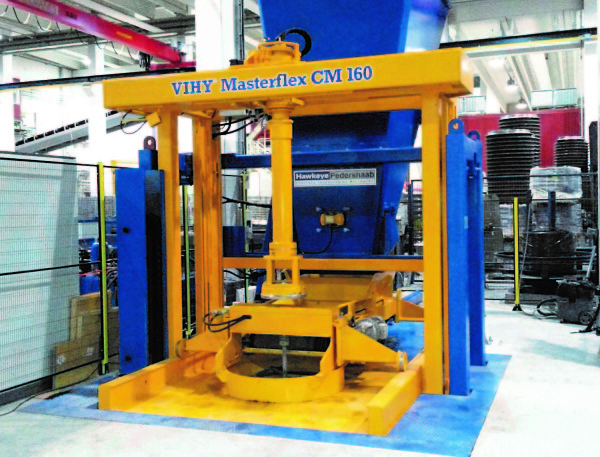

VIHY Masterflex 160

Afinitas understands the space constraints many concrete factories face. With that in mind, our HawkeyePedershaab VIHY Masterflex was developed to operate in an extremely compact footprint and fit into the tightest of building configurations. Another benefit of Masterflex is that the system covers dimension ranges typically not found in competitive machinery and enables the production of small-diameter concrete pipes as well as branch pipes and gulley pots.

Concrete Products



The Masterflex machine is ideally suited to produce:

Capacity

Depending on the dimension of the products being manufactured, the VIHY Masterflex machine can achieve up to 20 cycles per hour and is capable of producing up to 50,000 tons of concrete pipes per year in single shift operation.

Models

  • Masterflex CP 120
  • Masterflex CP 160
  • Masterflex CM 160
  • Masterflex CM 200
HawkeyePedershaab VIHY MasterflexMasterflex CP 120Masterflex CP 160Masterflex CM 160Masterflex CM 200
Product Dimensions300mm to 1200mm diameter (12" to 48" diameter)300mm to 1600mm diameter (12" to 65" diameter)300mm to 1600mm diameter (12" to 65" diameter) 300mm to 2000mm diameter (12" to 78" diameter)
Product Lengths2,5m (8')2,5m (8')1,2m (4')1,2m (4')

VIHY Masterflex Machine Key Advantages

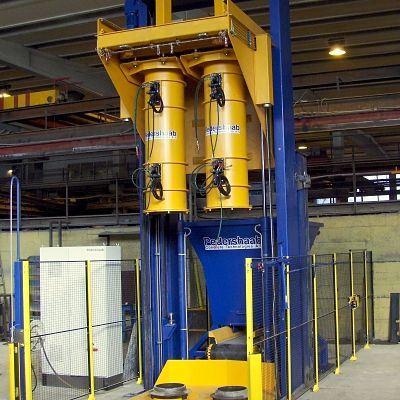

Full Automation Optimizes Labor

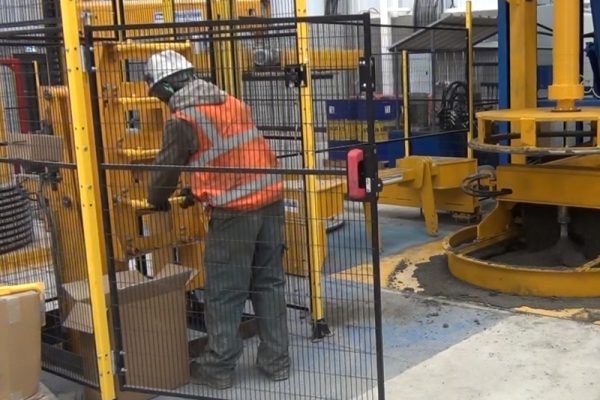

The VIHY Masterflex machine is designed to run fully automatically. Therefore, the machine operator can perform other tasks around the machine during the production cycle, such as preparing pallet rings for the next cycle and placing set rings on the products from the previous cycle. The result is a high level of productivity using less labor.

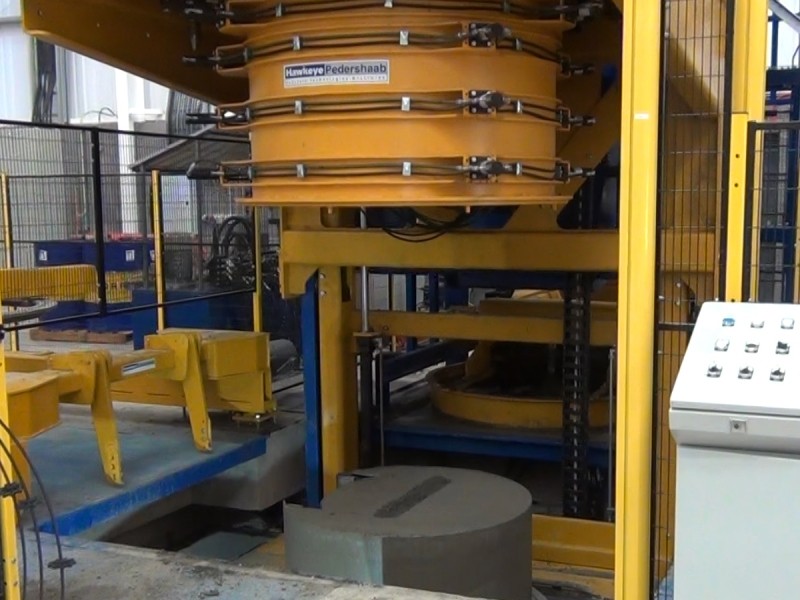

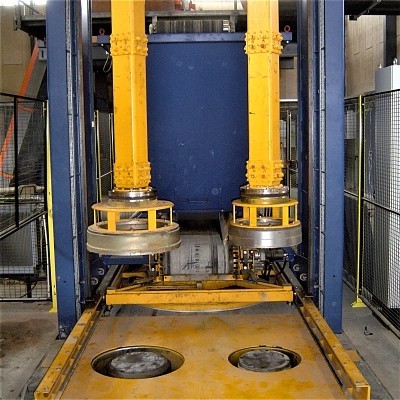

Masterflex core vibration system

Unmatched Speed and Power

Masterflex is equipped with synchronized core vibrators. The design of this vibrator with oil-lubricated bearings and its precision-engineering allows for high output. This results in the highest possible compaction with a minimum of cement consumption – even in very adverse production environments.

Masterflex concrete distributor

Reliable Concrete Distribution

Masterflex uses a rotary distributor where concrete is automatically fed and spread evenly into the mold cavity. The filling process is guided by sensors that automatically shut down when the mold is full.

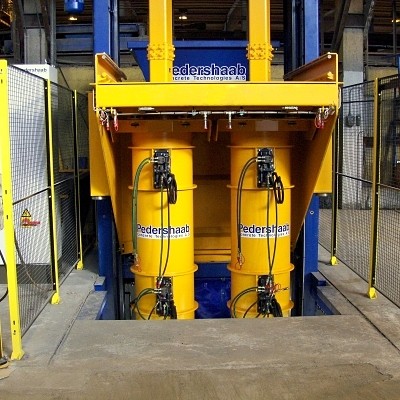

Masterflex In-Machine Demolding

In-Machine Demolding Reduces Costs

With Masterflex, the manufacture of the concrete products is done below ground in a pit. When the filling, compaction and spigot-forming processes are completed, Masterflex automatically demolds the product and lifts it up to the floor level ready for removal by a product cart or a forklift truck.  Another benefit of Masterflex is that no overhead crane is needed, minimizing plant space and reducing capital costs.

Masterflex Resources

VIHY Masterflex offers versatile drycast concrete production

Download Brochure

Masterflex Production of DN 400 x 2500 mmm non-reinforced pipe

Watch Video

VIHY Masterflex CM160

Watch Video

Watch a complete VIHY Masterflex production cycle

Download Video

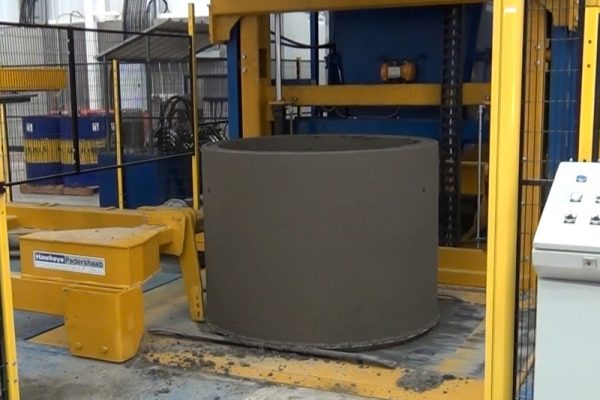

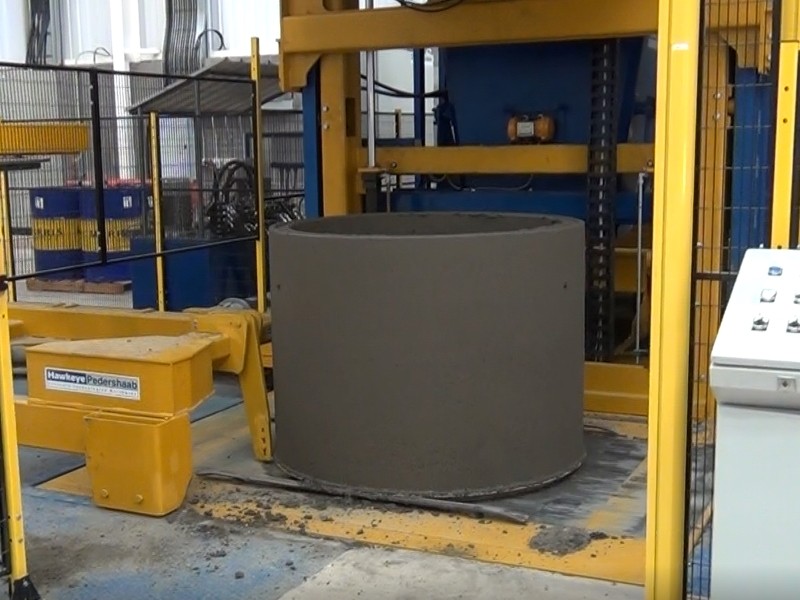

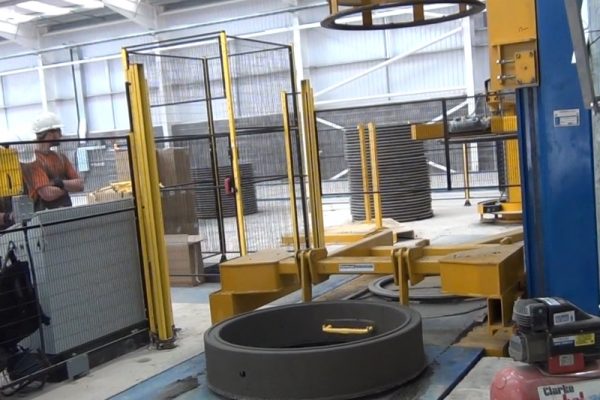

See Masterflex's push out and ring loading in action

Download Video

VIHY Masterflex SC 120

Watch Video
