The Insulated Panel Anchor is designed to be used for erection of insulated sandwich panels. The unique design utilizes two bent shear bars extending through the anchor that distribute loads evenly to both concrete wythes, while minimizing the loss of insulation.

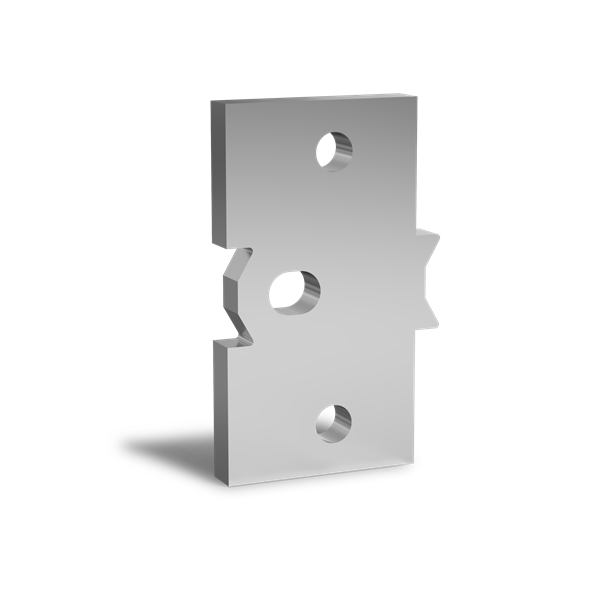

Insulated Panel Anchor
Insulated Panel Anchors
Insulated Panel Anchors
| Part Number | Safe Working Load | Safety Factor | Bar Hole Distribution | Hole Diameter | Overall Length | Width | Thickness | Shear Plate Length | Shear Plate Thickness | Shear Plate Width | Size | Lifting Clutch | Recess Former | Ult. Mech. Load | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_safe-working-load | hf:att:pa_overall-length | hf:att:pa_size | hf:att:pa_ult-mech-load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLIPA4T | 8000 | 4:1 | 4-3/8 | 1-13/16 | 3-1/4 | 6 | 5/8 | N/A | N/A | N/A | 4T | PLRC46T | PLRM46 | 32000 | 3.31 lbs | 650/crate | $7.07 | 8000 | 3-1-4 | 4t | 32000 | |
| PLIPA8T | 16000 | 4:1 | 4-3/8 | 3-3/8 | 4-3/4 | 6 | 3/4 | N/A | N/A | N/A | 8T | PLRC811T | PLRM811 | 64000 | 5.76 lbs | 350/crate | $10.49 | 16000 | 4-3-4 | 8t | 64000 | |
| PLIPA10T7 | 20000 | 4:1 | 5 | 3-3/8 | 4-3/4 | 7 | 3/4 | N/A | N/A | N/A | 10T | PLRC811T | PLRM811 | 80000 | 7.22 lbs | 320/crate | $22.25 | 20000 | 4-3-4 | 10t | 80000 | |
| PLIPA10T8 | 20000 | 4:1 | 6 | 3-3/8 | 4-3/4 | 8 | 3/4 | N/A | N/A | N/A | 10T | PLRC811T | PLRM811 | 80000 | 8.14 lbs | 230/crate | $23.29 | 20000 | 4-3-4 | 10t | 80000 | |
| PLIPA8TSP | 16000 | 4:1 | 4-3/8 | 3-3/8 | 4-3/4 | 6 | 3/4 | 3 | 3/8 | 3-1/2 | 8T | PLRC811T | PLRM811 | 64000 | 7.12 lbs | 350/crate | $13.79 | 16000 | 4-3-4 | 8t | 64000 | |
| PLIPA10T7SP | 20000 | 4:1 | 5 | 3-3/8 | 4-3/4 | 7 | 3/4 | 3 | 3/8 | 8 | 10T | PLRC811T | PLRM811 | 80000 | 9.77 lbs | 280/crate | $26.39 | 20000 | 4-3-4 | 10t | 80000 | |
| PLIPA10T8SP | 20000 | 4:1 | 6 | 3-3/8 | 4-3/4 | 8 | 3/4 | 3 | 3/8 | 8 | 10T | PLRC811T | PLRM811 | 80000 | 10.98 lbs | 220/crate | $29.45 | 20000 | 4-3-4 | 10t | 80000 |
