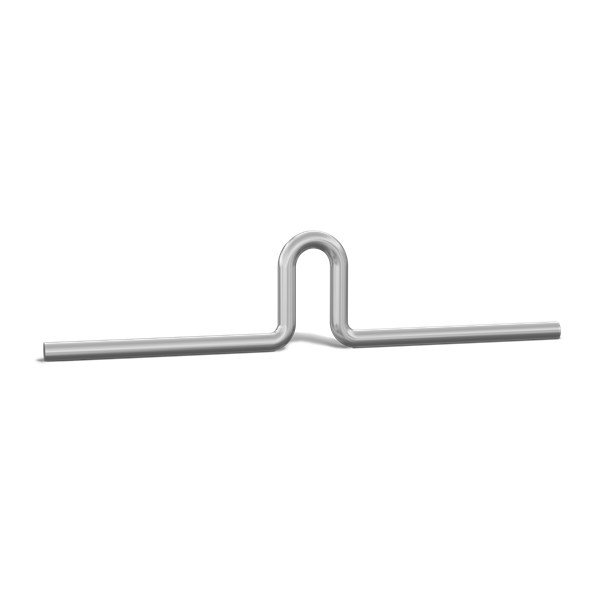

Shear Bars are used in conjunction with standard anchors/lifters to increase the shear capacity, typically in thin panel applications. The Shear Bar will fit over the anchor and sit tightly against it. The addition of the Shear Bar allows for shear loads to transfer deeper into the slab to both increase capacity and reduce or prevent spalling.
Shear Bar
Shear Bars
Shear Bars
| Part Number | Diameter (in.) | Finish | Height (in.) | Length | Size | Item Wt./ea. | Box/Skid | Price (Each) | hf:att:pa_finish | hf:att:pa_height | hf:att:pa_size | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLSB23T | 1/2 | 14-3/4 | 2-3T | .95 lbs. | 10/1500 | $1.98 | 2-3t | |||||
| PLSB46T | 1/2 | 14-3/4 | 4-6T | 1.06 lbs | 10/2000 | $0.00 | 4-6t | |||||
| PLSB811T | 1/2 | 14-3/4 | 8-11T | 1.24 lbs | 5/1100 | $0.00 | 8-11t |
